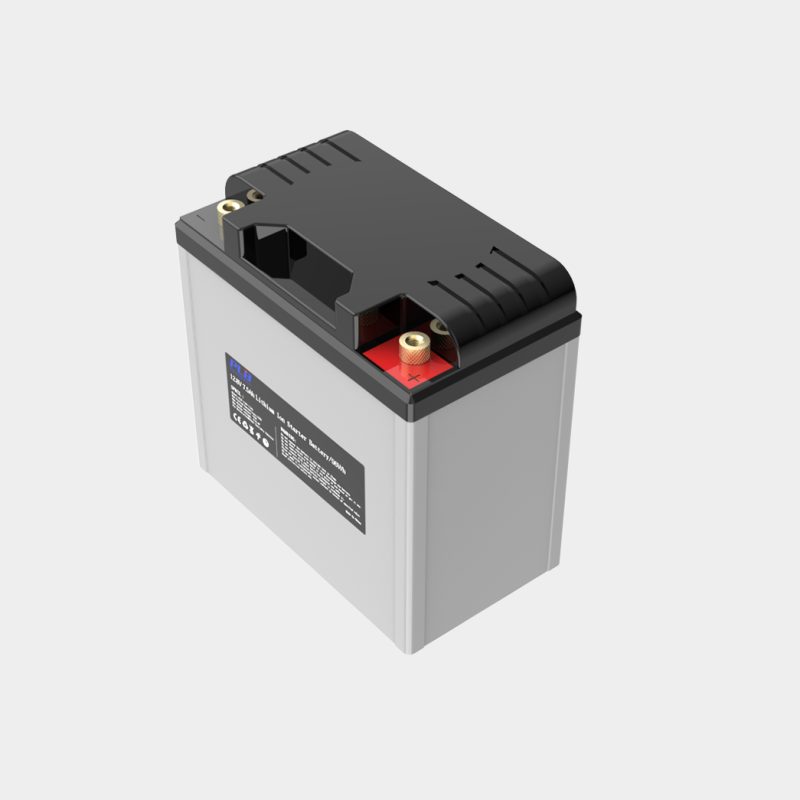

12.8V 15Ah 4S6P Starting Battery
  • 12.8V 15Ah 4S6P Starting Battery
  • 12.8V 15Ah 4S6P Starting Battery
  • 12.8V 15Ah 4S6P Starting Battery
Electrical Specifications
Nominal Voltage12.8V
Nominal Capacity15Ah
Energy192Wh
Internal Resistance≤15mΩ
Self Discharge≤1% Per Month
Series and Parallel/
Mechanical Specifications
Dimensions (L x W x H)160*136*85MM
Weight2.8Kg
Terminal/
Case MaterialPVC
IP RatingIP42
Cells26650 – LiFePO4
Discharge Specification
Max Continuous Discharge Current30A
Max Instantaneous Discharge Current750A/5S
BMS Discharge Protection Current920A
Overdischarge Protection Voltage9.2V
Overdischarge Recovery Voltage10V
Short Circuit Protection600uS
Charge Specifications
Charge Current7.5A
Max Charge Current15A
Charge Voltage14.6V
Overcharge Protection Voltage15.4V
Overcharge Recovery Voltage14.6V
Equalization Turn-on Voltage14.6V
Temperature Specification
Discharge Temperature-20-60℃
Charge Temperature0-45℃
Storage Temperature-5-45℃
BMS Over Temperature Protection65±5℃
BMS Over Temperature Protection Recovery55±5℃
Communication
Communication /


Compliance Specification
Certification UN38.3

Charging Curves at Different Temperatures: 45°c, 25°c, 0°c

12.8V 15Ah 4S6P Starting Battery

Discharge curves at different temperatures: 60°C, 25°C, 0°C, -10°C

12.8V 15Ah 4S6P Starting Battery

Rate discharge curve

12.8V 15Ah 4S6P Starting Battery

Rate discharge temperature rise

12.8V 15Ah 4S6P Starting Battery
