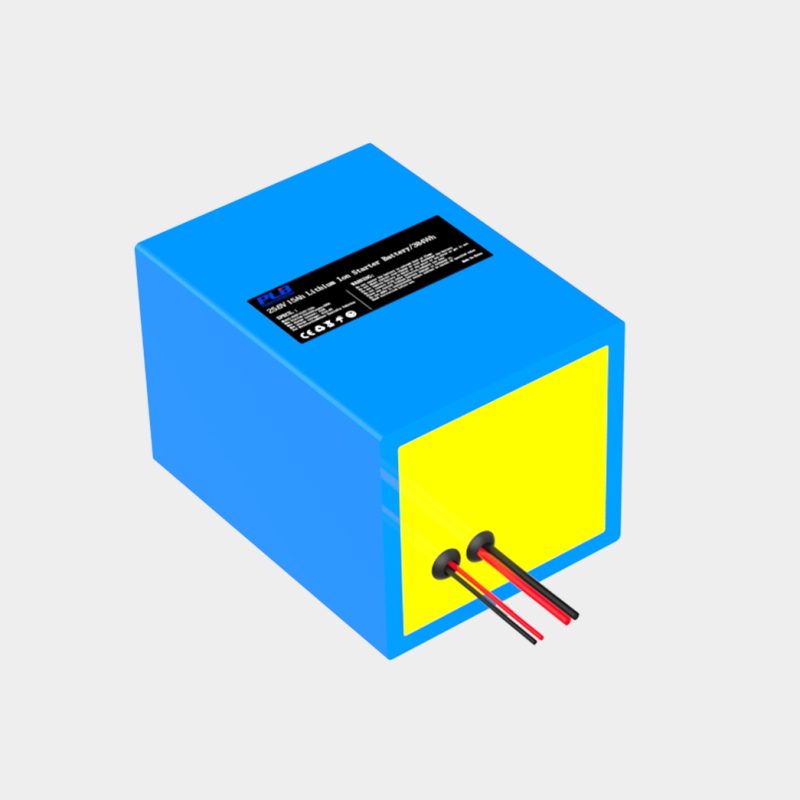

25.6V 15Ah 8S6P Starting Battery
  • 25.6V 15Ah 8S6P Starting Battery
  • 25.6V 15Ah 8S6P Starting Battery
  • 25.6V 15Ah 8S6P Starting Battery
Electrical Specifications
Nominal Voltage25.6V
Nominal Capacity15Ah
Energy384Wh
Internal Resistance≤35mΩ
Self Discharge≤1% Per Month
Series and Parallel/
Mechanical Specifications
Dimensions (L x W x H)140*190*130MM
Weight5.1Kg
TerminalCopper Pillar
Case MaterialPVC
IP RatingIP42IP42
Cells26650 – LiFePO4
Discharge Specification
Max Continuous Discharge Current 100A
Max Instantaneous Discharge Current 1000A/3S
BMS Discharge Protection Current 1200A
Overdischarge Protection Voltage 8.8V
Overdischarge Recovery Voltage 10.8V
Short Circuit Protection 600uS
Charge Specifications
Charge Current15A
Max Charge Current30A
Charge Voltage14.6V
Overcharge Protection Voltage15V
Overcharge Recovery Voltage14.2V
Equalization Turn-on Voltage14.2V
Temperature Specification
Discharge Temperature-20-60℃
Charge Temperature0-45℃
Storage Temperature-5-45℃
BMS Over Temperature Protection65±5℃
BMS Over Temperature Protection Recovery55±5℃
Communication
Communication /


Compliance Specification
Certification UN38.3

Charging Curves at Different Temperatures: 45°c, 25°c, 0°c

25.6V 15Ah 8S6P Starting Battery

Discharge curves at different temperatures: 60°C, 25°C, 0°C, -10°C

25.6V 15Ah 8S6P Starting Battery

Rate discharge curve

25.6V 15Ah 8S6P Starting Battery

Rate discharge temperature rise

25.6V 15Ah 8S6P Starting Battery
