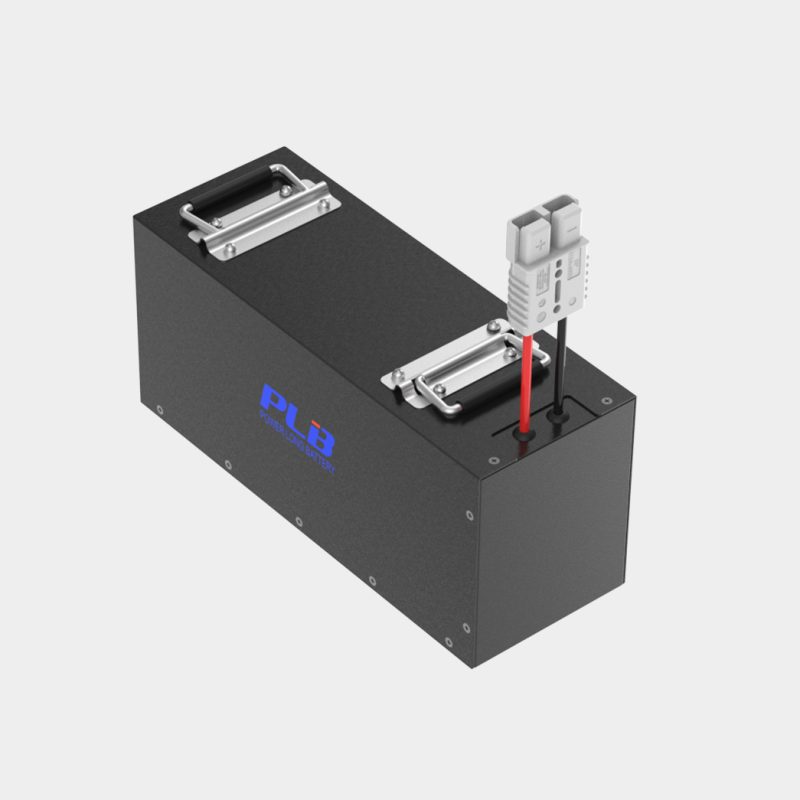

48V 30AH 14S6P AGV Battery
  • 48V 30AH 14S6P AGV Battery
  • 48V 30AH 14S6P AGV Battery
  • 48V 30AH 14S6P AGV Battery
Electrical Specifications
Nominal Voltage48V
Nominal Voltage30Ah
Energy1440wh
Internal Resistance≤80mΩ
Self Discharge<1% Per Month
Series and Parallel/
Mechanical Specifications
Dimensions (L x W x H)380*140*170mm
Weight13KG
TerminalAnderson SB175
Case MaterialSPCC
IP RatingIP42
Cells26650 – LiFePO4
Discharge Specification
Max Continuous Discharge Current30A
Max Instantaneous Discharge Current/
BMS Discharge Protection Current120A
Overdischarge Protection Voltage39.2V
Overdischarge Recovery Voltage40.6V
Short Circuit Protection800uS
Charge Specifications
Charge Current15A
Max Charge Current30A
Charge Voltage58.8V
Overcharge Protection Voltage59.5V
Overcharge Recovery Voltage57.4V
Equalization Turn-on Voltage58.8V
Temperature Specification
Discharge Temperature-20-60℃
Charge Temperature0-45℃
Storage Temperature-5-45℃
BMS Over Temperature Protection65±5℃
BMS Over Temperature Protection Recovery55±5℃
Communication
CommunicationRS485


Compliance Specification
Certification/

Charging SOC curve

48V 30AH 14S6P AGV Battery

Discharge SOC curve

48V 30AH 14S6P AGV Battery

30A charging current curve

48V 30AH 14S6P AGV Battery

40A discharge current curve

48V 30AH 14S6P AGV Battery

Different DOD cycle life diagram(+1C/-0.5C@25℃)

48V 30AH 14S6P AGV Battery

2D Drawing

2D Drawing
