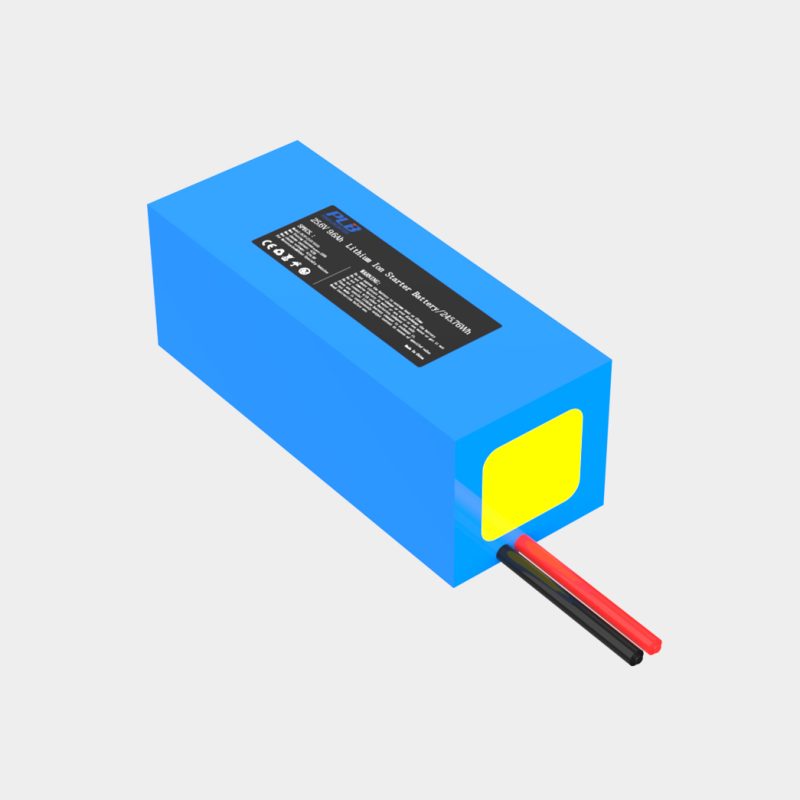

25.6V 9.6AH 8S3P Off-grid Solar Battery
  • 25.6V 9.6AH 8S3P Off-grid Solar Battery
  • 25.6V 9.6AH 8S3P Off-grid Solar Battery
  • 25.6V 9.6AH 8S3P Off-grid Solar Battery
Electrical Specifications
Nominal Voltage25.6V
Nominal Voltage9.9Ah
Energy253.44Wh
Internal Resistance≤80mΩ
Self Discharge<1% Per Month
Series and Parallel/
Mechanical Specifications
Dimensions (L x W x H)215*84*79MM
Weight2.6KG
TerminalLeader
Case MaterialPVC
IP Rating/
Cells26650 – LiFePO4
Discharge Specification
Max Continuous Discharge Current20A
Max Instantaneous Discharge Current/
BMS Discharge Protection Current65A
Overdischarge Protection Voltage17.6V
Overdischarge Recovery Voltage18.4V
Short Circuit Protection500uS
Charge Specifications
Charge Current1.98A
Max Charge Current10A
Charge Voltage29.2V
Overcharge Protection Voltage31.2V
Overcharge Recovery Voltage30.4V
Equalization Turn-on Voltage/
Temperature Specification
Discharge Temperature-20-60℃
Charge Temperature10-55℃
Storage Temperature-40 ~85℃
BMS Over Temperature Protection65±5℃
BMS Over Temperature Protection Recovery55±5℃
Communication
Communication/


Compliance Specification
CertificationUN38.3

Graph of maximum current discharge at different temperatures

25.6V 9.6AH 8S3P Off-grid Solar Battery

Graph of 1C charging at different temperatures

25.6V 9.6AH 8S3P Off-grid Solar Battery

Cycle life diagram of 0.5C charging and 1C discharging at 25 ℃ for different DODs

25.6V 9.6AH 8S3P Off-grid Solar Battery

2D Drawing
