Product Features:
- Strong Compatibility: The casing has the same dimensions as equivalent lead-acid battery products, allowing easy replacement.
- High Safety: BMS with multiple protection functions, including overcharge, over-discharge, over-temperature, over-current, and short-circuit protection, ensuring safe and reliable operation.
- High-Rate Discharge: Supports ultra-high-rate discharge up to 20C, meeting the needs of most operating environments.
- Long Float Charge: Designed for extended float charging, enabling the battery pack to remain in float charge mode for long durations.
- Lightweight: About one-third the weight of a lead-acid battery of the same capacity.
- Long Service Life: Lasts 4–5 times longer than lead-acid batteries, with no memory effect and a calendar life exceeding 10 years.
- Capacity Expansion: Supports multiple battery packs in series or parallel to scale UPS capacity.
Specification:

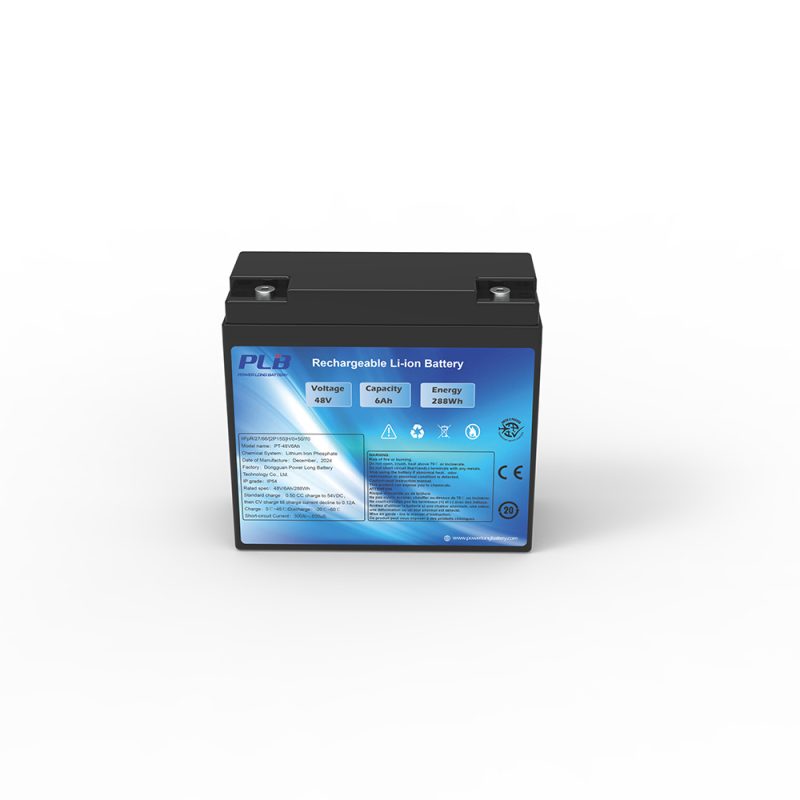

| Specifications | PT-48V6Ah |
| Nominal Voltage | 48V |
| Battery Capacity | 6Ah |
| Operating Voltage | 40V~57.6V |
| Maximum charge Current | 6A |
| Maximum Continuous Discharge Current | 45A |
| Maximum Instantaneous Discharge Current | 60A@5S |
| Cell Material | Lithium Iron Phosphate (10C/20C Discharge Rate) |
| Design Life | 11years |
| Protection Rating | IP54 |
| Charging Temperature Range | 0～45℃ |
| Discharging Temperature Range | -20～60℃ |
| Support for Module Parallel Connection | 8P |
| Dimensions | 181*77*167mm |
| Weight | 3.4KG |
| Compliance Standards | UL1973、IEC62619、UN38.3 |
