Product Features:
High Safety: Passed national standard nail penetration test; built-in BMS with high-temperature protection, low-temperature protection, short-circuit protection, over-voltage protection, and under-voltage protection.
Eco-Friendly: Lithium batteries contain no lead and no risk of acid leakage; environmentally friendly production and recycling process.
High Energy Density: With the same capacity, the volume and weight are only 30%–50% of lead-acid batteries, offering longer endurance.
Long Cycle Life: Service life of 5–10 years, 3–5 times that of lead-acid, reducing replacement frequency and cost.
Fast Charging: Significantly reduced charging time, supports charge-as-you-go, improving equipment utilization.
Wide Temperature Adaptability: Stable performance in extreme environments (-20℃ to 60℃).

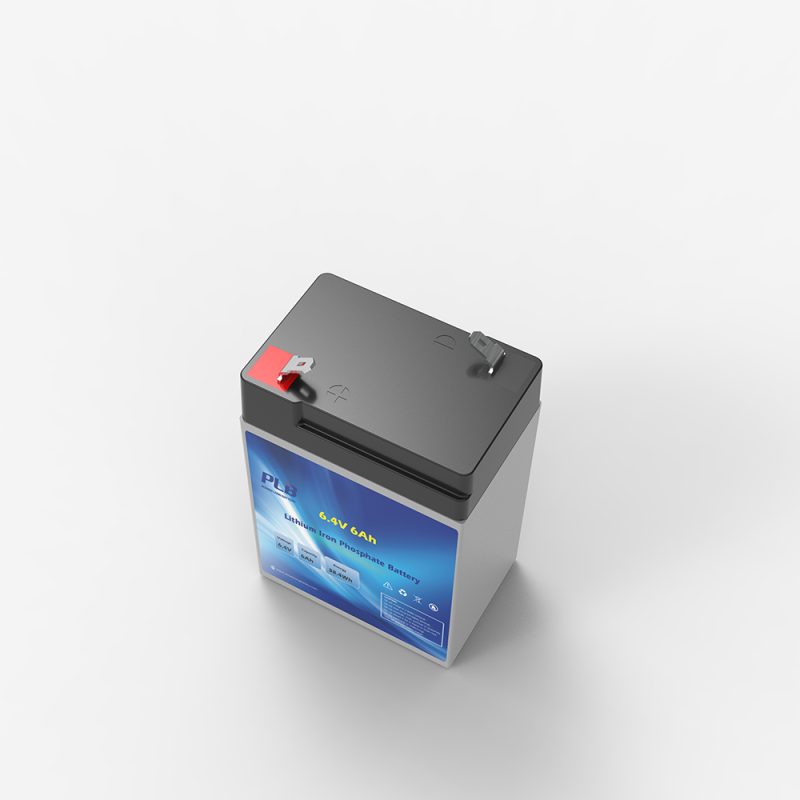

| Model | PD-0606 |
| Rated Voltage | 6.4V |
| Battery Capacity | 6Ah |
| Operating Voltage | 5~7.3V |
| Series / Parallel | 2S1P |
| Maximum Overcurrent | 10A |
| Cell Type | LiFePO4 |
| Weight (Kg) | 0.48 |
| Dimensions | 70*48*101 |
| Charging Temperature | 0℃ ~ 60℃ |
| Discharging Temperature | -20℃ ~ 60℃ |
| Waterproof Rating | IP54 |
| Module Series / Parallel | / |
| Compliance Standards | UN38.3 |
