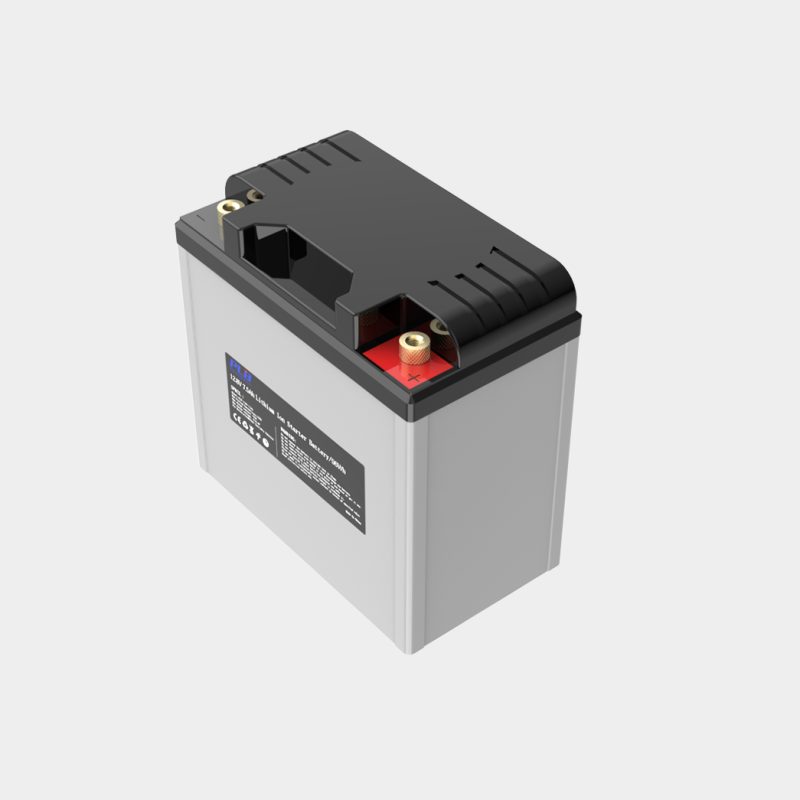

12.8V 30Ah 4S12P Starting Battery
  • 12.8V 30Ah 4S12P Starting Battery
  • 12.8V 30Ah 4S12P Starting Battery
  • 12.8V 30Ah 4S12P Starting Battery
Electrical Specifications
Nominal Voltage 12.8V
Nominal Voltage 30Ah
Energy 384Wh
Internal Resistance ≤10mΩ
Self Discharge ≤1% Per Month
Series and Parallel /
Mechanical Specifications
Dimensions (L x W x H) 280*175*188mm
Weight 7Kg
Terminal Copper Pillar
Case Material PC+ABS
IP Rating IP54
Cells 26650 – LiFePO4
Discharge Specification
Max Continuous Discharge Current 100A
Max Instantaneous Discharge Current 1000A/3S
BMS Discharge Protection Current 1200A
Overdischarge Protection Voltage 8.8V
Overdischarge Recovery Voltage 10.8V
Short Circuit Protection 600uS
Charge Specifications
Charge Current 15A
Max Charge Current 30A
Charge Voltage 14.6V
Overcharge Protection Voltage 15V
Overcharge Recovery Voltage 14.2V
Equalization Turn-on Voltage 14.2V
Temperature Specification
Discharge Temperature-20-60℃
Charge Temperature0-45℃
Storage Temperature-5-45℃
BMS Over Temperature Protection65±5℃
BMS Over Temperature Protection Recovery55±5℃
Communication
Communication /


Compliance Specification
Certification UN38.3

Charging Curves at Different Temperatures: 45°c, 25°c, 0°c

12.8V 30Ah 4S12P Starting Battery

Discharge curves at different temperatures: 60°C, 25°C, 0°C, -10°C

12.8V 30Ah 4S12P Starting Battery

Rate discharge curve

12.8V 30Ah 4S12P Starting Battery

Rate Discharge Temperature Rise

12.8V 30Ah 4S12P Starting Battery

2D Drawing

12.8V 30Ah 4S12P Starting Battery
