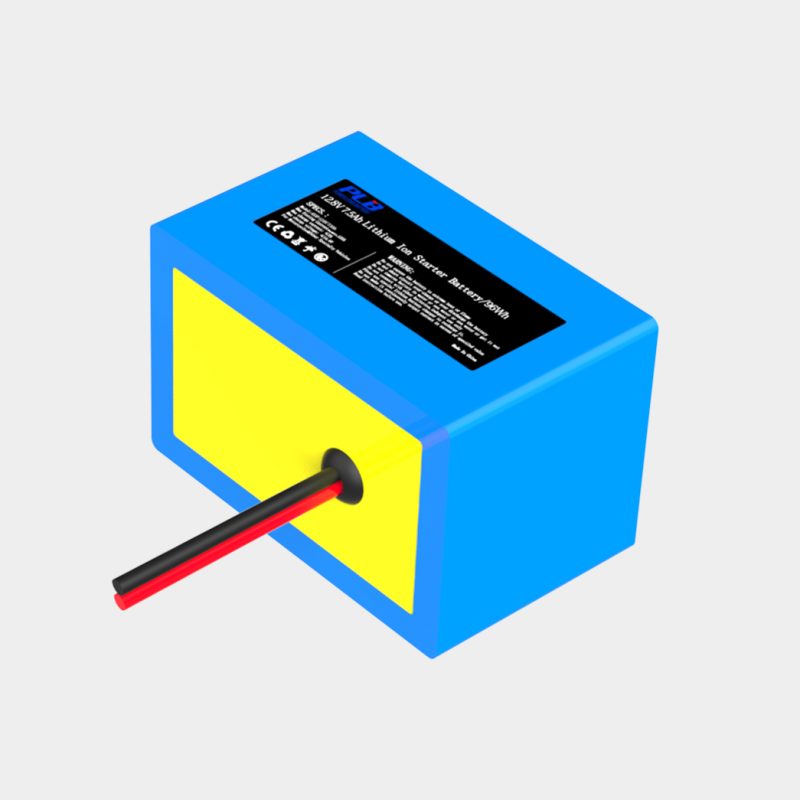

12.8V 7.5Ah 4S3P Starting Battery
  • 12.8V 7.5Ah 4S3P Starting Battery
  • 12.8V 7.5Ah 4S3P Starting Battery
  • 12.8V 7.5Ah 4S3P Starting Battery
Electrical Specifications
Nominal Voltage12.8V
Nominal Capacity7.5Ah
Energy96Wh
Internal Resistance≤20mΩ
Self Discharge≤1% Per Month
Series and Parallel/
Mechanical Specifications
Dimensions (L x W x H)137*135*77MM
Weight1.43Kg
TerminalM5 mut
Case MaterialPC+ABS
IP RatingIP42
Cells26650 – LiFePO4
Discharge Specification
Max Continuous Discharge Current15A
Max Instantaneous Discharge Current350A/5S
BMS Discharge Protection Current/
Overdischarge Protection Voltage8.8V
Overdischarge Recovery Voltage10.8V
Short Circuit Protection600uS
Charge Specifications
Charge Current3.75A
Max Charge Current7A
Charge Voltage14.6V
Overcharge Protection Voltage15.6V
Overcharge Recovery Voltage14.4V
Equalization Turn-on Voltage14.4V
Temperature Specification
Discharge Temperature-20-60℃
Charge Temperature0-45℃
Storage Temperature-5-45℃
BMS Over Temperature Protection65±5℃
BMS Over Temperature Protection Recovery55±5℃
Communication
Communication /


Compliance Specification
Certification UN38.3

Charging Curves at Different Temperatures: 45°c, 25°c, 0°c

12.8V 7.5Ah 4S3P Starting Battery

Discharge curves at different temperatures: 60°C, 25°C, 0°C, -10°C

12.8V 7.5Ah 4S3P Starting Battery

Rate discharge curve

12.8V 7.5Ah 4S3P Starting Battery

Rate discharge temperature rise

12.8V 7.5Ah 4S3P Starting Battery
