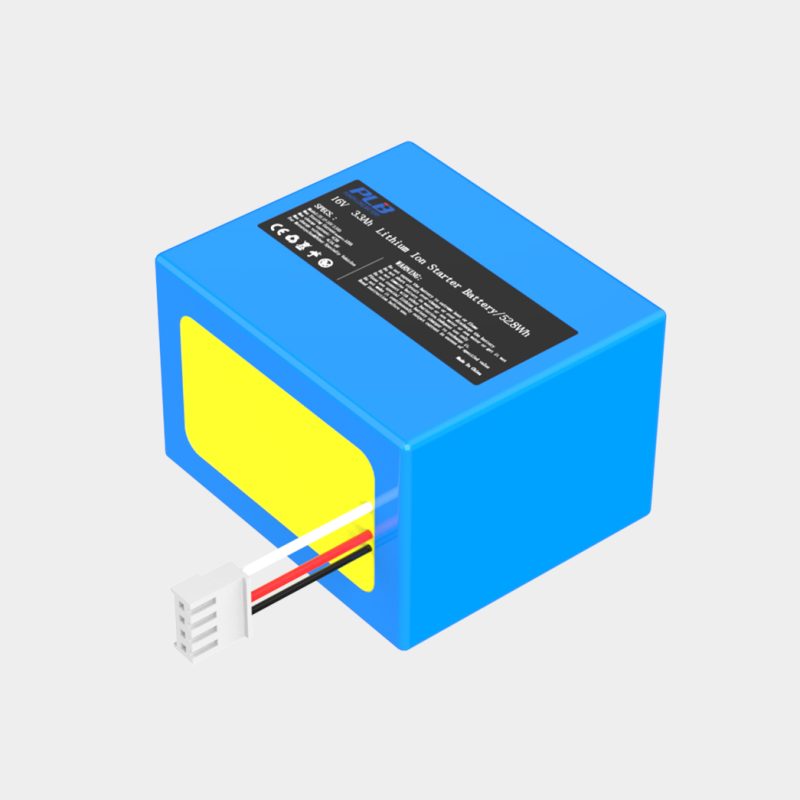

16V 3.3Ah 5S1P Off-grid Solar Battery
  • 16V 3.3Ah 5S1P Off-grid Solar Battery
  • 16V 3.3Ah 5S1P Off-grid Solar Battery
  • 16V 3.3Ah 5S1P Off-grid Solar Battery
Electrical Specifications
Nominal Voltage16V
Nominal Voltage3.3Ah
Energy52.8Wh
Internal Resistance≤160mΩ
Self Discharge<1% Per Month
Series and Parallel/
Mechanical Specifications
Dimensions (L x W x H)82*69.5*54.5MM
Weight0.5KG
TerminalJST–VH3.96-4P
Case MaterialPVC
IP Rating/
Cells26650 – LiFePO4
Discharge Specification
Max Continuous Discharge Current5A
Max Instantaneous Discharge Current/
BMS Discharge Protection Current20A
Overdischarge Protection Voltage11V
Overdischarge Recovery Voltage13.5V
Short Circuit Protection500uS
Charge Specifications
Charge Current1.5A
Max Charge Current4.95A
Charge Voltage18.25V
Overcharge Protection Voltage18.75V
Overcharge Recovery Voltage17.75V
Equalization Turn-on Voltage17.5V
Temperature Specification
Discharge Temperature-20-60℃
Charge Temperature10-55℃
Storage Temperature-40 ~85℃
BMS Over Temperature Protection65±5℃
BMS Over Temperature Protection Recovery55±5℃
Communication
Communication/


Compliance Specification
CertificationUN38.3

Graph of maximum current discharge at different temperatures

16V 3.3Ah 5S1P Off-grid Solar Battery

Graph of 1C charging at different temperatures

16V 3.3Ah 5S1P Off-grid Solar Battery

Cycle life diagram of 0.5C charging and 1C discharging at 25 ℃ for different DODs

16V 3.3Ah 5S1P Off-grid Solar Battery

2D Drawing
