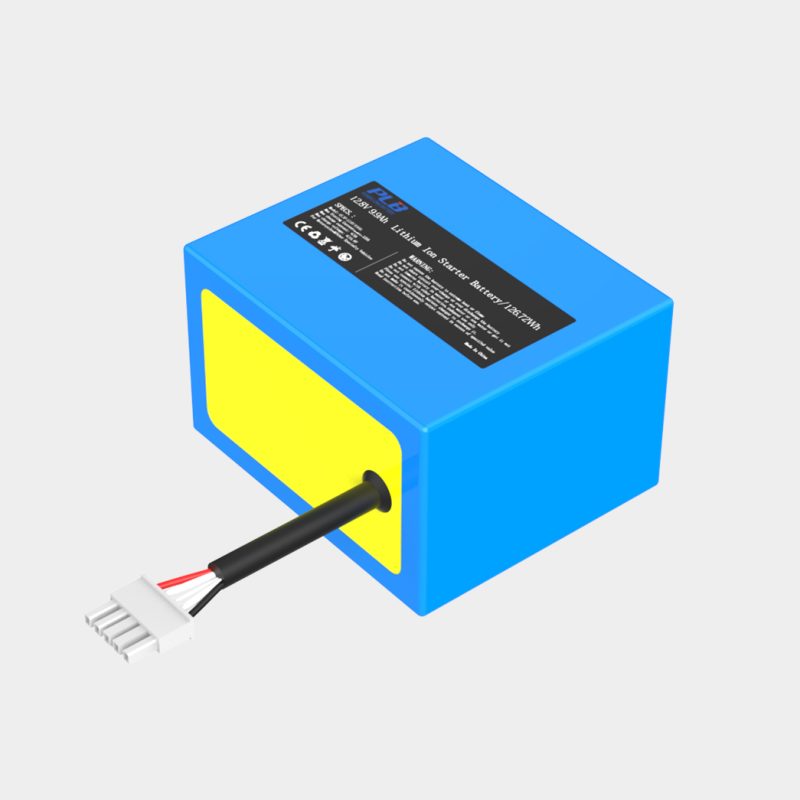

12.8V 9.9Ah 4S3P Off-grid Solar Battery
  • 12.8V 9.9Ah 4S3P Off-grid Solar Battery
  • 12.8V 9.9Ah 4S3P Off-grid Solar Battery
  • 12.8V 9.9Ah 4S3P Off-grid Solar Battery
Electrical Specifications
Nominal Voltage12.8V
Nominal Voltage9.9Ah
Energy126.72Wh
Internal Resistance≤70mΩ
Self Discharge<1% Per Month
Series and Parallel/
Mechanical Specifications
Dimensions (L x W x H)93*110*69MM
Weight1.2KG
TerminalMolex 39-01-4051-5P
Case MaterialPVC
IP Rating/
Cells26650 – LiFePO4
Discharge Specification
Max Continuous Discharge Current10A
Max Instantaneous Discharge Current/
BMS Discharge Protection Current15A
Overdischarge Protection Voltage8.4V
Overdischarge Recovery Voltage9.2V
Short Circuit Protection800uS
Charge Specifications
Charge Current1.98A
Max Charge Current10A
Charge Voltage14.6V
Overcharge Protection Voltage15V
Overcharge Recovery Voltage14.4V
Equalization Turn-on Voltage14.4V
Temperature Specification
Discharge Temperature-20-60℃
Charge Temperature10-55℃
Storage Temperature-40 ~85℃
BMS Over Temperature Protection65±5℃
BMS Over Temperature Protection Recovery55±5℃
Communication
Communication/


Compliance Specification
CertificationUN38.3

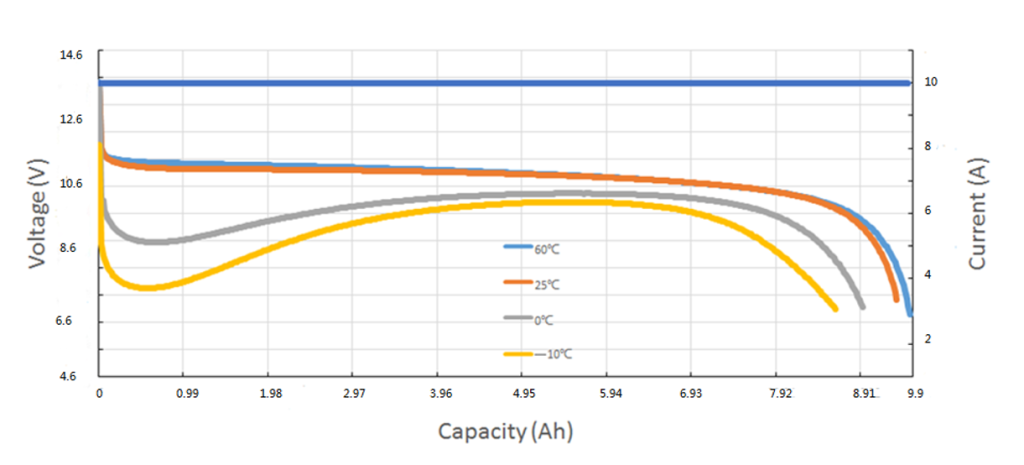

Graph of maximum current discharge at different temperatures

12.8V 9.9Ah 4S3P Off-grid Solar Battery

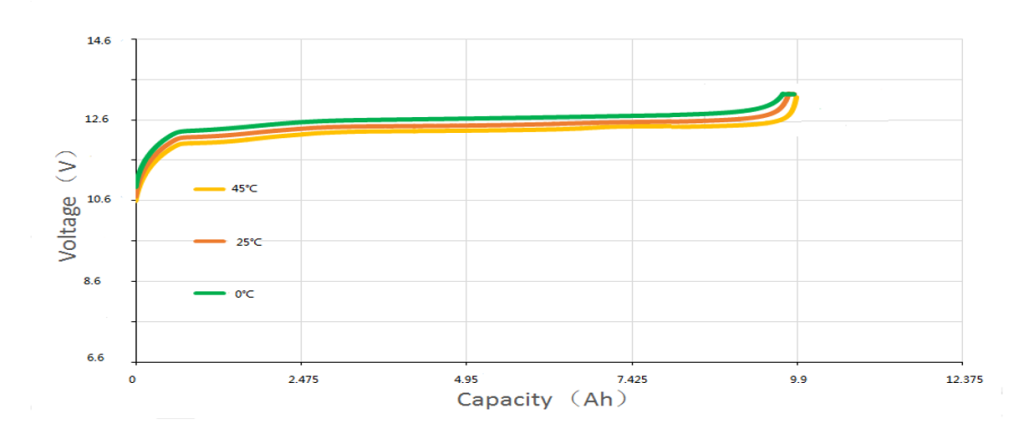

Graph of 1C charging at different temperatures

12.8V 9.9Ah 4S3P Off-grid Solar Battery

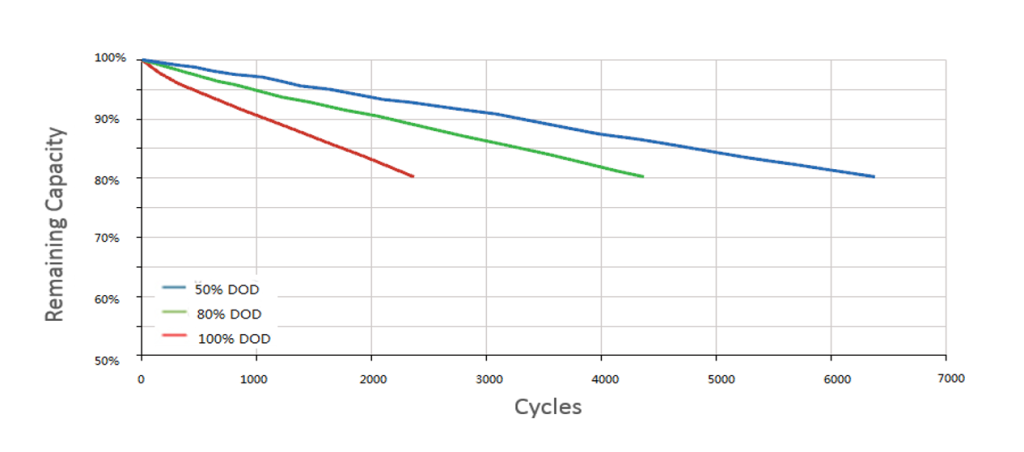

Cycle life diagram of 0.5C charging and 1C discharging at 25 ℃ for different DODs

12.8V 9.9Ah 4S3P Off-grid Solar Battery

2D Drawing

12.8V 9.9Ah 4S3P Off-grid Solar Battery
