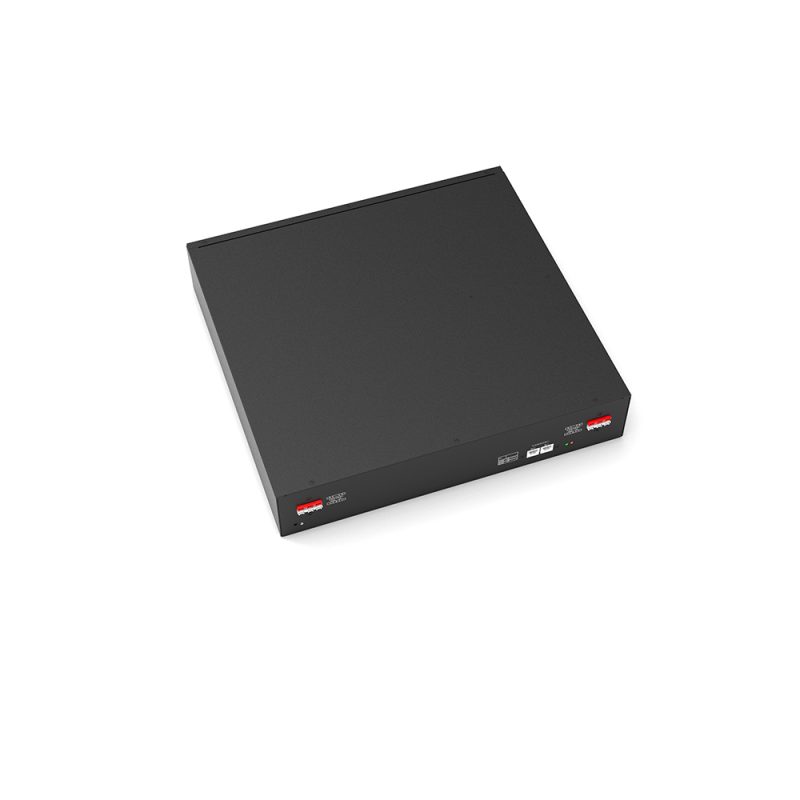

2U – 38.4V26.4Ah LiFePO4 Lithium Battery for 1–20KVA Rack-mounted UPS Systems
  • 2U – 38.4V26.4Ah LiFePO4 Lithium Battery for 1–20KVA Rack-mounted UPS Systems
  • 2U – 38.4V26.4Ah LiFePO4 Lithium Battery for 1–20KVA Rack-mounted UPS Systems
  • 2U – 38.4V26.4Ah LiFePO4 Lithium Battery for 1–20KVA Rack-mounted UPS Systems
  • 2U – 38.4V26.4Ah LiFePO4 Lithium Battery for 1–20KVA Rack-mounted UPS Systems
Product Features:

  • Strong Compatibility: Standard 19-inch 2U rack-mount design for easy replacement and capacity expansion.
  • High Safety: BMS with multiple protection mechanisms, including overcharge, over-discharge, over-temperature, over-current, and short-circuit protection, ensuring safe and reliable operation.
  • Long Float Charge: Designed for extended float charging, enabling the battery pack to remain in float charge mode for prolonged periods.
  • Flexible Configuration: Built with standard 26650 cells, allowing customization with different discharge rates and capacities to meet specific application requirements.
  • Lightweight: Approximately one-third the weight of a lead-acid battery.
  • Long Service Life: Provides 4–5 times the lifespan of lead-acid batteries, with no memory effect and a calendar life of over 10 years.
  • Capacity Expansion: Supports multiple battery packs in series or parallel for UPS capacity scaling.
  • Flexible Backup Time: A single module provides over 30 minutes of backup time, and parallel connection can extend runtime further.
SpecificationsPR2-38.4V26.4Ah
Nominal Voltage38.4V
Battery Capacity26.4Ah
Operating Voltage30V~43.2V
Maximum charge Current26A
Maximum Continuous Discharge Current60A
Maximum Instantaneous Discharge Current60A@10S
Cell MaterialLithium Iron Phosphate (5C/10C Discharge Rate)
Design Life11 years
Protection RatingIP21
Charging Temperature Range0~45℃
Discharging Temperature Range-20~60℃
Support for Module Parallel Connection8
Dimensions438*450*88
Weight20Kg
Communication InterfaceRS485、CAN
Compliance StandardsUL1973、IEC62619、UN38.3
