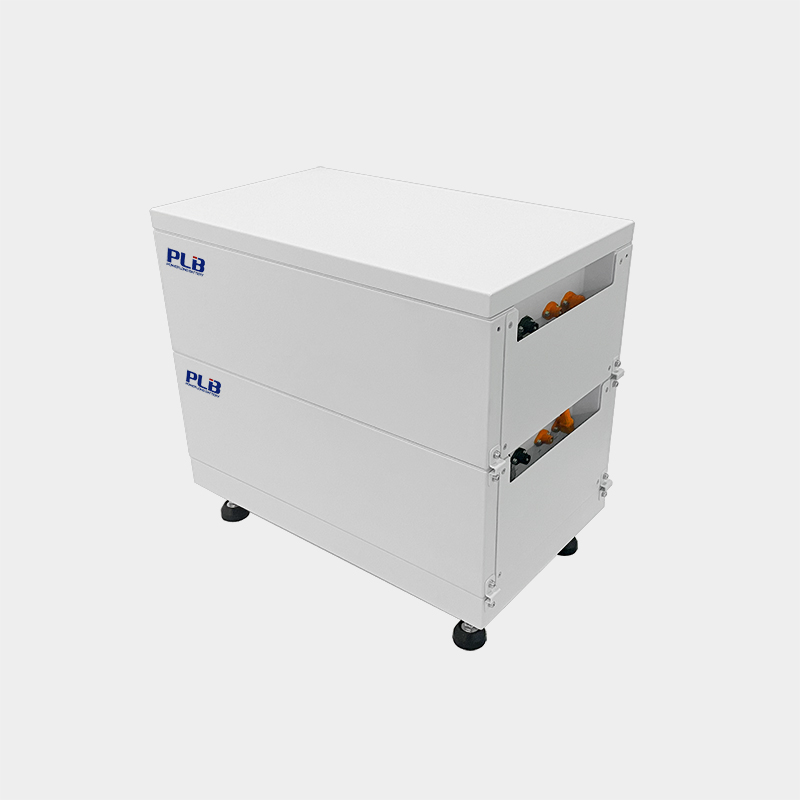

48V 100Ah 15S1P Home Energy Storage Battery
  • 48V 100Ah 15S1P Home Energy Storage Battery
  • 48V 100Ah 15S1P Home Energy Storage Battery
  • 48V 100Ah 15S1P Home Energy Storage Battery
Electrical Specifications
Nominal Voltage48V
Nominal Voltage100AH
Energy4800WH
Internal Resistance≤50mΩ
Self Discharge<1% Per Month
Series and ParallelSupport Multiple Parallel
Mechanical Specifications
Dimensions (L x W x H)483*418*175mm
Weight46.5Kg
TerminalFence Terminals
Case MaterialSPCC
IP RatingIP42
Cells26650 – LiFePO4
Discharge Specification
Max Continuous Discharge Current100A
Max Instantaneous Discharge Current/
BMS Discharge Protection Current110A
Overdischarge Protection Voltage37.5V
Overdischarge Recovery Voltage45V
Short Circuit Protection500uS
Charge Specifications
Charge Current50A
Max Charge Current100A
Charge Voltage54V
Overcharge Protection Voltage54.75V
Overcharge Recovery Voltage51V
Equalization Turn-on Voltage50.25V
Temperature Specification
Discharge Temperature-20-60℃
Charge Temperature0-45℃
Storage Temperature-5-45℃
BMS Over Temperature Protection65±5℃
BMS Over Temperature Protection Recovery55±5℃
Communication
CommunicationRS485/RS232


Compliance Specification
CertificationUN38.3

0.2c, 0.5c, 1c Discharge Curve

48V 100Ah 15S1P Home Energy Storage Battery

Discharge Curves at Different Temperatures: 60°c, 25°c, 0°c, -10°c

48V 100Ah 15S1P Home Energy Storage Battery

1c Discharge Temperature Rise

48V 100Ah 15S1P Home Energy Storage Battery

Charging Curves at Different Temperatures: 45°c, 25°c, 0°c

48V 100Ah 15S1P Home Energy Storage Battery

2D Drawing

48V 100Ah 15S1P Home Energy Storage Battery
