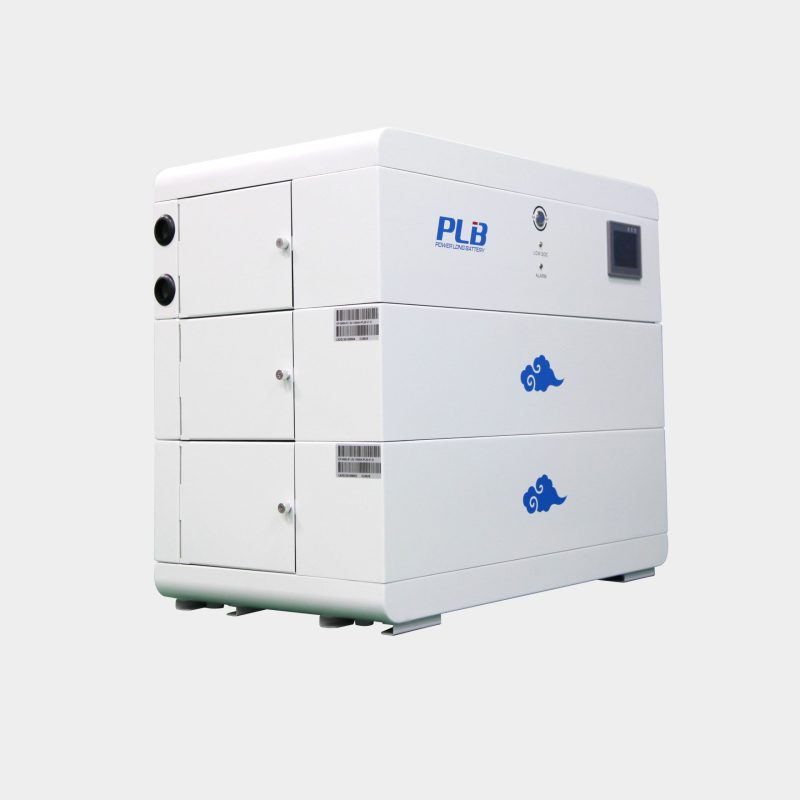

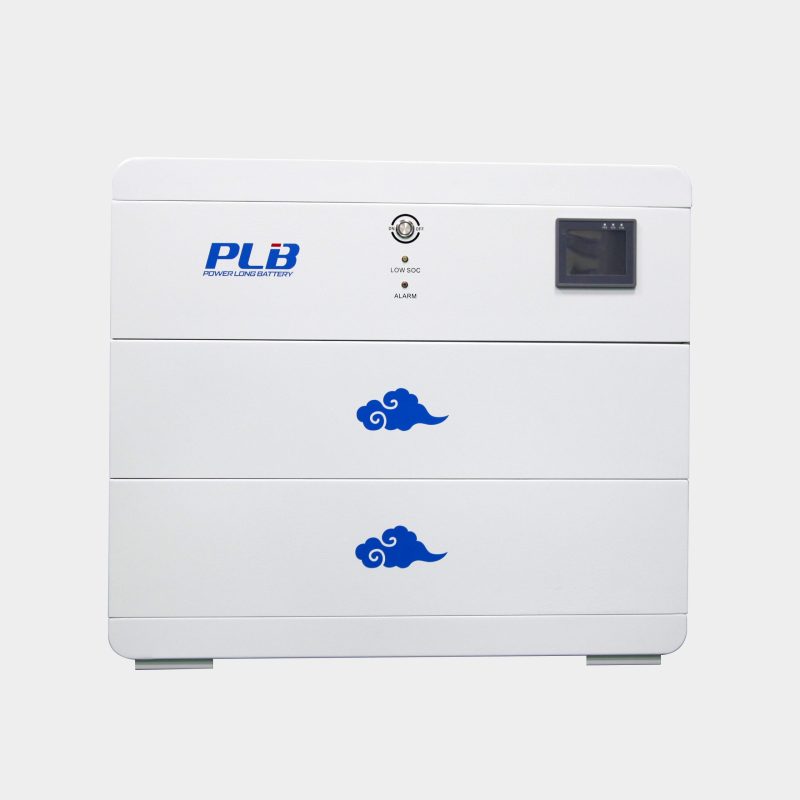

PLB EP5000-H
  • PLB EP5000-H
  • PLB EP5000-H
  • PLB EP5000-H
Electrical Specifications
Nominal Voltage51.2V
Nominal Voltage100Ah
Energy5120Wh
Internal Resistance≤45MΩ
Self Discharge<1% Per Month
Series and ParallelMax support 5P
Mechanical Specifications
Dimensions (L x W x H)400*680*1880mm max
Weight525Kg max
TerminalCN-120
Case MaterialSPCC
IP RatingIP42
CellsPrismatic cell – LiFP
Discharge Specification
Max Continuous Discharge Current50A
Max Instantaneous Discharge Current/
BMS Discharge Protection Current60A
Overdischarge Protection Voltage36.8V
Overdischarge Recovery Voltage44.8V
Short Circuit Protection/
Charge Specifications
Charge Current50A
Max Charge Current50A
Charge Voltage58.4V
Overcharge Protection Voltage60V
Overcharge Recovery Voltage56V
Equalization Turn-on Voltage55.2V
Temperature Specification
Discharge Temperature-20-60℃
Charge Temperature0-50℃
Storage Temperature-5-45℃
BMS Over Temperature Protection65±5℃
BMS Over Temperature Protection Recovery55±5℃
Communication
CommunicationRS485/CAN


Compliance Specification
CertificationUN38.3

0.2c, 0.5c, 1c Discharge Curve

PLB EP5000-H

Discharge Curves at Different Temperatures: 60°c, 25°c, 0°c, -10°c

PLB EP5000-H

1c Discharge Temperature Rise

PLB EP5000-H

Charging Curves at Different Temperatures: 45°c, 25°c, 0°c

PLB EP5000-H

2D Drawing
