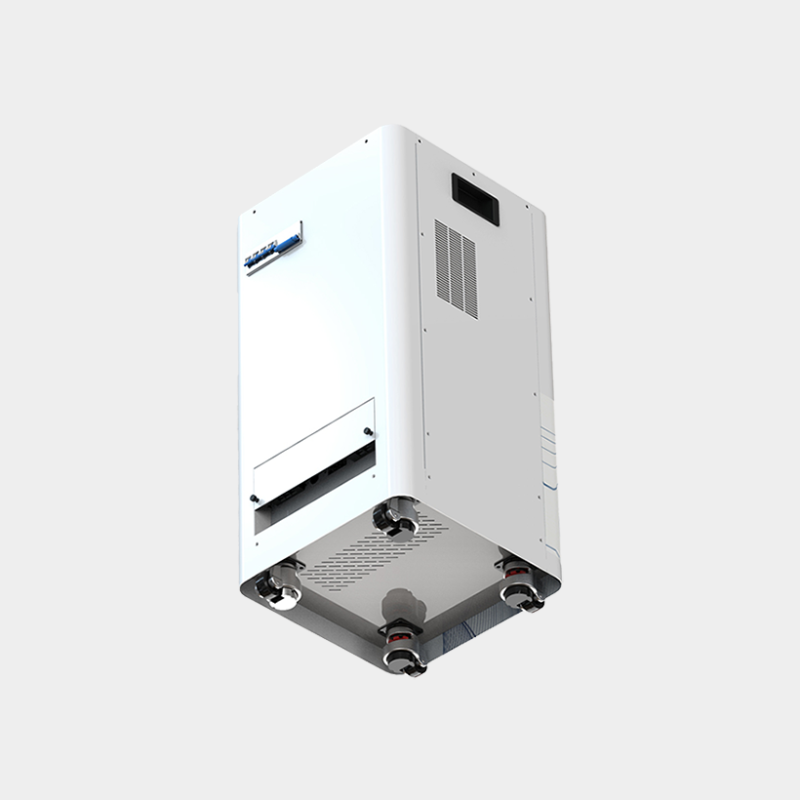

PLB UPS 5K5-L
  • PLB UPS 5K5-L
  • PLB UPS 5K5-L
Electrical Specifications
Nominal Voltage 48V
Nominal Voltage 100Ah
Energy 5000VA/5000W
Internal Resistance ≤45MΩ
Self Discharge <1% Per Month
Series and Parallel Max support 10P
Mechanical Specifications
Dimensions (L x W x H) H750×W380×L380mm
Weight 77Kg
Terminal FTB-120-M6
Case Material SPCC
IP Rating IP21
Cells Prismatic cell – LiFP
Input
Voltage 230VAC
Input voltage range 110~280VAC
Frequency 50-60Hz
Battery
Maximum charge current 60A
Maximum discharge current 100A
Short circuit protection /
Output
Voltage 230VAC±5%
Power 93% at liner mode,
90% at battery mode
Switching time 0ms
Waveform Pure sine wave
Solar charging and AC charging
Solar charging method MPPT
Maximum solar charging current 80A
Maximum AC charging current 60A
PV input (quantity)” 1
AC input(quantity) 1
AC output(quantity) 3
Temperature Specification
Discharge Temperature -20-60℃
Charge Temperature 0-50℃
Storage Temperature -5-45℃
BMS Over Temperature Protection 65±5℃
BMS Over Temperature Protection Recovery 55±5℃
Communication
CommunicationRS485/CAN


Compliance Specification
CertificationUN38.3

0.2c, 0.5c, 1c Discharge Curve

PLB UPS 5K5-L

Discharge Curves at Different Temperatures: 60°c, 25°c, 0°c, -10°c

PLB UPS 5K5-L

1c Discharge Temperature Rise

PLB UPS 5K5-L

Charging Curves at Different Temperatures: 45°c, 25°c, 0°c

PLB UPS 5K5-L

2D Drawing
