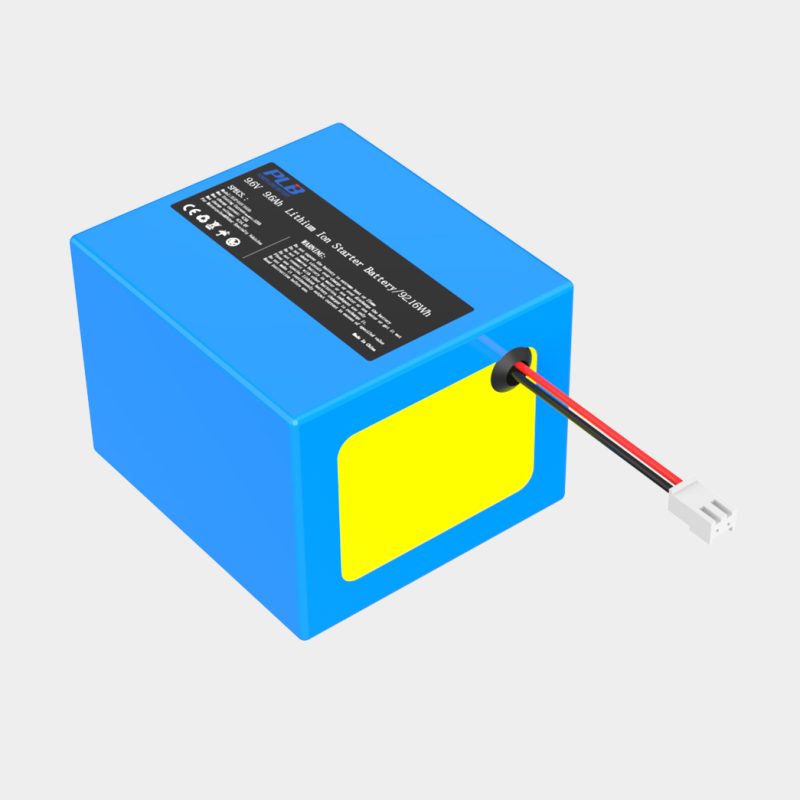

9.6V 9.6Ah 3S3P Off-grid Solar Battery
  • 9.6V 9.6Ah 3S3P Off-grid Solar Battery
  • 9.6V 9.6Ah 3S3P Off-grid Solar Battery
  • 9.6V 9.6Ah 3S3P Off-grid Solar Battery
Electrical Specifications
Nominal Voltage9.6V
Nominal Voltage9.6Ah
Energy138.24Wh
Internal Resistance≤80mΩ
Self Discharge<1% Per Month
Series and Parallel/
Mechanical Specifications
Dimensions (L x W x H)93*84*69MM
Weight0.9kg
TerminalJST-VHR-2N
Case MaterialPVC
IP Rating/
Cells26650 – LiFePO4
Discharge Specification
Max Continuous Discharge Current5A
Max Instantaneous Discharge Current/
BMS Discharge Protection Current10A
Overdischarge Protection Voltage6.3V
Overdischarge Recovery Voltage6.9V
Short Circuit Protection500uS
Charge Specifications
Charge Current1.92A
Max Charge Current5A
Charge Voltage10.95V
Overcharge Protection Voltage11.25V
Overcharge Recovery Voltage10.8V
Equalization Turn-on Voltage10.8V
Temperature Specification
Discharge Temperature-20-60℃
Charge Temperature10-55℃
Storage Temperature-40 ~85℃
BMS Over Temperature Protection65±5℃
BMS Over Temperature Protection Recovery55±5℃
Communication
Communication/


Compliance Specification
CertificationUN38.3

Graph of maximum current discharge at different temperatures

9.6V 9.6Ah 3S3P Off-grid Solar Battery

Graph of 1C charging at different temperatures

9.6V 9.6Ah 3S3P Off-grid Solar Battery

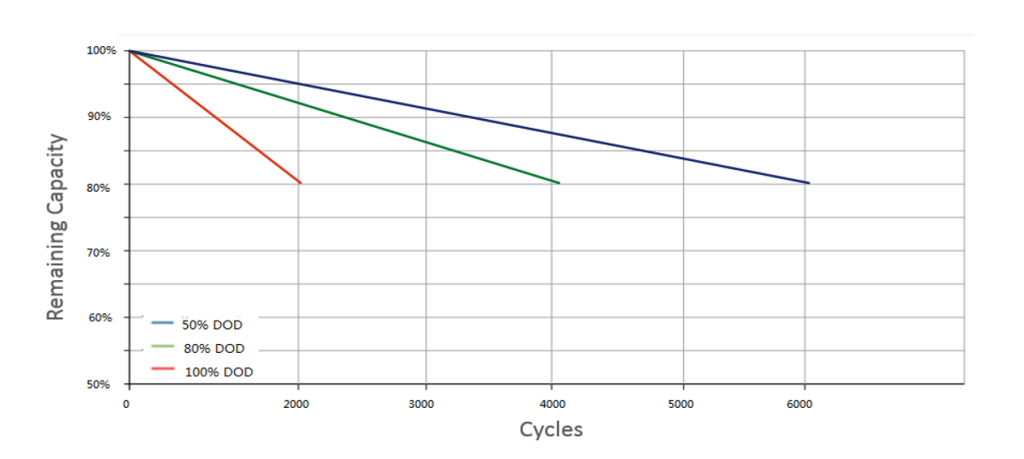

Cycle life diagram of 0.5C charging and 1C discharging at 25 ℃ for different DODs

9.6V 9.6Ah 3S3P Off-grid Solar Battery

2D Drawing
