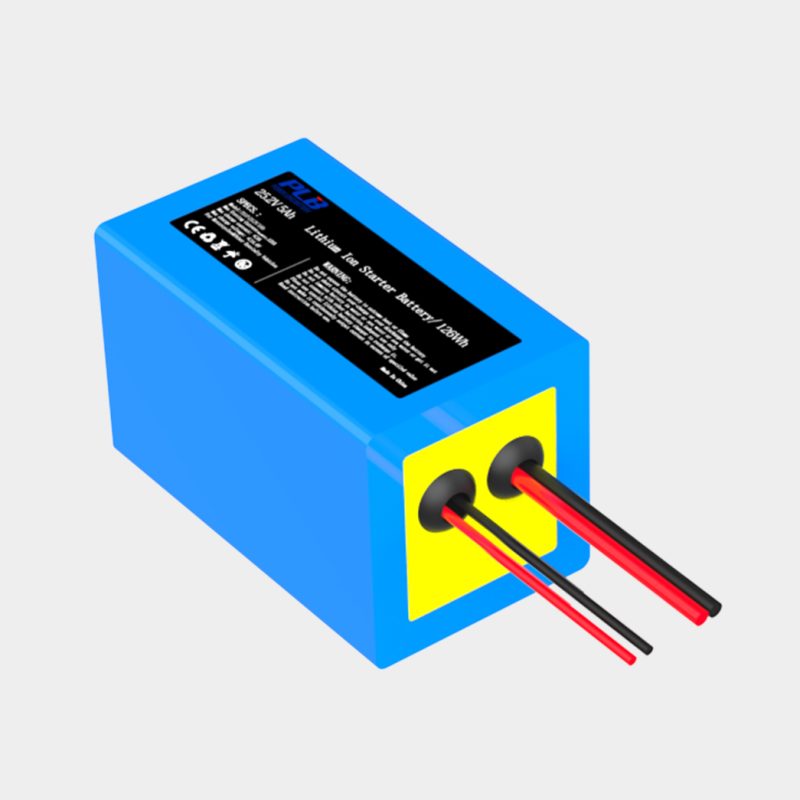

24V 5AH 7S1P Medical Battery
  • 24V 5AH 7S1P Medical Battery
  • 24V 5AH 7S1P Medical Battery
  • 24V 5AH 7S1P Medical Battery
Electrical Specifications
Nominal Voltage24V
Nominal Voltage5Ah
Energy120wh
Internal Resistance≤183mΩ
Self Discharge<1% Per Month
Series and Parallel/
Mechanical Specifications
Dimensions (L x W x H)109*64*68MM
Weight0.7kg
TerminalF2 Blade Terminal
Case MaterialPVC
IP Rating/
Cells26650 – LiFePO4
Discharge Specification
Max Continuous Discharge Current1A
Max Instantaneous Discharge Current/
BMS Discharge Protection Current7A
Overdischarge Protection Voltage19.6V
Overdischarge Recovery Voltage20.3V
Short Circuit Protection800uS
Charge Specifications
Charge Current1A
Max Charge Current2A
Charge Voltage29.4V
Overcharge Protection Voltage29.75V
Overcharge Recovery Voltage22.33V
Equalization Turn-on Voltage/
Temperature Specification
Discharge Temperature -20-60℃
Charge Temperature 0-45℃
Storage Temperature -5-45℃
BMS Over Temperature Protection 65±5℃
BMS Over Temperature Protection Recovery 55±5℃
Communication
Communication/


Compliance Specification
CertificationUN38.3

Charging SOC Curve

24V 5AH 7S1P Medical Battery

Discharge SOC Graph

24V 5AH 7S1P Medical Battery

Maximum Charge Current Curve

24V 5AH 7S1P Medical Battery

Maximum Discharge Current Curve

24V 5AH 7S1P Medical Battery

Different DOD cycle life diagram (1C charge 0.5C discharge @25℃)

24V 5AH 7S1P Medical Battery

2D Drawing

24V 5AH 7S1P Medical Battery
