51.2V 19Ah 16S5P AGV Battery
  • 51.2V 19Ah 16S5P AGV Battery
  • 51.2V 19Ah 16S5P AGV Battery
  • 51.2V 19Ah 16S5P AGV Battery
Electrical Specifications
Nominal Voltage51.2V
Nominal Voltage19Ah
Energy972.8WH
Internal Resistance≤75mΩ
Self Discharge<1% Per Month
Series and Parallel/
Mechanical Specifications
Dimensions (L x W x H)349*144.5*150MM
Weight11.3KG
TerminalDL37Z-21
Case MaterialSPCC
IP RatingIP42
Cells26650 – LiFePO4
Discharge Specification
Max Continuous Discharge Current20A
Max Instantaneous Discharge Current/
BMS Discharge Protection Current25A
Overdischarge Protection Voltage40V
Overdischarge Recovery Voltage48V
Short Circuit Protection≤600
Charge Specifications
Charge Current3.8A
Max Charge Current20A
Charge Voltage58.4V
Overcharge Protection Voltage60V
Overcharge Recovery Voltage58.4V
Equalization Turn-on Voltage54.4V
Temperature Specification
Discharge Temperature-20-60℃
Charge Temperature0-45℃
Storage Temperature-5-45℃
BMS Over Temperature Protection65±5℃
BMS Over Temperature Protection Recovery55±5℃
Communication
CommunicationRS485


Compliance Specification
Certification/

Charging SOC curve

51.2V 19Ah 16S5P AGV Battery

Discharge SOC curve

51.2V 19Ah 16S5P AGV Battery

30A charging current curve

51.2V 19Ah 16S5P AGV Battery

40A discharge current curve

51.2V 19Ah 16S5P AGV Battery

Different DOD cycle life diagram(+1C/-0.5C@25℃)

51.2V 19Ah 16S5P AGV Battery

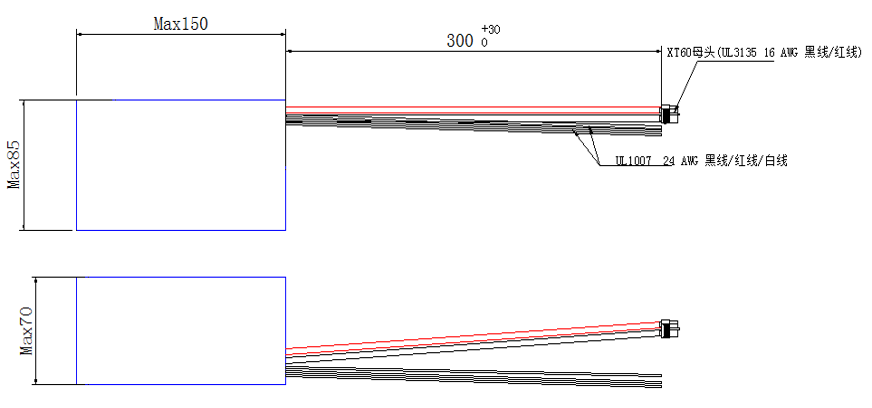

2D Drawing

2D Drawing
