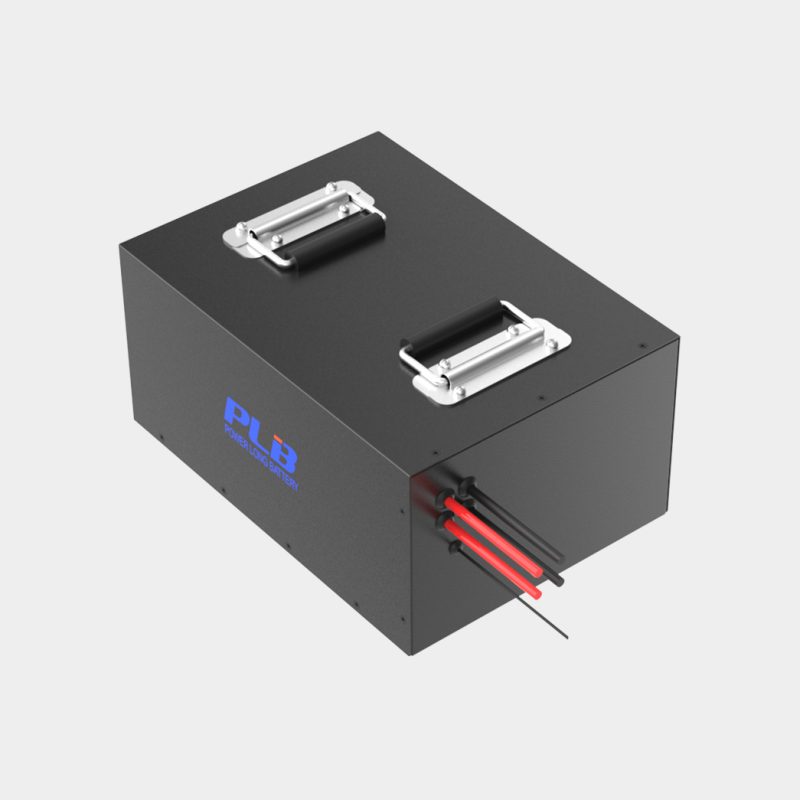

51.2V 33Ah 16S10P AGV Battery
  • 51.2V 33Ah 16S10P AGV Battery
  • 51.2V 33Ah 16S10P AGV Battery
  • 51.2V 33Ah 16S10P AGV Battery
Electrical Specifications
Nominal Voltage51.2V
Nominal Voltage33AH
Energy1689.6WH
Internal Resistance≤40mΩ
Self Discharge<1% Per Month
Series and Parallel/
Mechanical Specifications
Dimensions (L x W x H)349*249*169MM
Weight20KG
Terminal/
Case MaterialSPCC
IP RatingIP42
Cells26650 – LiFePO4
Discharge Specification
Max Continuous Discharge Current40A
Max Instantaneous Discharge Current/
BMS Discharge Protection Current50A
Overdischarge Protection Voltage40V
Overdischarge Recovery Voltage48V
Short Circuit Protection100~800uS
Charge Specifications
Charge Current15A
Max Charge Current30A
Charge Voltage58.4V
Overcharge Protection Voltage60V
Overcharge Recovery Voltage57.6V
Equalization Turn-on Voltage54.4V
Temperature Specification
Discharge Temperature-20-60℃
Charge Temperature0-45℃
Storage Temperature-5-45℃
BMS Over Temperature Protection65±5℃
BMS Over Temperature Protection Recovery55±5℃
Communication
CommunicationRS485


Compliance Specification
Certification/

Charging SOC curve

51.2V 33Ah 16S10P AGV Battery

Discharge SOC curve

51.2V 33Ah 16S10P AGV Battery

30A charging current curve

51.2V 33Ah 16S10P AGV Battery

40A discharge current curve

51.2V 33Ah 16S10P AGV Battery

Different DOD cycle life diagram(+1C/-0.5C@25℃)

51.2V 33Ah 16S10P AGV Battery

2D Drawing

2D Drawing
