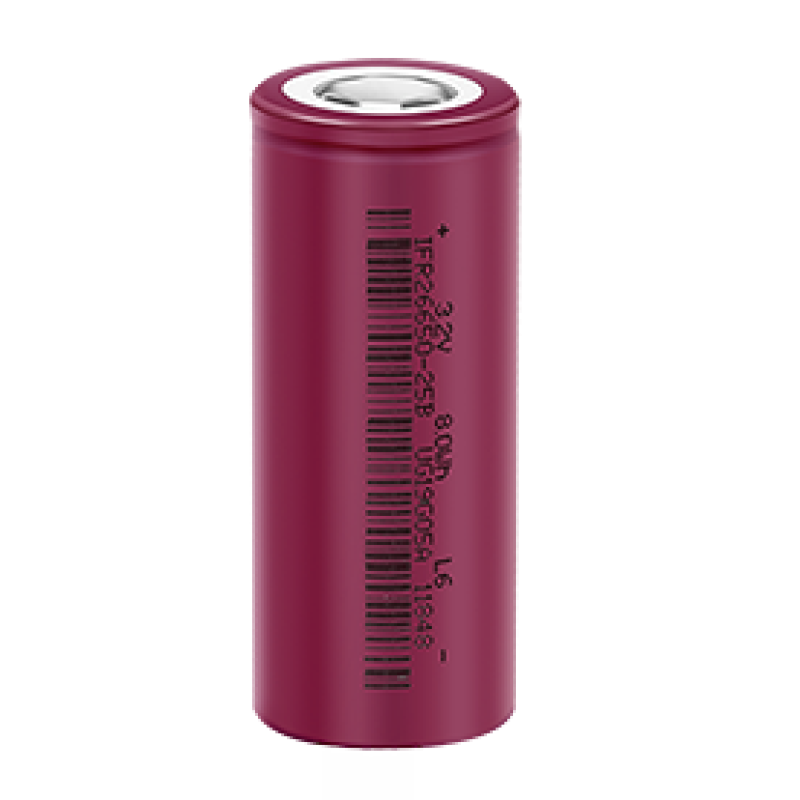

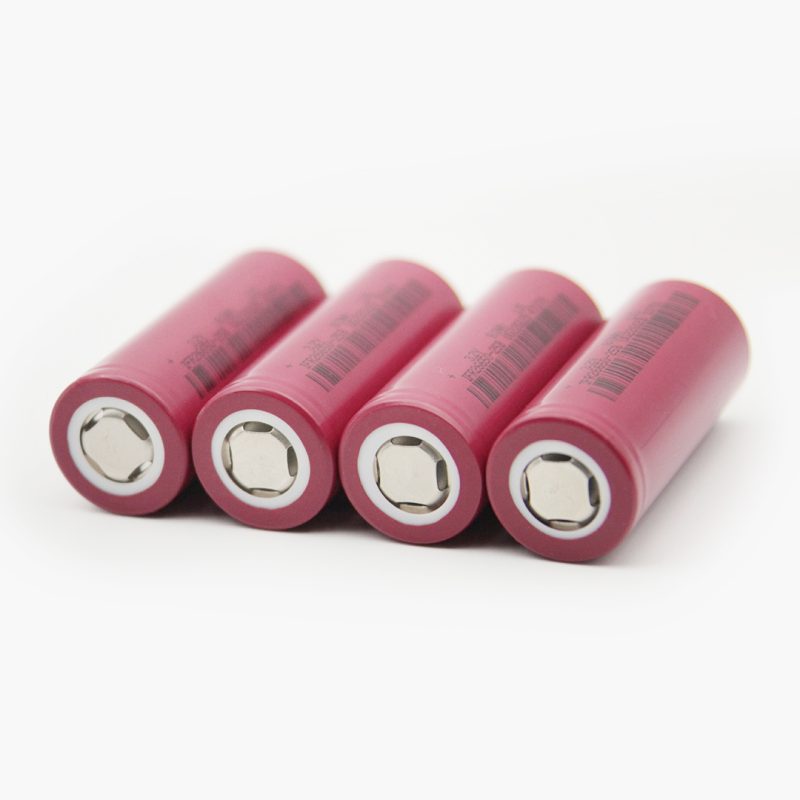

IFR26650-2500mAh
  • IFR26650-2500mAh
  • IFR26650-2500mAh
  • IFR26650-2500mAh
  • IFR26650-2500mAh
  • IFR26650-2500mAh

Product Details

 Parameter Product specification

Typical Capacity
2500mAh(1.0C)

Minimum Capacity
≥2500mAh(1.0C)

 Nominal Voltage
3.2V

Energy Density
93Wh/kg
(1KHz)
Cell AC Impedance (1KH)
≤6mΩ

Cell Weight (g)

About 86g

Operation Voltage
2.0~3.65V

Standard Charge Model

Cell is charged with constant current of 1C to 3.65 V, and then converted to 3.65V constant voltage charging until the charging current is less than 0.02C (50mA).

Standard Charge Current
2500mA
Parameter Product specification

Max. Charge Current
12500mA

Standard Discharge Current
2500mA

Max. Discharge Current
(Continuous)
50000mA

Max. Discharge Current (Long Pulse)
75000mA,60s

Max. Discharge Current (Short Pulse)
125000mA,10s

100%DOD cycle life
  ≥2000次

Charge Operating Temperature
0℃~45℃
(Environment temperature)

Discharge Operating Temperature
-20℃~60℃
(Environment temperature)


Storage Temperature

-20℃~45℃

+0.5C/1C 100% DOD cycle curve

IFR26650-2500mAh

Discharge curve at different temperatures

IFR26650-2500mAh

Discharge capacity at different rates

IFR26650-2500mAh

Temperature rise curve of different rate discharge

IFR26650-2500mAh

Relevant description: through DOE optimization experiment verification, strict incoming material screening and control, strict process control and process, it is ensured that the static state of the initial assembly, dynamic charging and discharging process and long-term cycle process attenuation trend of the cell are highly consistent
