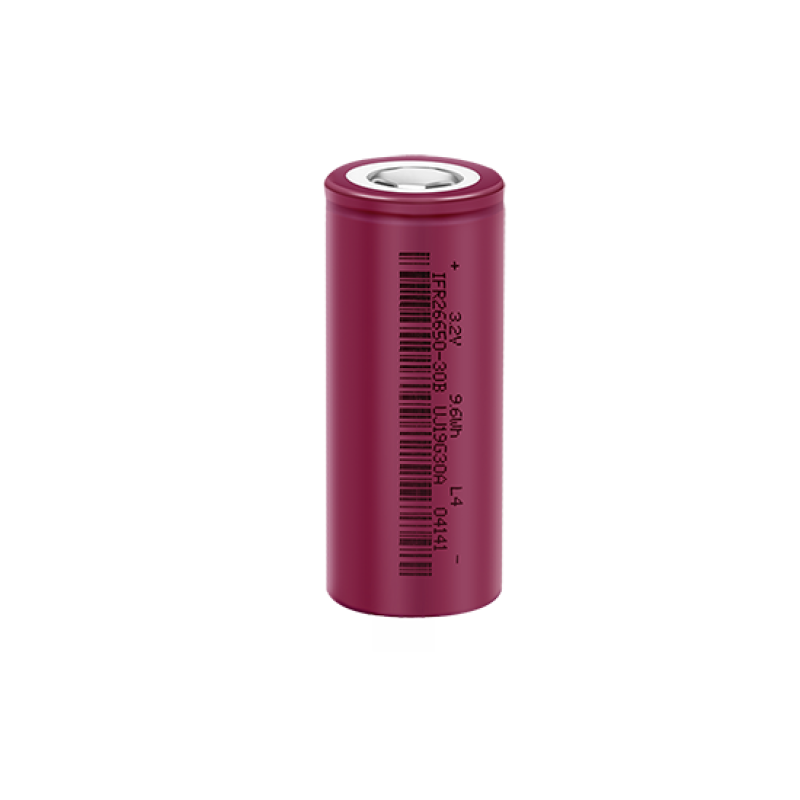

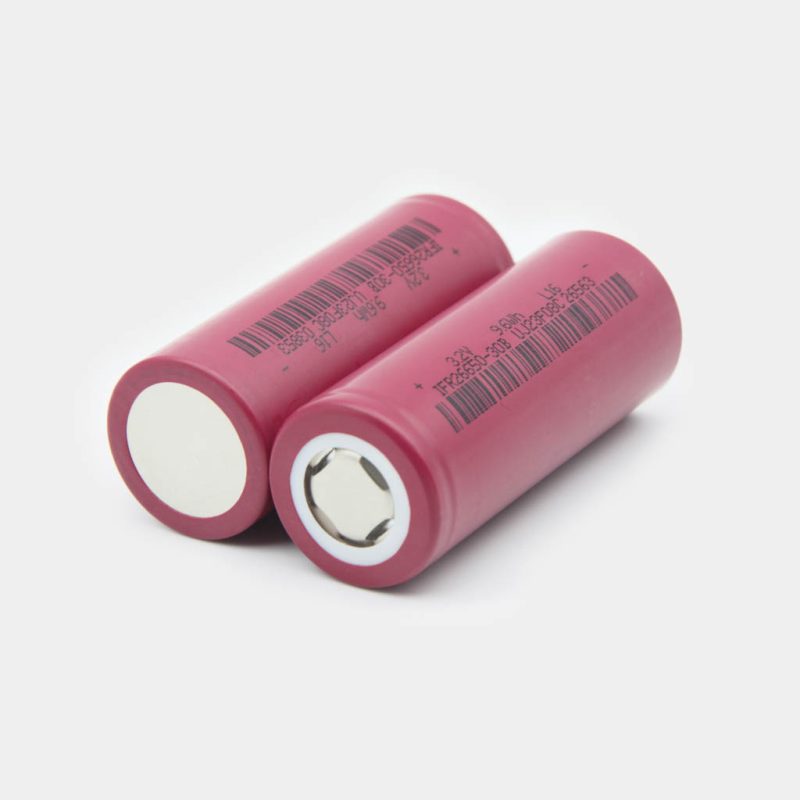

IFR26650 3000mAh
  • IFR26650 3000mAh
  • IFR26650 3000mAh
  • IFR26650 3000mAh
  • IFR26650 3000mAh
  • IFR26650 3000mAh

Product Details

ParameterProduct specification
Typical Capacity3000mAh(0.5C)
Minimum Capacity ≥2970mAh(0.5C)
Nominal Voltage3.2V
 Energy Density113Wh/kg
Cell AC Impedance (1KH)≤10mΩ
Cell Weight (g)About 85g
Operation Voltage 2.0~3.65V
Standard Charge ModelCell is charged with constant current of 1C to 3.65 V, and the it is converted to 3.65V constant voltage charging until the charging current is less than 0.02C (60mA).
Standard Charge Current3000mA
Max. Charge Current 6000mA
ParameterProduct specification
Standard Discharge Current3000mA
Max. Discharge Current
(Continuous)
30000mA
Max. Discharge Current (Long Pulse)45000mA,60s
Max. Discharge Current (Short Pulse)60000mA,10s
100%DOD cycle life≥3000次
80%DOD cycle life≥6000次
50%DOD cycle life≥8000次
Charge Operating Temperature 0℃~45℃
(Environment temperature)
Discharge Operating Temperature -20℃~60℃
(Environment temperature)
Storage Temperature-20℃~45℃

+0.5C/1C 100% DOD cycle curve

IFR26650 3000mAh

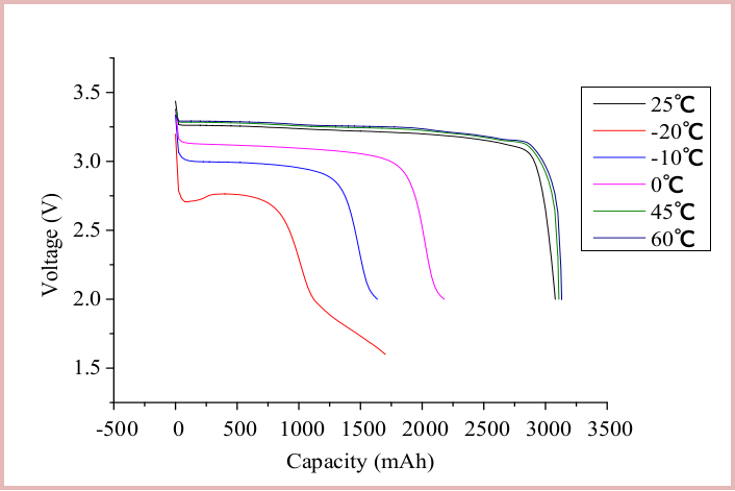

Discharge curve at different temperatures

IFR26650 3000mAh

Discharge capacity at different rates

IFR26650 3000mAh

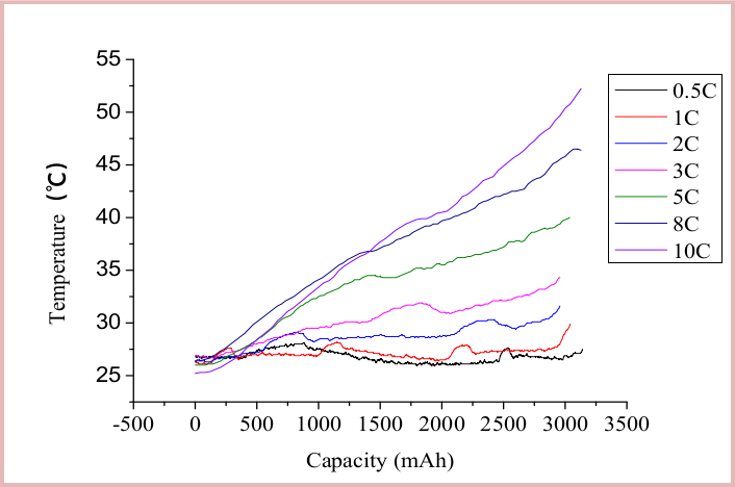

Temperature rise curve of different rate discharge

IFR26650 3000mAh

Relevant description: through DOE optimization experiment verification, strict incoming material screening and control, strict process control and process, it is ensured that the static state of the initial assembly, dynamic charging and discharging process and long-term cycle process attenuation trend of the cell are highly consistent
