6.4V 3.3Ah 2S1P Emergency Light Battery
  • 6.4V 3.3Ah 2S1P Emergency Light Battery
  • 6.4V 3.3Ah 2S1P Emergency Light Battery
  • 6.4V 3.3Ah 2S1P Emergency Light Battery
Electrical Specifications
Nominal Voltage6.4V
Nominal Voltage3.3Ah
Energy21.12Wh
Internal Resistance≤130mΩ
Self Discharge<1% Per Month
Series and Parallel/
Mechanical Specifications
Dimensions (L x W x H)φ26.5*137
Weight0.2Kg
TerminalMolex-5557-2pin
Case MaterialPVC
IP RatingIP42
Cells26650 – LiFePO4
Discharge Specification
Max Continuous Discharge Current3A
Max Instantaneous Discharge Current/
BMS Discharge Protection Current7A
Overdischarge Protection Voltage4V
Overdischarge Recovery Voltage5V
Short Circuit Protection800uS
Charge Specifications
Charge Current1.6A
Max Charge Current3A
Charge Voltage7.3V
Overcharge Protection Voltage7.8V
Overcharge Recovery Voltage7.5V
Equalization Turn-on Voltage7.2V
Temperature Specification
Discharge Temperature-20-60℃
Charge Temperature0-45℃
Storage Temperature-5-45℃
BMS Over Temperature Protection65±5℃
BMS Over Temperature Protection Recovery55±5℃
Communication
Communication/


Compliance Specification
CertificationUN38.3

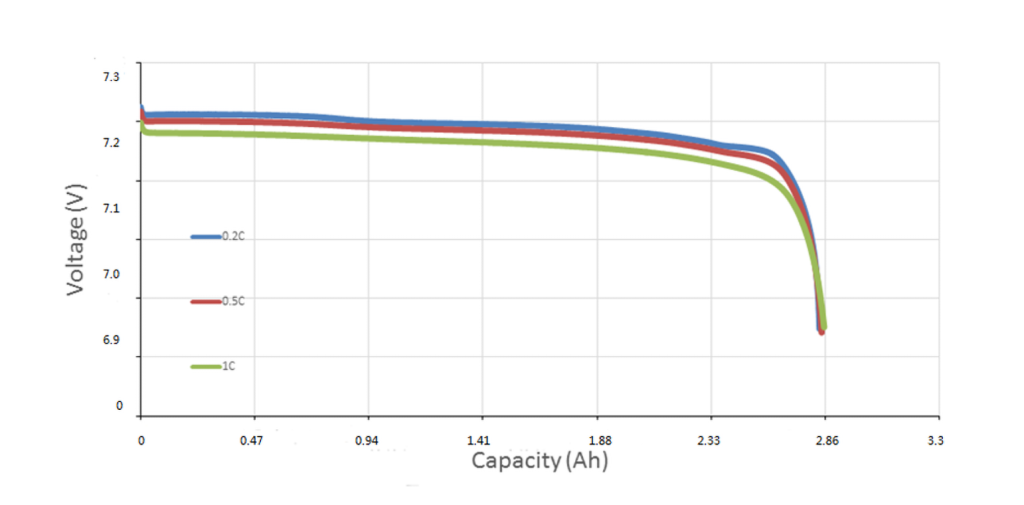

0.2c, 0.5c, 1c Discharge Curve

6.4V 3.3Ah 2S1P Emergency Light Battery

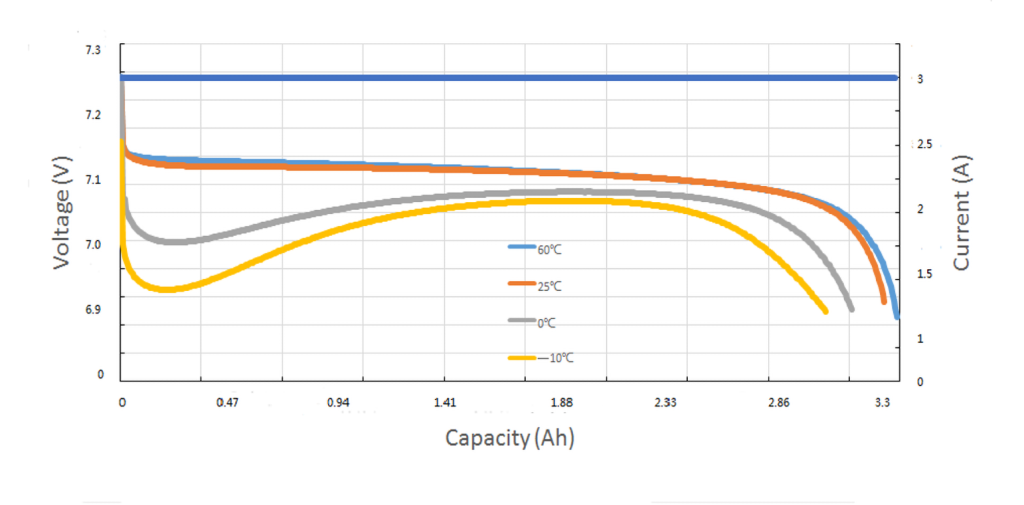

Discharge Curves at Different Temperatures: 60°c, 25°c, 0°c, -10°c

6.4V 3.3Ah 2S1P Emergency Light Battery

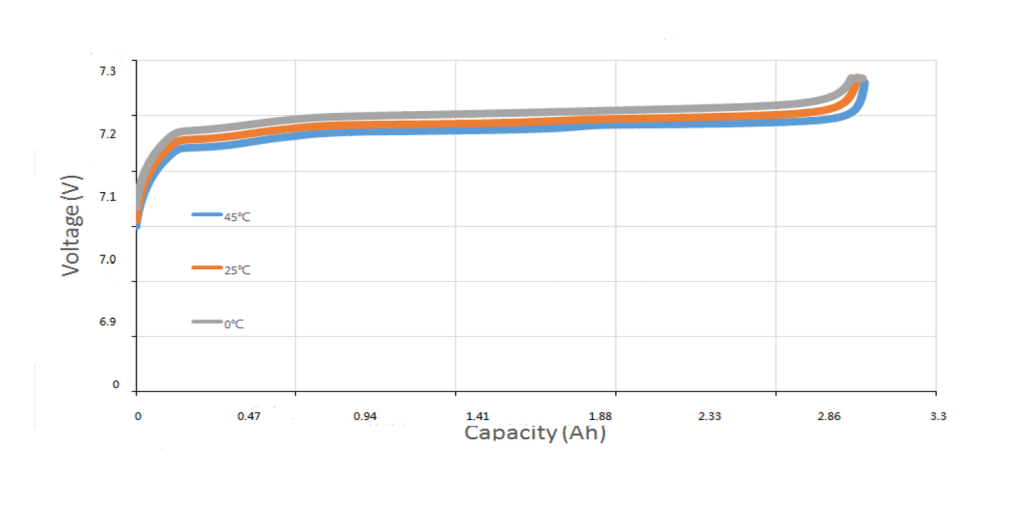

Charging curves at different temperatures: 45°C, 25°C, 0°C

6.4V 3.3Ah 2S1P Emergency Light Battery

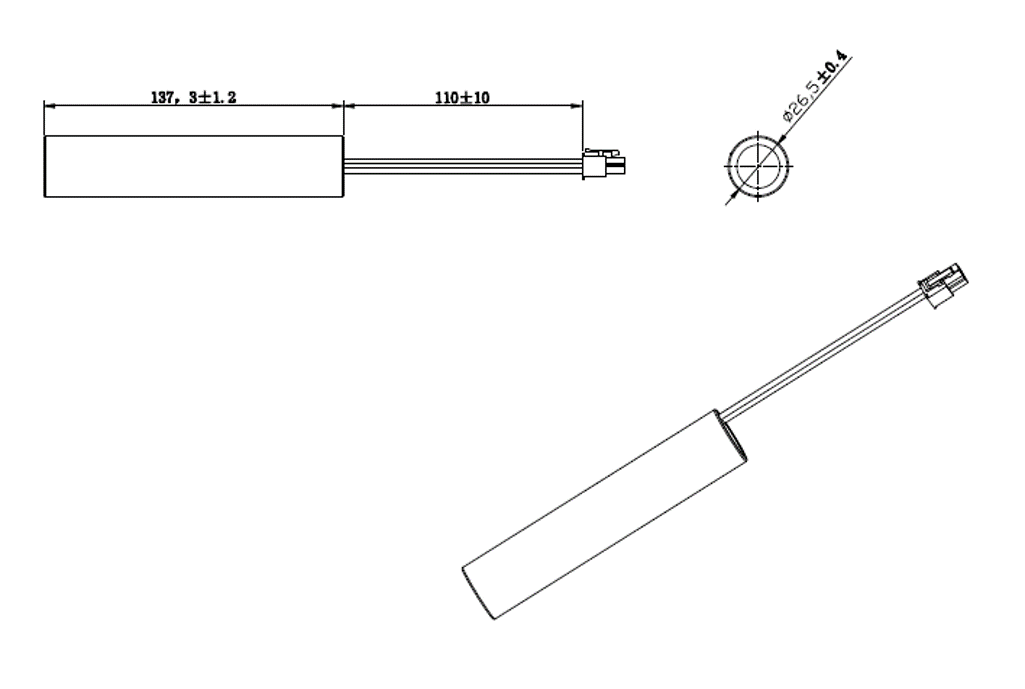

2D Drawing

6.4V 3.3Ah 2S1P Emergency Light Battery
