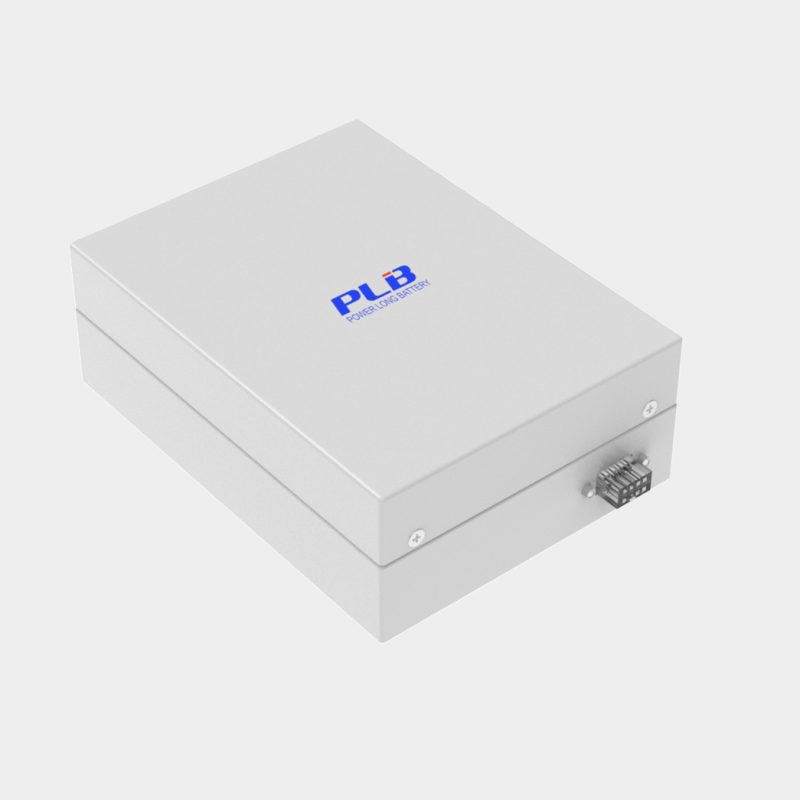

16V 21.6Ah 5S6P Medical Battery
  • 16V 21.6Ah 5S6P Medical Battery
  • 16V 21.6Ah 5S6P Medical Battery
  • 16V 21.6Ah 5S6P Medical Battery
Electrical Specifications
Nominal Voltage16V
Nominal Voltage19.8AH
Energy316.8V
Internal Resistance≤50mΩ
Self Discharge<1% Per Month
Series and Parallel/
Mechanical Specifications

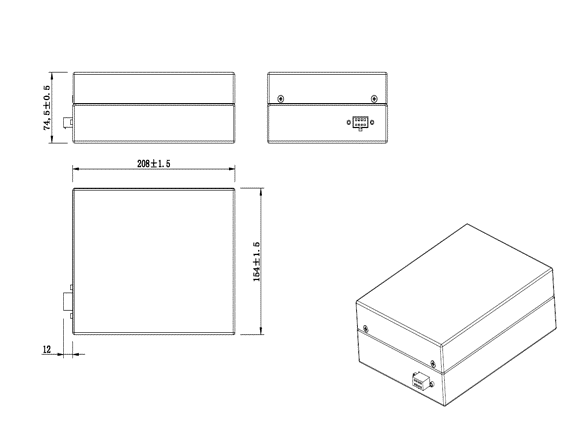

Dimensions (L x W x H)154*208*74.5MM
Weight3.9kg
Terminal5557-4R2P Female
Case MaterialSPCC
IP RatingIP42
Cells26650 – LiFePO4
Discharge Specification
Max Continuous Discharge Current10A
Max Instantaneous Discharge Current/
BMS Discharge Protection Current40A
Overdischarge Protection Voltage11V
Overdischarge Recovery Voltage12.5V
Short Circuit Protection≤600uS
Charge Specifications
Charge Current4A
Max Charge Current10A
Charge Voltage18.25V
Overcharge Protection Voltage18.4V
Overcharge Recovery Voltage17V
Equalization Turn-on Voltage16.75V
Temperature Specification
Discharge Temperature -20-60℃
Charge Temperature 0-45℃
Storage Temperature -5-45℃
BMS Over Temperature Protection 65±5℃
BMS Over Temperature Protection Recovery 55±5℃
Communication
CommunicationUART


Compliance Specification
CertificationUN38.3

Charging SOC Curve

16V 21.6Ah 5S6P Medical Battery

Discharge SOC Graph

16V 21.6Ah 5S6P Medical Battery

Maximum Charge Current Curve

16V 21.6Ah 5S6P Medical Battery

Maximum Discharge Current Curve

16V 21.6Ah 5S6P Medical Battery

Different DOD cycle life diagram (1C charge 0.5C discharge @25℃)

16V 21.6Ah 5S6P Medical Battery
