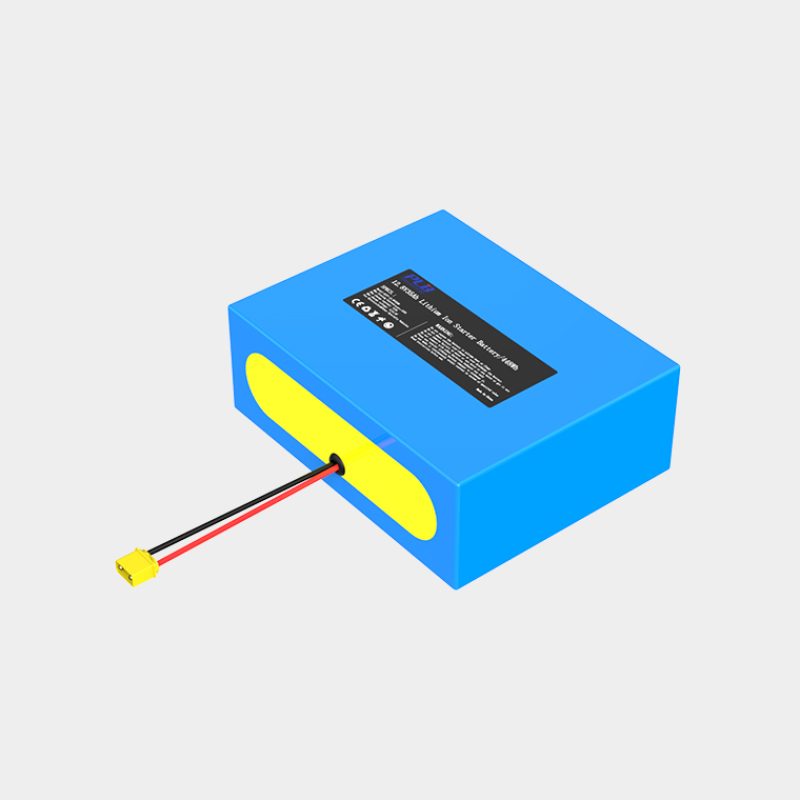

16V 26.6Ah 5S7P Medical Battery
  • 16V 26.6Ah 5S7P Medical Battery
  • 16V 26.6Ah 5S7P Medical Battery
  • 16V 26.6Ah 5S7P Medical Battery
Electrical Specifications
Nominal Voltage 16V
Nominal Voltage 26.6Ah
Energy 425.6Wh
Internal Resistance <50mΩ
Self Discharge <1% Per Month
Series and Parallel /
Mechanical Specifications
Dimensions (L x W x H) 190*150*70mm
Weight 3.35Kg
Terminal XT60-Female
Case Material PVC
IP Rating /
Cells 26650 – LiFePO4
Discharge Specification
Max Continuous Discharge Current 20A
Max Instantaneous Discharge Current /
BMS Discharge Protection Current 30A
Overdischarge Protection Voltage 11.5V
Overdischarge Recovery Voltage 12.5V
Short Circuit Protection 400uS
Charge Specifications
Charge Current 5.32A
Max Charge Current 10A
Charge Voltage 18.25V
Overcharge Protection Voltage 18.75V
Overcharge Recovery Voltage 17V
Equalization Turn-on Voltage 17.25V
Temperature Specification
Discharge Temperature -20-60℃
Charge Temperature 0-45℃
Storage Temperature -5-45℃
BMS Over Temperature Protection 65±5℃
BMS Over Temperature Protection Recovery 55±5℃
Communication
Communication RS485

Compliance Specification
Certification UN38.3

Charging SOC Curve

16V 26.6Ah 5S7P Medical Battery

Discharge SOC Graph

16V 26.6Ah 5S7P Medical Battery

Maximum Charge Current Curve

16V 26.6Ah 5S7P Medical Battery

Maximum Discharge Current Curve

16V 26.6Ah 5S7P Medical Battery

Different DOD cycle life diagram (1C charge 0.5C discharge @25℃)

16V 26.6Ah 5S7P Medical Battery

2D Drawing

16V 26.6Ah 5S7P Medical Battery
