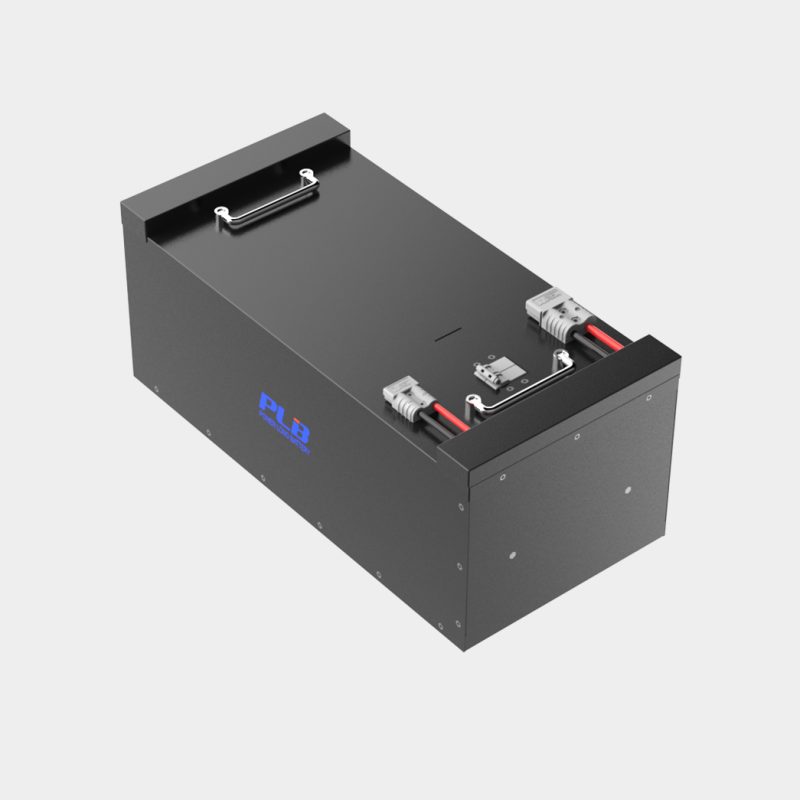

51.2V 100Ah 16S1P 3 Wheel Battery
  • 51.2V 100Ah 16S1P 3 Wheel Battery
  • 51.2V 100Ah 16S1P 3 Wheel Battery
  • 51.2V 100Ah 16S1P 3 Wheel Battery
Electrical Specifications
Nominal Voltage51.2V
Nominal Capacity100Ah
Energy5120Wh
Internal Resistance≤45MΩ
Self Discharge<1% Per Month
Series and ParallelMax support 5P
Mechanical Specifications
Dimensions (L x W x H) 598*291*248mm
Weight 48Kg
Terminal Anderson SB120
Case Material SPCC
IP Rating IP42
Cells 26650 – LiFePO4
Discharge Specification
Max Continuous Discharge Current 100A
Max Instantaneous Discharge Current 100A
BMS Discharge Protection Current 110A
Overdischarge Protection Voltage 35.2V
Overdischarge Recovery Voltage 40V
Short Circuit Protection 800uS
Charge Specifications
Charge Current 50A
Max Charge Current 100A
Charge Voltage 58.4V
Overcharge Protection Voltage 60V
Overcharge Recovery Voltage 57.6V
Equalization Turn-on Voltage 52.8V
Temperature Specification
Discharge Temperature-20-60℃
Charge Temperature0-45℃
Storage Temperature-5-45℃
BMS Over Temperature Protection65±5℃
BMS Over Temperature Protection Recovery55±5℃
Communication
CommunicationRS485/CAN


Compliance Specification
CertificationUN38.3

0.2c, 0.5c, 1c Discharge Curve

51.2V 100Ah 16S1P 3 Wheel Battery

Discharge Curves at Different Temperatures: 60°c, 25°c, 0°c, -10°c

51.2V 100Ah 16S1P 3 Wheel Battery

2D Drawing

51.2V 100Ah 16S1P 3 Wheel Battery
