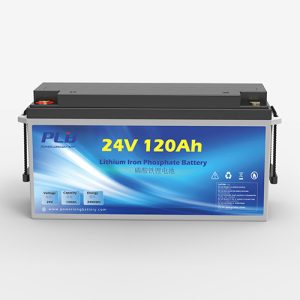

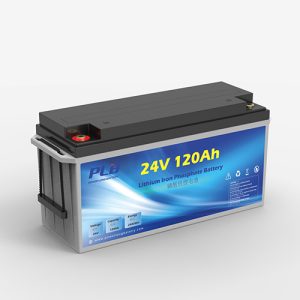

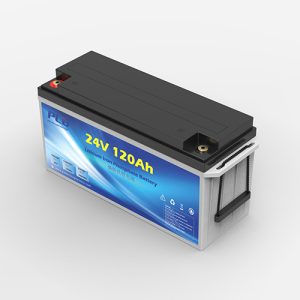

24V 120Ah LiFePO₄ lithium battery
24V 120Ah LiFePO₄ Lithium Battery – Compact Power for Reliable Energy Storage
The 24V 120Ah LiFePO₄ lithium battery is a smart, compact energy storage solution that delivers 2.88kWh of usable power. Built with advanced Lithium Iron Phosphate (LiFePO₄) technology, it offers exceptional safety, efficiency, and lifespan—making it ideal for off-grid solar systems, RVs, boats, telecom base stations, and backup power solutions.
This battery is designed for users who need dependable, lightweight, and maintenance-free energy with long cycle life and excellent performance across a range of applications.
What Is a 24V 120Ah LiFePO₄ Battery?
The 24V 120Ah battery uses high-quality LiFePO₄ cells and a built-in Battery Management System (BMS) to ensure optimal performance and safety. It supports deep cycling, fast charging, and continuous power delivery without the drawbacks of lead-acid batteries—such as acid leaks, heavy weight, or frequent maintenance.
Key Features
Total Energy: 2.88kWh
Cycle Life: 6,000+ cycles at 80% depth of discharge (DoD)
Smart BMS: Full protection from overcharge, over-discharge, overcurrent, short circuit, and temperature extremes
High Round-Trip Efficiency: Up to 98%
Fast Charging & High Discharge Rate
Lightweight & Space-Saving Design
No Maintenance: No fluids, no corrosion, no servicing required
Eco-Friendly: Non-toxic, recyclable, RoHS/CE certified
Custom Options: Communication ports (RS485/CAN), terminal types, and enclosures
Typical Specifications
| Parameter | Specification |
|---|---|
| Nominal Voltage | 25.6V |
| Rated Capacity | 120Ah |
| Total Energy | 2.88kWh |
| Charge Voltage | 29.2V |
| Cut-off Voltage | 20.0V |
| Max Charge Current | Up to 60A (customizable) |
| Max Discharge Current | Up to 80A (customizable) |
| Operating Temp. Range | -20°C to +60°C |
| Cycle Life | 6,000+ cycles @ 80% DoD |
| Protection Rating | IP65 or above (optional) |
| Approx. Weight | 20–25kg |
Application Scenarios
Off-Grid & Hybrid Solar Power Storage
RVs and Motorhomes
Electric Boats and Marine Power Systems
Telecommunication Equipment Backup
UPS (Uninterruptible Power Supplies)
Portable Power Stations & Emergency Power Units
Industrial Battery Applications
Advantages Over Lead-Acid Batteries
| Feature | LiFePO₄ 24V 120Ah | Lead-Acid Equivalent |
|---|---|---|
| Cycle Life | 6,000+ cycles | 500–1,000 cycles |
| Usable Capacity | Up to 100% | ~50% |
| Weight & Size | Lightweight & compact | Heavier & bulkier |
| Maintenance | None | Requires regular checks |
| Charging Time | Fast | Slow |
| Safety | Very high | Risk of acid leaks/fire |
The 24V 120Ah LiFePO₄ lithium battery is the ideal solution for anyone seeking a compact, durable, and maintenance-free power source. With high efficiency, long cycle life, and robust safety features, it’s perfectly suited for both mobile and stationary energy storage needs.
Invest in next-generation energy—choose LiFePO₄ for reliable, long-term power.
