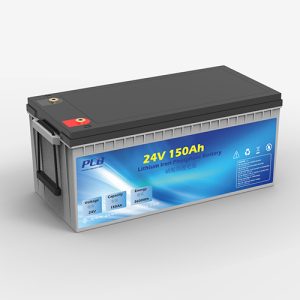

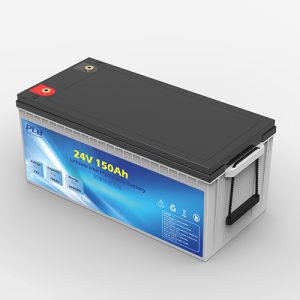

24V 150Ah LiFePO₄ lithium battery
24V 150Ah LiFePO₄ Lithium Battery – Smart Power for Mobile and Stationary Systems
The 24V 150Ah LiFePO₄ lithium battery is a compact, high-performance energy storage solution with a total capacity of 3.84kWh. Designed for demanding applications such as solar energy systems, RVs, marine power, and industrial backup, this battery delivers excellent reliability, safety, and long service life with zero maintenance. Thanks to advanced Lithium Iron Phosphate (LiFePO₄) chemistry, it provides a smarter, lighter, and cleaner alternative to traditional lead-acid batteries.
What Is a 24V 150Ah LiFePO₄ Battery?
This battery combines energy-dense LiFePO₄ cells with a built-in Battery Management System (BMS) to provide safe, stable power. It can deliver thousands of deep charge/discharge cycles and supports fast charging while remaining cool, efficient, and durable in various environmental conditions.
Key Features
Total Energy: 3.84kWh
Long Cycle Life: 6,000+ cycles @ 80% DoD
Integrated Smart BMS: Full protection against over-voltage, under-voltage, overcurrent, short circuits, and temperature extremes
High Efficiency: >98% round-trip efficiency for minimal energy loss
Fast Charging & Discharging: Supports high load and rapid energy replenishment
Maintenance-Free: No fluid checks, no corrosion, no acid spills
Lightweight & Compact: Smaller and lighter than equivalent lead-acid batteries
Environmentally Friendly: Non-toxic, recyclable, RoHS/CE compliant
Customizable Options: Terminals, size, and communication interfaces (CAN, RS485)
Typical Specifications
| Parameter | Specification |
|---|---|
| Nominal Voltage | 25.6V |
| Rated Capacity | 150Ah |
| Total Energy | 3.84kWh |
| Charge Voltage | 29.2V |
| Cut-off Voltage | 20.0V |
| Max Charge Current | Up to 70A (customizable) |
| Max Discharge Current | Up to 100A (customizable) |
| Operating Temp. Range | -20°C to +60°C |
| Cycle Life | 6,000+ cycles @ 80% DoD |
| Protection Rating | IP65 or higher (optional) |
| Approx. Weight | 25–30kg (varies by design) |
Application Areas
Off-Grid & Hybrid Solar Energy Systems
Recreational Vehicles (RVs) and Campers
Electric Boats and Marine Equipment
Telecom Base Station Backup
Uninterruptible Power Supply (UPS)
Industrial Mobility Solutions (AGVs, Forklifts)
Portable Power Stations and Emergency Systems
Why Choose LiFePO₄ Over Lead-Acid?
| Feature | LiFePO₄ 24V 150Ah | Lead-Acid Equivalent |
|---|---|---|
| Cycle Life | 6,000+ cycles | 500–1,000 cycles |
| Usable Capacity | ~100% | ~50% |
| Maintenance | None | Regular maintenance needed |
| Charging Time | Fast | Slow |
| Safety | High (no thermal runaway) | Acid spill risk |
| Weight & Size | Compact and lightweight | Bulky and heavy |
The 24V 150Ah LiFePO₄ lithium battery delivers efficient, stable, and maintenance-free power for diverse applications. Whether you’re powering off-grid equipment, mobile homes, or marine systems, this battery provides the performance and peace of mind you need—backed by long life and industry-leading safety.
