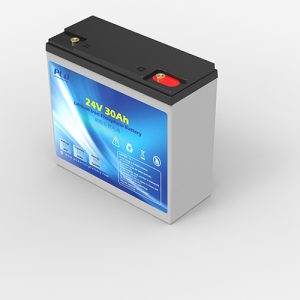

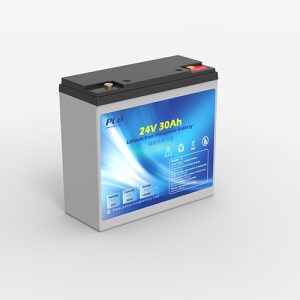

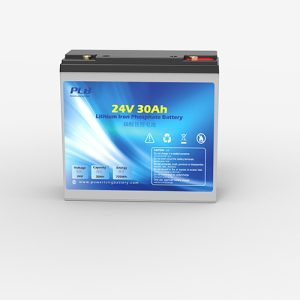

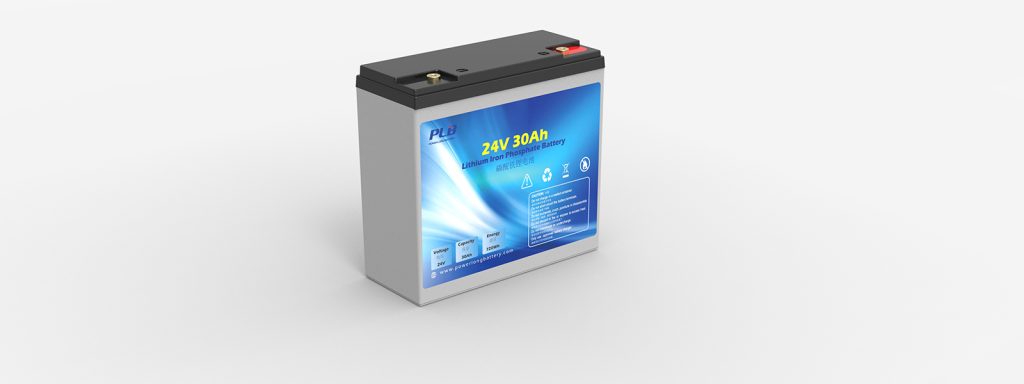

24V 30Ah lithium battery
24V 30Ah LiFePO₄ Lithium Battery – Compact, Lightweight Power for Modern Applications
The 24V 30Ah LiFePO₄ lithium battery delivers 768Wh of clean, efficient energy in a compact, lightweight form. Designed for portable power systems, small solar setups, telecom backup, and marine electronics, this battery offers exceptional reliability, safety, and performance. Thanks to advanced Lithium Iron Phosphate (LiFePO₄) chemistry, it ensures long cycle life, stable output, and maintenance-free operation.
What Is a 24V 30Ah LiFePO₄ Battery?
The 24V 30Ah battery is a smart energy solution featuring deep-cycle LiFePO₄ cells and a built-in Battery Management System (BMS) that safeguards the battery against overcharging, over-discharging, short circuits, and temperature extremes. With high efficiency and low weight, it’s ideal for users who need compact and dependable energy storage.
Key Features
Total Energy: 768Wh
Long Cycle Life: 6,000+ cycles at 80% depth of discharge (DoD)
Built-in Smart BMS: Provides complete system protection
High Efficiency: >98% round-trip efficiency
Fast Charging: Reduced downtime with rapid recharge capability
Compact & Lightweight: Easy to install and transport
Maintenance-Free: No acid, no corrosion, no water refilling
Eco-Friendly: RoHS/CE certified, non-toxic and fully recyclable
Customizable: Terminal, case design, and communication (RS485/CAN) options available
Technical Specifications (Typical)
| Parameter | Specification |
|---|---|
| Nominal Voltage | 25.6V |
| Rated Capacity | 30Ah |
| Total Energy | 768Wh |
| Charge Voltage | 29.2V |
| Cut-off Voltage | 20.0V |
| Max Charge Current | Up to 15A (customizable) |
| Max Discharge Current | Up to 30A (customizable) |
| Operating Temp. Range | -20°C to +60°C |
| Cycle Life | 6,000+ cycles @ 80% DoD |
| Protection Class | IP65 or higher (optional) |
| Approx. Weight | ~6–8kg |
Common Applications
Portable Solar Power Systems
RVs and Camping Equipment
Small Boats and Marine Electronics
Telecommunication Backup Power
Emergency Lighting & Security Systems
Medical Devices & Testing Equipment
Handheld or Mobile Industrial Tools
Why Choose LiFePO₄ Over Lead-Acid?
| Feature | LiFePO₄ 24V 30Ah | Lead-Acid Equivalent |
|---|---|---|
| Usable Capacity | ~100% | ~50% |
| Cycle Life | 6,000+ cycles | 500–1,000 cycles |
| Maintenance | None | Requires regular service |
| Charging Time | Fast | Slow |
| Weight & Size | Lightweight & compact | Heavier & bulkier |
| Safety | Stable, no acid/leaks | Risk of spills and gassing |
The 24V 30Ah LiFePO₄ lithium battery is a compact, high-performance power solution tailored for applications that demand lightweight and reliable energy. Whether you’re building a portable power pack, maintaining telecom reliability, or upgrading your RV’s battery bank, this unit offers worry-free performance and long-term value.
Choose LiFePO₄—efficiency, safety, and peace of mind in one smart package.
