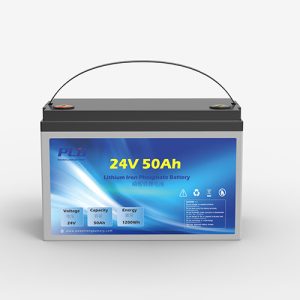

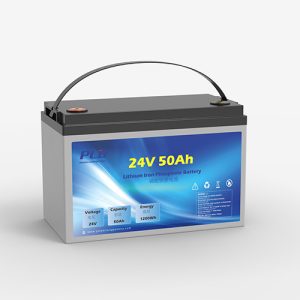

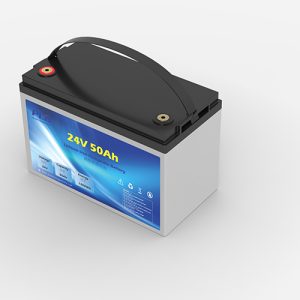

24V 50Ah lithium battery
24V 50Ah LiFePO₄ Lithium Battery – Compact, Lightweight, and Reliable Power
The 24V 50Ah LiFePO₄ lithium battery delivers 1.28kWh of efficient, maintenance-free energy in a highly compact and lightweight form. Designed for portable solar systems, RVs, marine electronics, backup power, and compact industrial equipment, this battery offers the benefits of Lithium Iron Phosphate (LiFePO₄) technology: safety, durability, and long cycle life.
If you’re looking for a dependable power solution with a smaller footprint, the 24V 50Ah battery is a smart, long-term investment.
What Is a 24V 50Ah LiFePO₄ Battery?
This battery uses advanced LiFePO₄ cells combined with an integrated Battery Management System (BMS) to ensure stable performance, protection, and long-term reliability. Unlike lead-acid batteries, it offers full depth-of-discharge, fast charging, and no maintenance—ideal for demanding yet space-limited applications.
Key Features
Energy Storage: 1.28kWh
Long Cycle Life: 6,000+ cycles @ 80% DoD
Smart BMS: Protects against overcharge, over-discharge, overcurrent, short circuit, and overheating
High Efficiency: >98% round-trip efficiency
Fast Charging: Reduced downtime and quick recharge
Lightweight & Compact: Ideal for mobile or portable use
Maintenance-Free: No acid, corrosion, or water topping
Eco-Friendly: RoHS/CE certified, non-toxic and recyclable
Customizable: Terminal type, size, communication (CAN, RS485) available upon request
Typical Technical Specifications
| Parameter | Specification |
|---|---|
| Nominal Voltage | 25.6V |
| Rated Capacity | 50Ah |
| Total Energy | 1.28kWh |
| Charge Voltage | 29.2V |
| Cut-off Voltage | 20.0V |
| Max Charge Current | Up to 25A (customizable) |
| Max Discharge Current | Up to 50A (customizable) |
| Operating Temp. Range | -20°C to +60°C |
| Cycle Life | 6,000+ cycles @ 80% DoD |
| Protection Rating | IP65 or higher (optional) |
| Weight | ~9–12kg |
Applications
Portable Solar Power Systems
RVs and Compact Campers
Small Boats and Marine Electronics
Telecom and IoT Backup Power
Emergency Lighting and Power Supply
Medical or Laboratory Equipment
Tool Carts and Compact Machinery
LiFePO₄ vs. Lead-Acid: A Smarter Choice
| Feature | LiFePO₄ 24V 50Ah | Lead-Acid Equivalent |
|---|---|---|
| Usable Capacity | ~100% | ~50% |
| Cycle Life | 6,000+ cycles | 500–1,000 cycles |
| Maintenance | None | Requires regular upkeep |
| Weight | Lightweight | Heavier |
| Safety | High thermal stability | Risk of acid leaks |
| Charging Speed | Fast | Slow |
The 24V 50Ah LiFePO₄ lithium battery is a perfect balance of size, safety, and performance. With its long service life, efficient energy output, and zero maintenance, it’s ideal for compact and mobile power needs. Whether you’re building a small off-grid system or upgrading a backup setup, this battery offers reliable power with peace of mind.
