24V 60Ah lithium battery

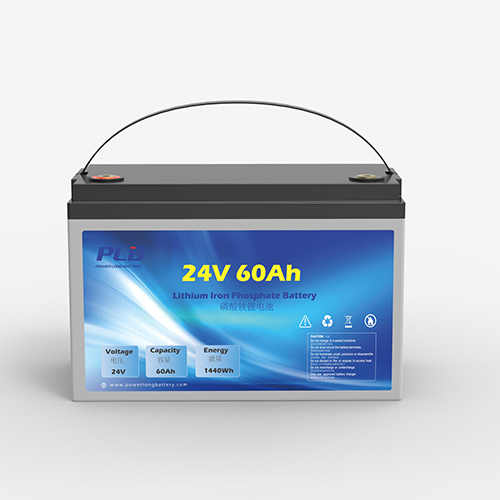

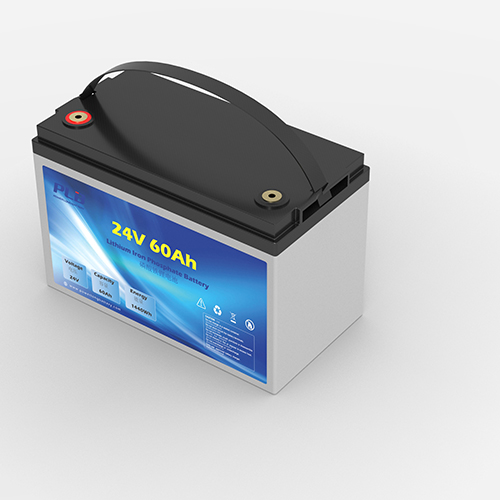

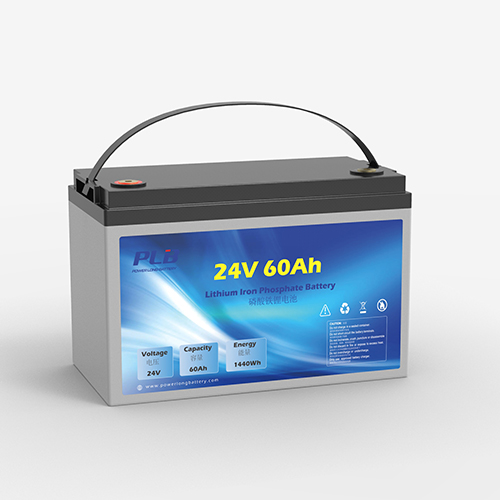

24V 60Ah LiFePO₄ Lithium Battery – Lightweight Power for Compact Energy Needs
The 24V 60Ah LiFePO₄ lithium battery offers 1.54kWh of dependable, maintenance-free power in a compact and lightweight design. Ideal for small solar setups, portable power systems, RVs, marine electronics, and backup applications, this battery delivers excellent performance, high safety, and long cycle life.
Built with Lithium Iron Phosphate (LiFePO₄) technology, this battery outperforms traditional lead-acid batteries in virtually every category—offering faster charging, more usable capacity, and zero maintenance.
What Is a 24V 60Ah LiFePO₄ Battery?
This battery is designed for users who need reliable energy storage in a smaller package. With a smart Battery Management System (BMS) integrated, it ensures safety and efficiency during charging, discharging, and long-term use. The battery is perfect for space-constrained applications without compromising power or longevity.
Key Features
Energy Capacity: 1.54kWh
Long Cycle Life: 6,000+ cycles at 80% depth of discharge (DoD)
High Efficiency: >98% round-trip energy efficiency
Integrated Smart BMS: Full protection from over-voltage, under-voltage, overcurrent, short circuit, and overheating
Compact & Lightweight: Ideal for mobile or space-limited applications
Fast Charging: Supports quick energy replenishment
Maintenance-Free: No fluids, corrosion, or service needed
Eco-Friendly: Non-toxic, recyclable, RoHS/CE certified
Custom Options: Terminal types, casing, communication (CAN, RS485)
Typical Technical Specifications
| Parameter | Specification |
|---|---|
| Nominal Voltage | 25.6V |
| Rated Capacity | 60Ah |
| Total Energy | 1.54kWh |
| Charge Voltage | 29.2V |
| Cut-off Voltage | 20.0V |
| Max Charge Current | Up to 30A (customizable) |
| Max Discharge Current | Up to 60A (customizable) |
| Operating Temp. Range | -20°C to +60°C |
| Cycle Life | 6,000+ cycles @ 80% DoD |
| Protection Level | IP65 or higher (optional) |
| Weight | ~12–15kg |
Typical Applications
Portable Solar Power Systems
RVs and Camper Vans
Electric Kayaks & Small Marine Systems
Telecom & IoT Equipment Backup
Medical and Instrumentation Equipment
Mobile Power Carts & Tools
Emergency Lighting and Backup Units
Advantages Over Lead-Acid Batteries
| Feature | LiFePO₄ 24V 60Ah | Lead-Acid Equivalent |
|---|---|---|
| Usable Capacity | 100% | ~50% |
| Cycle Life | 6,000+ cycles | 500–1,000 cycles |
| Maintenance | None | Requires regular checks |
| Charging Speed | Fast | Slow |
| Weight & Size | Light and compact | Heavier and bulkier |
| Safety | High thermal stability | Risk of leakage/spills |
The 24V 60Ah LiFePO₄ lithium battery is the perfect solution for users who need reliable, lightweight, and compact energy storage. Whether you’re powering a portable system, marine electronics, or off-grid equipment, this battery provides a long-lasting and maintenance-free power supply.
