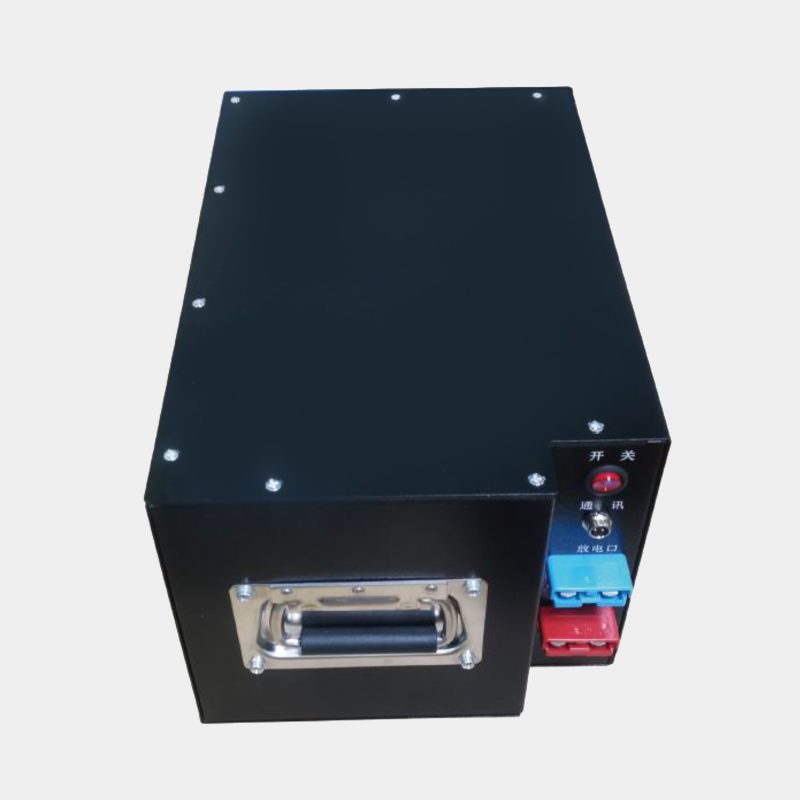

38.4V 9.9Ah 12S3P AGV Battery
  • 38.4V 9.9Ah 12S3P AGV Battery
Electrical Specifications
Nominal Voltage38.4V
Nominal Voltage9.9AH
Energy380.16WH
Internal Resistance≤75mΩ
Self Discharge<1% Per Month
Series and Parallel/
Mechanical Specifications
Dimensions (L x W x H)195*133*170mm
Weight4.25KG
TerminalM6 mut
Case MaterialABS+PC
IP RatingIP65
Cells26650 – LiFePO4
Discharge Specification
Max Continuous Discharge Current20A
Max Instantaneous Discharge Current40A/40S
BMS Discharge Protection Current43A
Overdischarge Protection Voltage30V
Overdischarge Recovery Voltage33.6V
Short Circuit Protection≤600uS
Charge Specifications
Charge Current10A
Max Charge Current20A/20s
Charge Voltage42.6V
Overcharge Protection Voltage45V
Overcharge Recovery Voltage42V
Equalization Turn-on Voltage38.4V
Temperature Specification
Discharge Temperature-20-60℃
Charge Temperature0-45℃
Storage Temperature-5-45℃
BMS Over Temperature Protection65±5℃
BMS Over Temperature Protection Recovery55±5℃
Communication
CommunicationSMBus


Compliance Specification
Certification/

Charging SOC curve

38.4V 9.9Ah 12S3P AGV Battery

Discharge SOC curve

38.4V 9.9Ah 12S3P AGV Battery

30A charging current curve

38.4V 9.9Ah 12S3P AGV Battery

40A discharge current curve

38.4V 9.9Ah 12S3P AGV Battery

Different DOD cycle life diagram(+1C/-0.5C@25℃)

38.4V 9.9Ah 12S3P AGV Battery

2D Drawing

2D Drawing
