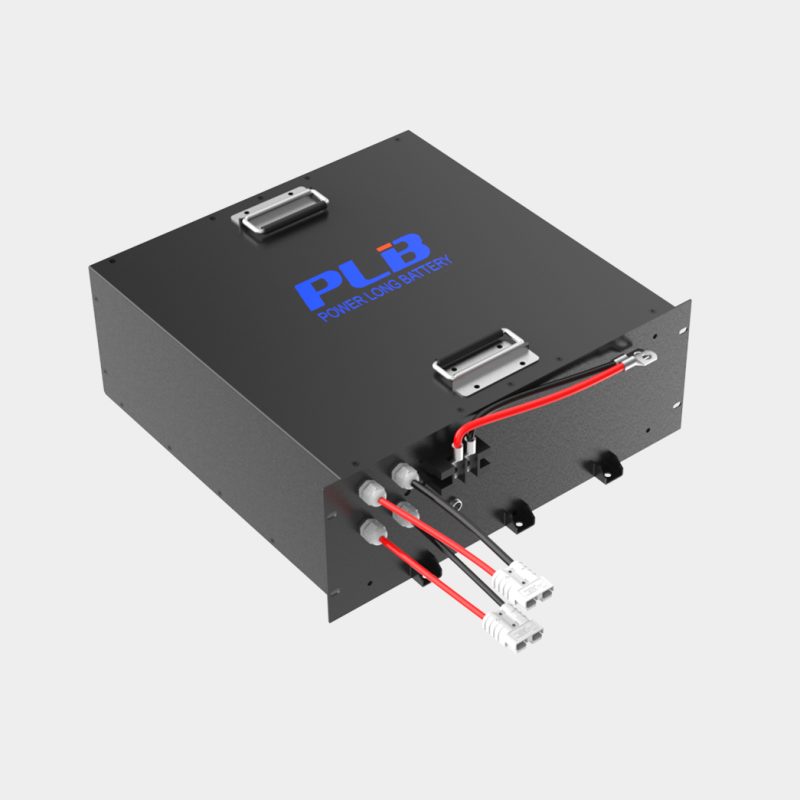

25.6V 66Ah 8S20P AGV Battery
  • 25.6V 66Ah 8S20P AGV Battery
  • 25.6V 66Ah 8S20P AGV Battery
  • 25.6V 66Ah 8S20P AGV Battery
Electrical Specifications
Nominal Voltage25.6V
Nominal Voltage66Ah
Energy1689.6WH
Internal Resistance≤30mΩ
Self Discharge<1% Per Month
Series and Parallel/
Mechanical Specifications
Dimensions (L x W x H)472*280*180mm
Weight30kg
TerminalAnderson SB50
Case MaterialSPCC
IP RatingIP42
Cells26650 – LiFePO4
Discharge Specification
Max Continuous Discharge Current60A
Max Instantaneous Discharge Current/
BMS Discharge Protection Current80A
Overdischarge Protection Voltage17.6V
Overdischarge Recovery Voltage20V
Short Circuit Protection≤600uS
Charge Specifications
Charge Current30A
Max Charge Current60A
Charge Voltage29.2V
Overcharge Protection Voltage30V
Overcharge Recovery Voltage27.2V
Equalization Turn-on Voltage26.8V
Temperature Specification
Discharge Temperature-20-60℃
Charge Temperature0-45℃
Storage Temperature-5-45℃
BMS Over Temperature Protection65±5℃
BMS Over Temperature Protection Recovery55±5℃
Communication
CommunicationRS485


Compliance Specification
Certification/

Diagram of maximum current discharge at different temperatures

25.6V 66Ah 8S20P AGV Battery

Different constant power discharge curve

25.6V 66Ah 8S20P AGV Battery

Plot of multiplier temperature rise

25.6V 66Ah 8S20P AGV Battery

Cycle graphs of different DOD lifetime

Cycle graphs of different DOD lifetime

2D Drawing

2D Drawing
