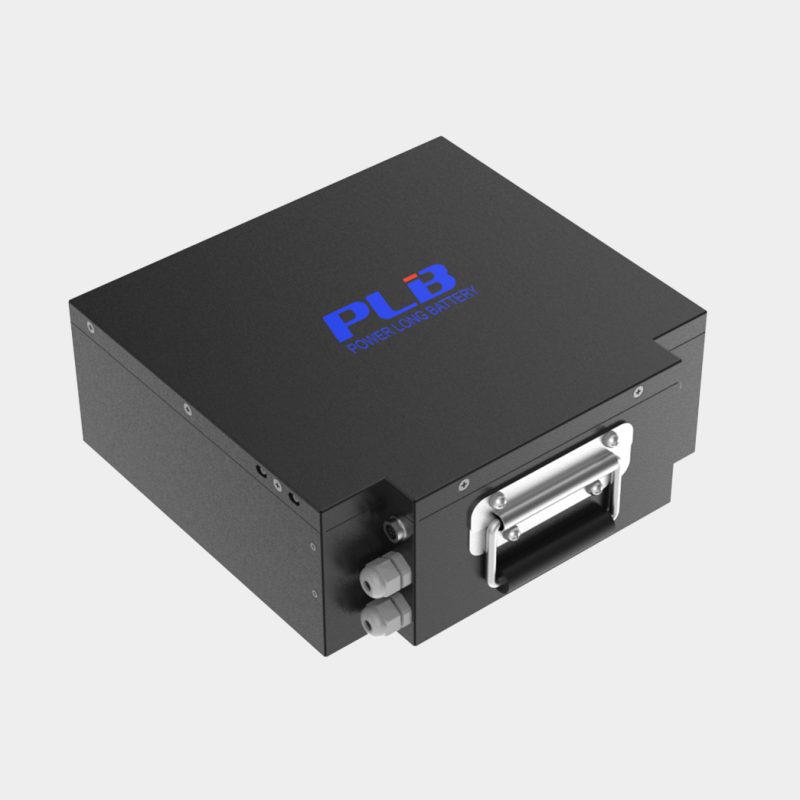

25.6V 43.2Ah 8S12P AGV Battery
  • 25.6V 43.2Ah 8S12P AGV Battery
  • 25.6V 43.2Ah 8S12P AGV Battery
  • 25.6V 43.2Ah 8S12P AGV Battery
Electrical Specifications
Nominal Voltage25.6V
Nominal Voltage42AH
Energy307.2WH
Internal Resistance≤45mΩ
Self Discharge<1% Per Month
Series and Parallel/
Mechanical Specifications
Dimensions (L x W x H)290*275*110MM
Weight14KG
Terminal5557-4R
Case MaterialSPCC
IP RatingIP42
Cells26650 – LiFePO4
Discharge Specification
Max Continuous Discharge Current20A
Max Instantaneous Discharge Current/
BMS Discharge Protection Current50A
Overdischarge Protection Voltage20V
Overdischarge Recovery Voltage24V
Short Circuit Protection600uS
Charge Specifications
Charge Current15A
Max Charge Current20A
Charge Voltage29.2V
Overcharge Protection Voltage30V
Overcharge Recovery Voltage28.8V
Equalization Turn-on Voltage27.2V
Temperature Specification
Discharge Temperature-20-60℃
Charge Temperature0-45℃
Storage Temperature-5-45℃
BMS Over Temperature Protection65±5℃
BMS Over Temperature Protection Recovery55±5℃
Communication
CommunicationRS485


Compliance Specification
Certification/

Charging SOC curve

25.6V 43.2Ah 8S12P AGV Battery

Discharge SOC curve

25.6V 43.2Ah 8S12P AGV Battery

30A charging current curve

25.6V 43.2Ah 8S12P AGV Battery

40A discharge current curve

25.6V 43.2Ah 8S12P AGV Battery

Different DOD cycle life diagram(+1C/-0.5C@25℃)

25.6V 43.2Ah 8S12P AGV Battery

2D Drawing

2D Drawing
