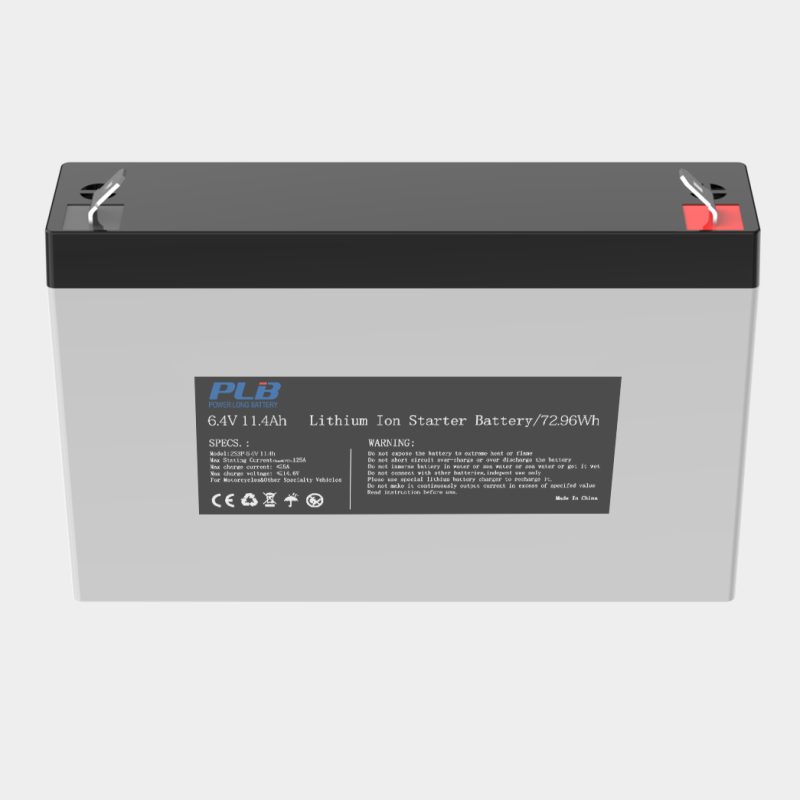

6.4V 11.4Ah 2S3P Lithium Battery
  • 6.4V 11.4Ah 2S3P Lithium Battery
  • 6.4V 11.4Ah 2S3P Lithium Battery
  • 6.4V 11.4Ah 2S3P Lithium Battery
Electrical Specifications
Nominal Voltage6.4V
Nominal Voltage11.4AH
Energy72.96WH
Internal Resistance≤90mΩ
Self Discharge<1% Per Month
Series and ParallelSupport 4 batteries in series
Mechanical Specifications
Dimensions (L x W x H)150*50*93MM
Weight0.6KG
TerminalF1 blade terminal
Case MaterialABS+PC
IP RatingIP65
Cells26650 – LiFePO4
Discharge Specification
Max Continuous Discharge Current10A
Max Instantaneous Discharge Current/
BMS Discharge Protection Current35A
Overdischarge Protection Voltage4.2V
Overdischarge Recovery Voltage4.6V
Short Circuit Protection600±200uS
Charge Specifications
Charge Current2.28A
Max Charge Current10A
Charge Voltage7.3V
Overcharge Protection Voltage7.5V
Overcharge Recovery Voltage7.2V
Equalization Turn-on Voltage7.2V
Temperature Specification
Discharge Temperature -20-60℃
Charge Temperature 0-45℃
Storage Temperature -5-45℃
BMS Over Temperature Protection 65±5℃
BMS Over Temperature Protection Recovery 55±5℃
Communication
Communication/


Compliance Specification
CertificationUN38.3

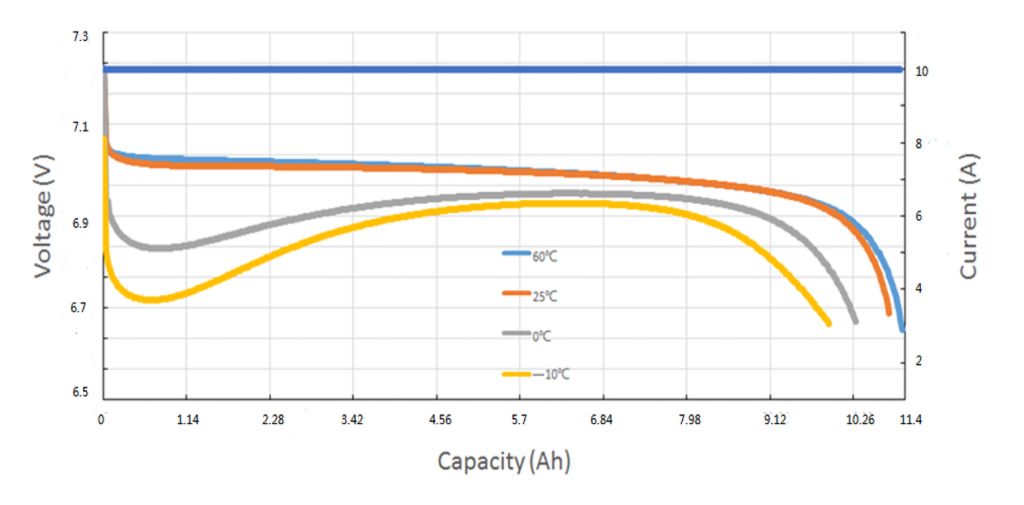

1C discharge curves at different temperatures

6.4V 11.4Ah 2S3P Lithium Battery

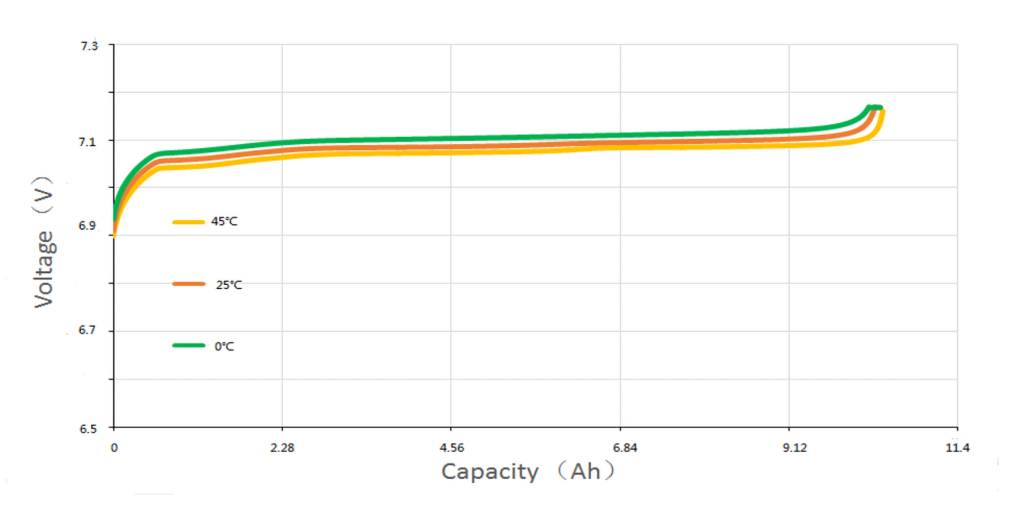

1C charge curves at different temperatures

6.4V 11.4Ah 2S3P Lithium Battery

Cycle curve at diferent DOD (+1C/-0.5C,@25℃)

6.4V 11.4Ah 2S3P Lithium Battery

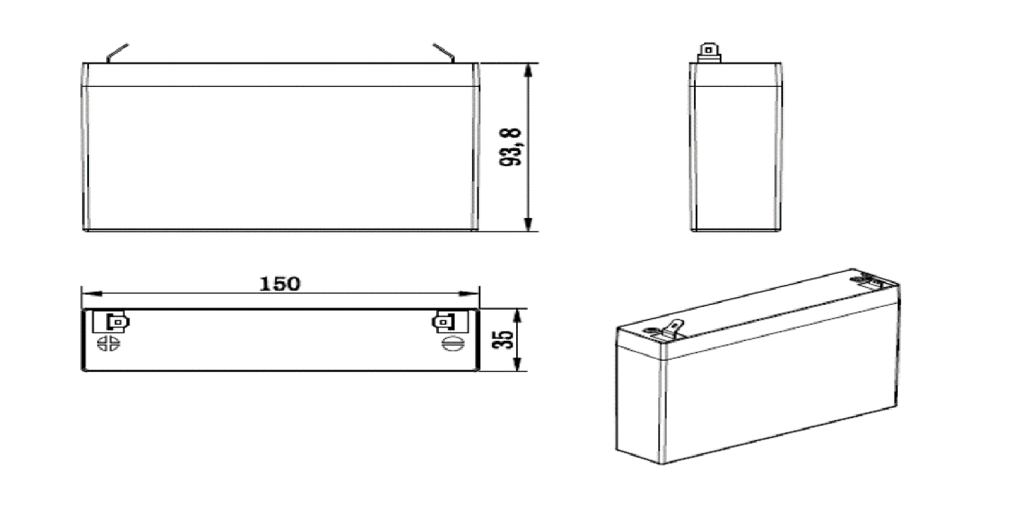

2D Drawing

6.4V 11.4Ah 2S3P Lithium Battery
