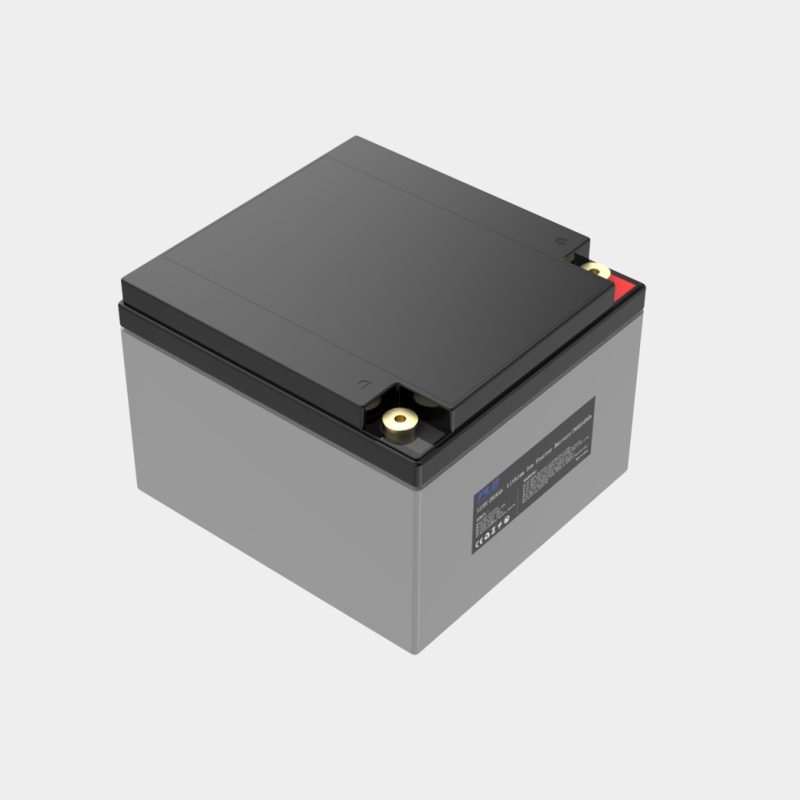

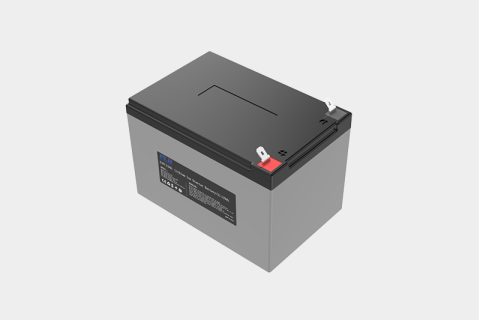

12.8V 28.8Ah 4S8P Lithium Battery
  • 12.8V 28.8Ah 4S8P Lithium Battery
  • 12.8V 28.8Ah 4S8P Lithium Battery
  • 12.8V 28.8Ah 4S8P Lithium Battery
Electrical Specifications
Nominal Voltage12.8V
Nominal Capacity28.8Ah
Energy368.64wh
Internal Resistance≤60mΩ
Self Discharge<1% Per Month
Series and ParallelSupport 4 batteries in series
Mechanical Specifications
Dimensions (L x W x H)125*166*176MM
Weight3.6kg
TerminalM6 Nut
Case MaterialABS+PC
IP RatingIP65
Cells26650 – LiFePO4
Discharge Specification
Max Continuous Discharge Current30A
Max Instantaneous Discharge Current/
BMS Discharge Protection Current120A
Overdischarge Protection Voltage8.4V
Overdischarge Recovery Voltage9.2V
Short Circuit Protection600±200uS
Charge Specifications
Charge Current5.76A
Max Charge Current28.8A
Charge Voltage14.6V
Overcharge Protection Voltage15V
Overcharge Recovery Voltage14.4V
Equalization Turn-on Voltage14.4V
Temperature Specification
Discharge Temperature -20-60℃
Charge Temperature 0-45℃
Storage Temperature -5-45℃
BMS Over Temperature Protection 65±5℃
BMS Over Temperature Protection Recovery 55±5℃
Communication
Communication/


Compliance Specification
CertificationUN38.3

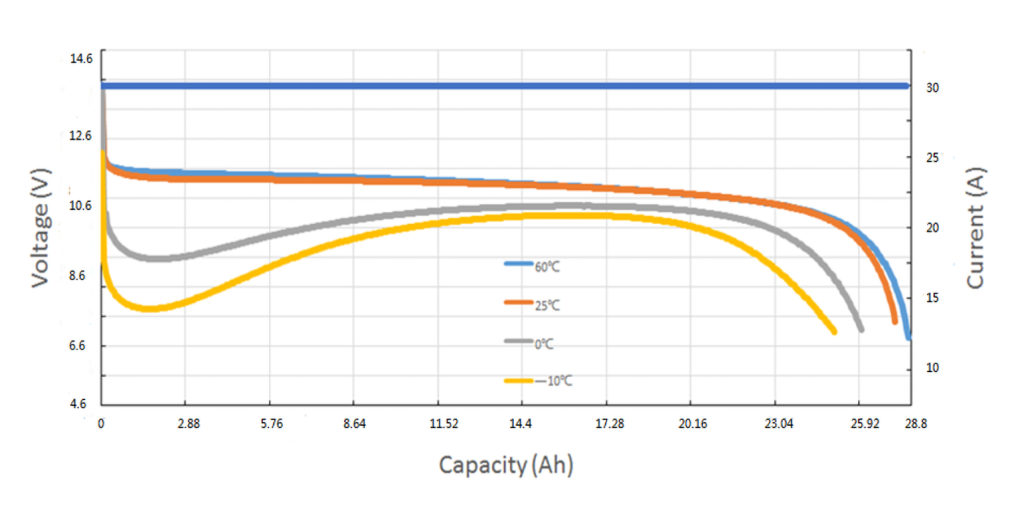

1C discharge curves at different temperatures

12.8V 28.8Ah 4S8P Lithium Battery

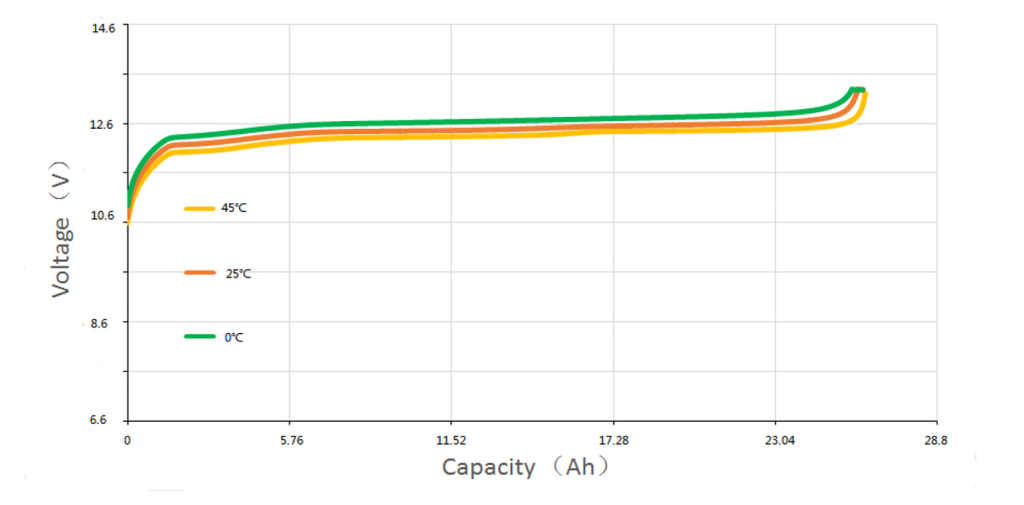

1C charge curves at different temperatures

12.8V 28.8Ah 4S8P Lithium Battery

Cycle curve at diferent DOD (+1C/-0.5C,@25℃)

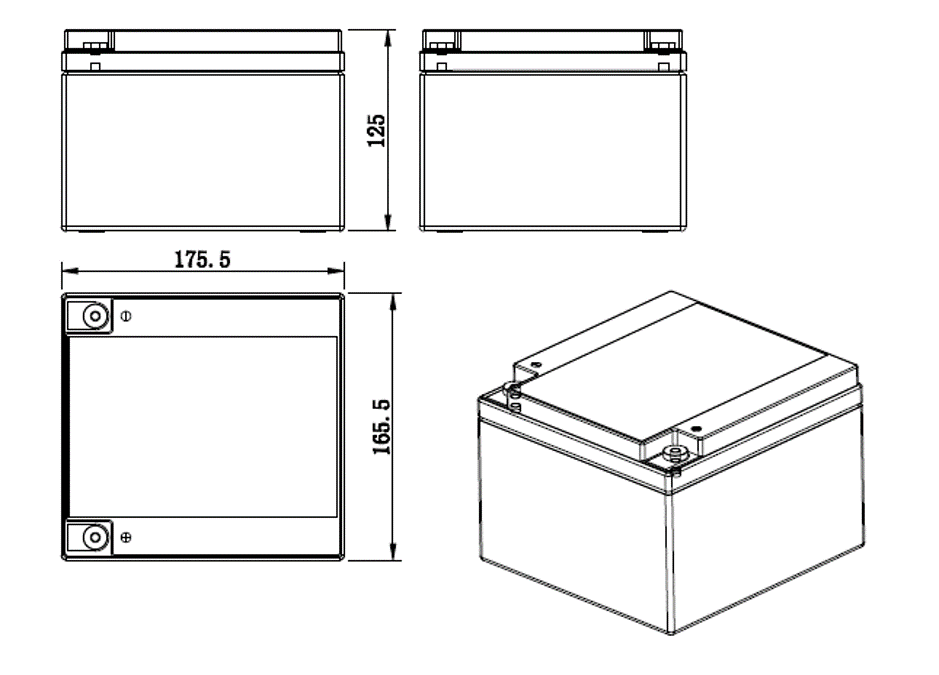

2D Drawing

12.8V 28.8Ah 4S8P Lithium Battery
