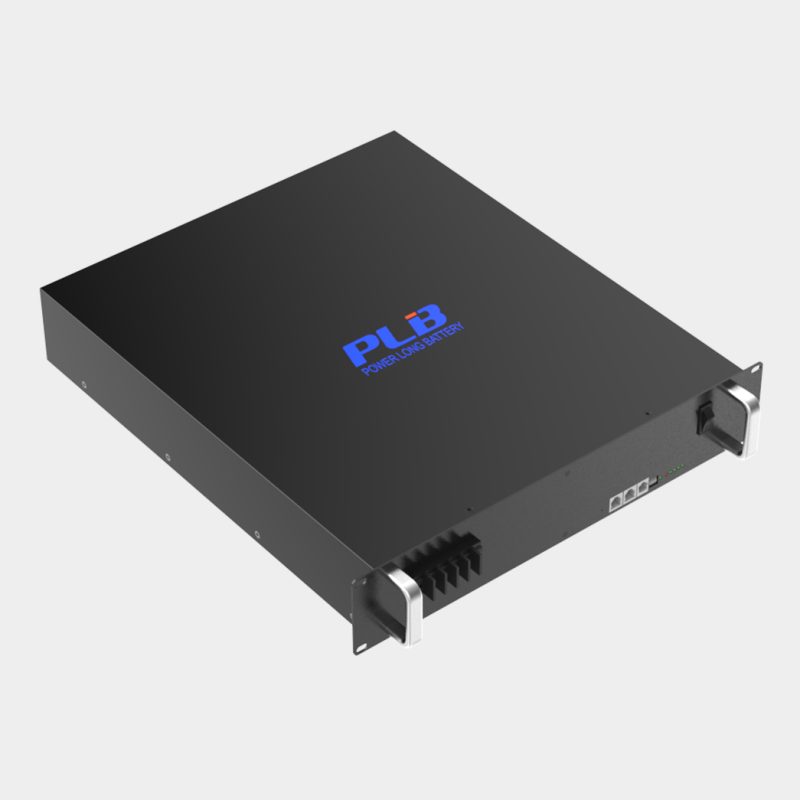

38.4V 68AH 12S20P Home Energy Storage Battery
  • 38.4V 68AH 12S20P Home Energy Storage Battery
  • 38.4V 68AH 12S20P Home Energy Storage Battery
  • 38.4V 68AH 12S20P Home Energy Storage Battery
Electrical Specifications
Nominal Voltage38.4V
Nominal Voltage68Ah
Energy2611.2WH
Internal Resistance≤30mΩ
Self Discharge<1% Per Month
Series and Parallel16 Batteries in Parallel
Mechanical Specifications
Dimensions (L x W x H)380*340*180mm
Weight28KG
TerminalAnderson SB50
Case MaterialSPCC
IP RatingIP42
Cells26650 – LiFePO4
Discharge Specification
Max Continuous Discharge Current40A
Max Instantaneous Discharge Current/
BMS Discharge Protection Current180A
Overdischarge Protection Voltage25.2V
Overdischarge Recovery Voltage27.6V
Short Circuit Protection≤600uS
Charge Specifications
Charge Current34A
Max Charge Current40A
Charge Voltage44.4V
Overcharge Protection Voltage45V
Overcharge Recovery Voltage43.2V
Equalization Turn-on Voltage43.2V
Temperature Specification
Discharge Temperature-20-60℃
Charge Temperature0-45℃
Storage Temperature-5-45℃
BMS Over Temperature Protection65±5℃
BMS Over Temperature Protection Recovery55±5℃
Communication
CommunicationRS485/RS232


Compliance Specification
Certification

0.2c, 0.5c, 1c Discharge Curve

38.4V 68AH 12S20P Home Energy Storage Battery

Discharge Curves at Different Temperatures: 60°c, 25°c, 0°c, -10°c

38.4V 68AH 12S20P Home Energy Storage Battery

1c Discharge Temperature Rise

38.4V 68AH 12S20P Home Energy Storage Battery

Charging Curves at Different Temperatures: 45°c, 25°c, 0°c

38.4V 68AH 12S20P Home Energy Storage Battery

2D Drawing

38.4V 68AH 12S20P Home Energy Storage Battery
