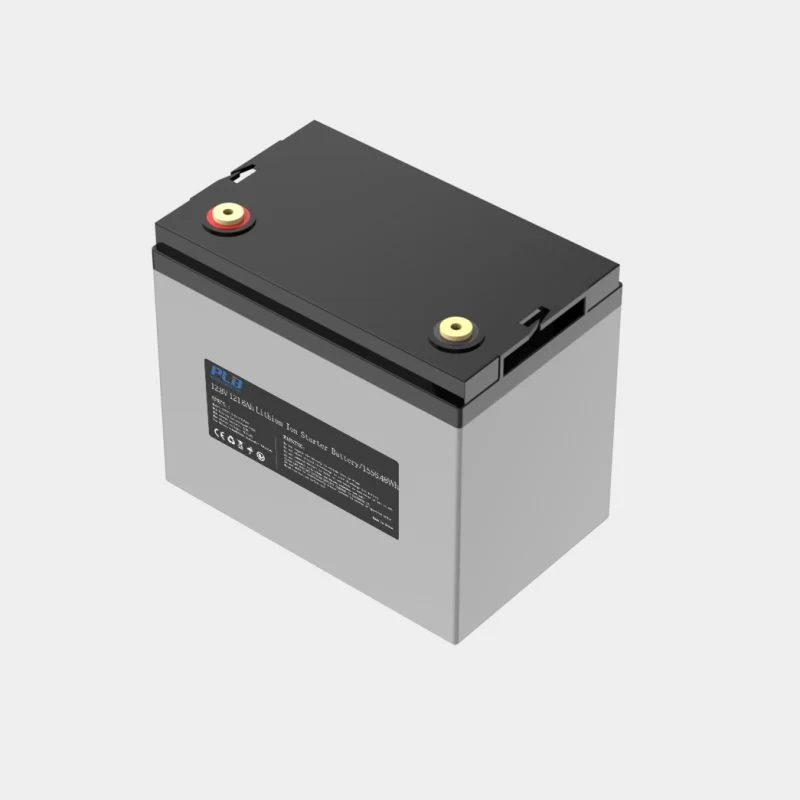

12.8V 100Ah 4S2P lithium battery
  • 12.8V 100Ah 4S2P lithium battery
  • 12.8V 100Ah 4S2P lithium battery
  • 12.8V 100Ah 4S2P lithium battery
Electrical Specifications
Nominal Voltage12.8V
Nominal Voltage100Ah
Energy1280Wh
Internal Resistance70MΩ
Self Discharge<1% Per Month
Series and ParallelSupport 4 batteries in series
Mechanical Specifications
Dimensions (L x W x H)330*173*218mm
Weight12.5Kg
TerminalM8 Nut
Case MaterialABS+PC
IP RatingIP65
Cells26650 LiFePO4
Discharge Specification
Max Continuous Discharge Current100A
Max Instantaneous Discharge Current/
BMS Discharge Protection Current/
Overdischarge Protection Voltage8.4V
Overdischarge Recovery Voltage9.2V
Short Circuit Protection600±200uS
Charge Specifications
Charge Current20A
Max Charge Current100A
Charge Voltage14.6V
Overcharge Protection Voltage15V
Overcharge Recovery Voltage14.4V
Equalization Turn-on Voltage14.4V
Temperature Specification
Discharge Temperature -20-60℃
Charge Temperature 0-45℃
Storage Temperature -5-45℃
BMS Over Temperature Protection 65±5℃
BMS Over Temperature Protection Recovery 55±5℃
Communication
Communication/


Compliance Specification
CertificationUN38.3

1C discharge curves at different temperatures

1C discharge curves at different temperatures

1C charge curves at different temperatures

1C charge curves at different temperatures

Cycle curve at diferent DOD (+1C/-0.5C,@25℃)

Cycle curve at diferent DOD (+1C/-0.5C,@25℃)

2D Drawing

2D Drawing
