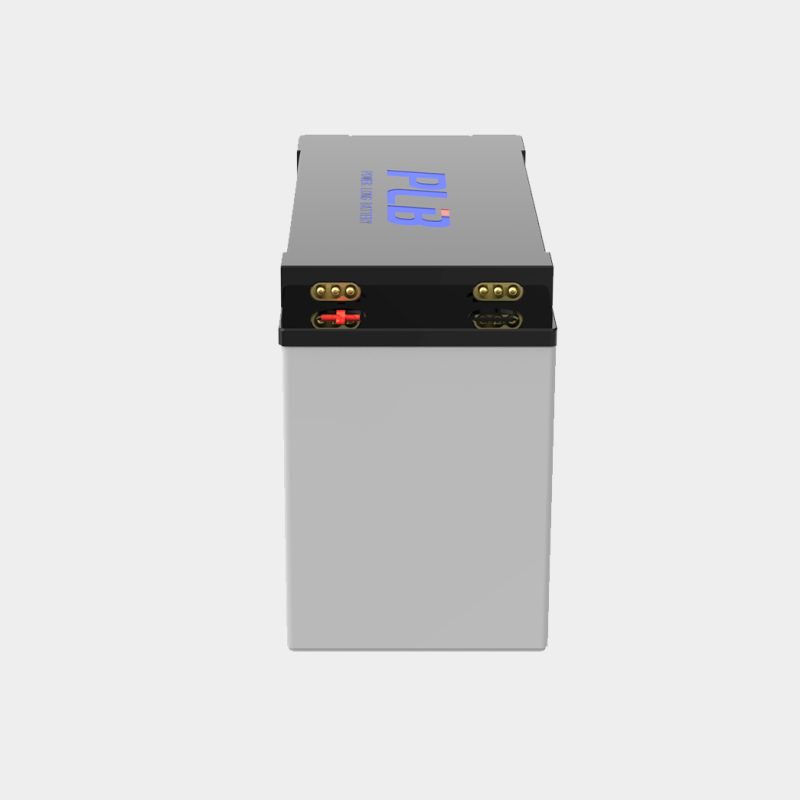

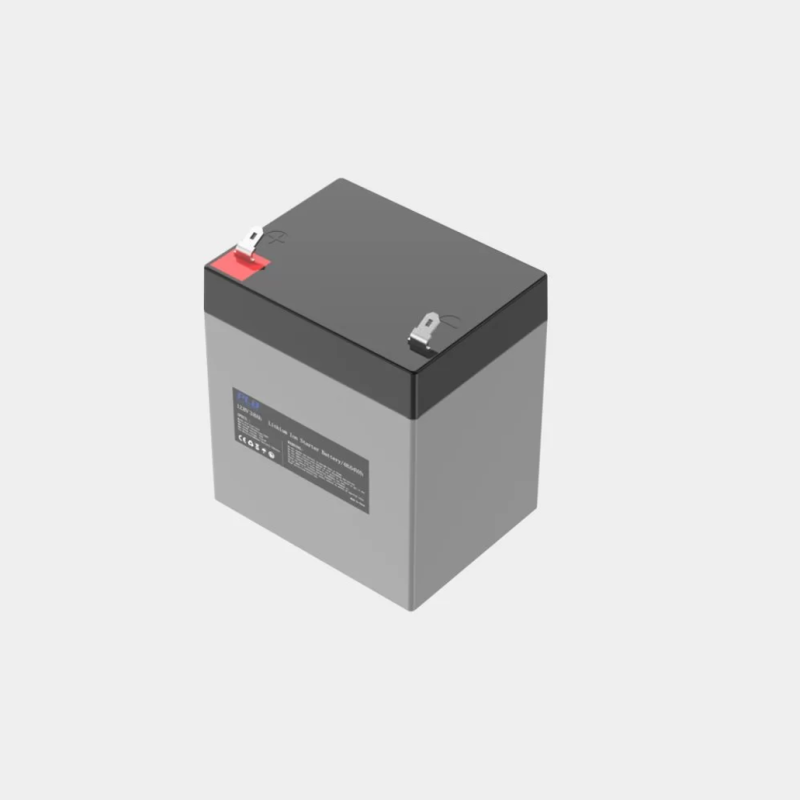

12.8V 6Ah 4S2P UPS Battery
  • 12.8V 6Ah 4S2P UPS Battery
  • 12.8V 6Ah 4S2P UPS Battery
  • 12.8V 6Ah 4S2P UPS Battery
  • 12.8V 6Ah 4S2P UPS Battery
Electrical Specifications
Nominal Voltage12.8V
Nominal Voltage6Ah
Energy76.8Wh
Internal Resistance30MΩ
Self Discharge<1% Per Month
Series and ParallelSupport 4 in series, 10 in parallel
Mechanical Specifications
Dimensions (L x W x H)150*68*94mm
Weight1Kg
TerminalM5 nut
Case MaterialABS+PC
IP Rating/
Cells26650 – LiFePO4
Discharge Specification
Max Continuous Discharge Current45A
Max Instantaneous Discharge Current50A
BMS Discharge Protection Current125A
Overdischarge Protection Voltage9.2V
Overdischarge Recovery Voltage10.8V
Short Circuit Protection600uS
Charge Specifications
Charge Current3A
Max Charge Current6A
Charge Voltage14.4V
Overcharge Protection Voltage14.6V
Overcharge Recovery Voltage14.2V
Equalization Turn-on Voltage14V
Temperature Specification
Discharge Temperature-20-60℃
Charge Temperature0-45℃
Storage Temperature-5-45℃
BMS Over Temperature Protection65±5℃
BMS Over Temperature Protection Recovery55±5℃
Communication
Communication/


Compliance Specification
CertificationUN38.3

Diagram of maximum current discharge at different temperatures

Diagram of maximum current discharge at different temperatures

Different constant power discharge curve

12.8V 6Ah 4S2P UPS Battery

Plot of multiplier temperature rise

12.8V 6Ah 4S2P UPS Battery

Cycle graphs of different DOD lifetime

12.8V 6Ah 4S2P UPS Battery

2D Drawing

2D Drawing
