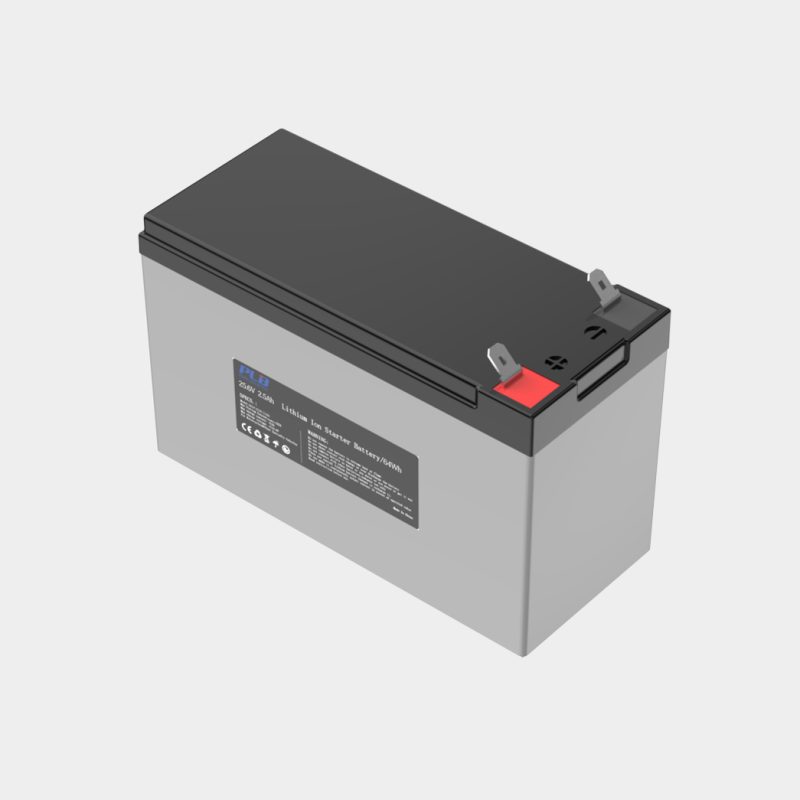

UPS Standard lithium battery

——Replace lead acid battery

Support module series and parallel
Internal equalized device
Float charging design
Over charge/over discharge/over temp/over current/short circuit protection

Inquiry

Specifications：

Model NO.

12.8V6Ah

25.6V2.5Ah

25.6V9Ah

38.4V6Ah

48V6Ah

76.8V3Ah

Voltage	12.8V	25.6V	25.6V	38.4V	48V	76.8V
Capacity	6Ah	2.5Ah	9Ah	6Ah	6Ah	3Ah(2.5Ah)
Operating voltage	10V~14.4V	20V~28.8V	20V~28.8V	30V~43.2V	40V~57.6V	60V~86.4V
Standard Charge Current	6A	9A	9A	6A	6A	3A(2.5A)
Max Continuous Discharge Current	45A	45A	45A	45A	45A	21A(45A)
Battery type	LiFePO4（10C discharge）
Design life	11 years
IP rating	IP65
Charge temperature	0～45℃
Discharge temperature	-20～60℃
Module parallel	4S4P	3S4P	3S4P	2S4P	4P	4P
Dimension	1506894mm	1506894mm	18177167mm
Weight	1KG	1KG	2.9KG	2.9KG	3.4KG	2.9KG
Standard Compliance	UL1973、IEC62619、UN38.3
