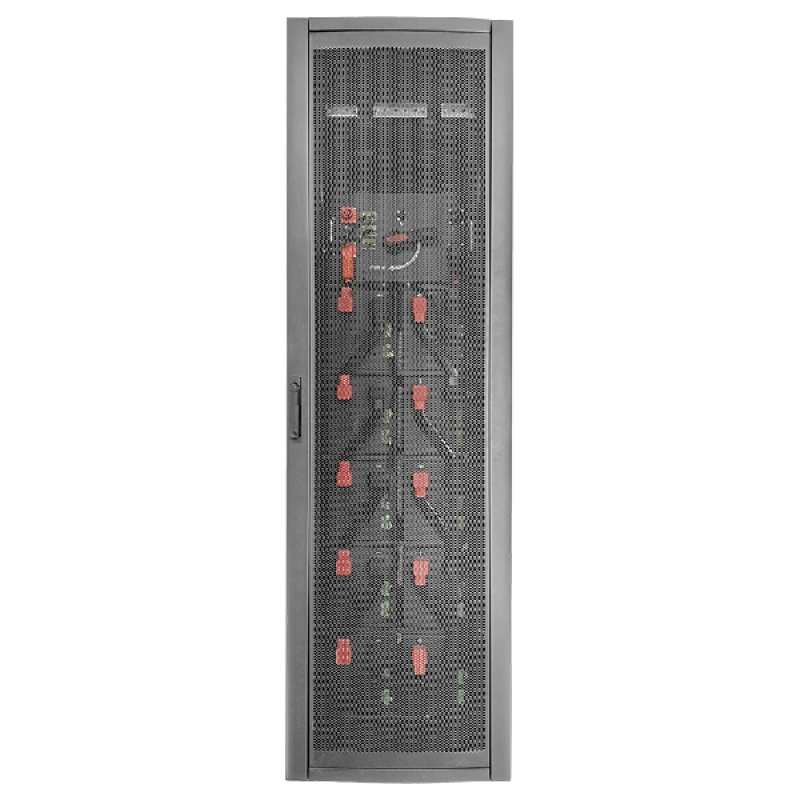

High-rate lithium battery system—max 500A+ at single cabinet

——Large current discharge，max 500A+ at single cabinet

Small footprint, long service life.
Equipped with a PACK-level fire extinguishing system
Directly replace lead-acid batteries with the same voltage.
Utilize a two-tier/three-tier BMS architecture to comprehensively ensure system safety.

Inquiry

Specifications：

Facebook Twitter Youtube Linkedin Whatsapp
Model NO.204.8V48Ah256V48Ah307.2V48Ah358.4V48Ah409.6V48Ah512V48Ah
Voltage 204.8V 256V 307.2V 358.4V 409.6V(±204.8V) 512V(±256V)
Max output power 102.4kW 128kW 153.6kW 179.2kW 204.8kW 256kW
Power 8 .19kWh 10.24kWh 12.29kWh 14.34kWh 16.38kWh 20.48kWh
Battery Pack Series 4S 5S 6S 7S 8S 10S
Series Cell Count 64S 80S 96S 112S 128S 160S
Max charge voltage 230.4V 288V 345.6V 403.2V 460.8V 576V
Discharge cut-off voltage 160V 200V 240V 280V 320V 400V
Capacity 40Ah
Max charge current 40A
Max discharge current 500A
Backup time >4mins
Dimension（mm）W*D*H 600*1000*1600 600*1000*1600 600*1000*1600 600*1000*2000 600*1000*2000 600*1000*2000
Weight（kg） 　290Kg 325Kg 360Kg 445Kg 480Kg 520Kg
Communication RS485、FE、Dry Contacts
Protection Over charge/over discharge/over temperature/over current/short circuit protection
Standard Compliance IEC62619、UN38.3、UL1973
Max parallel quantity 6
Display mode LCD
