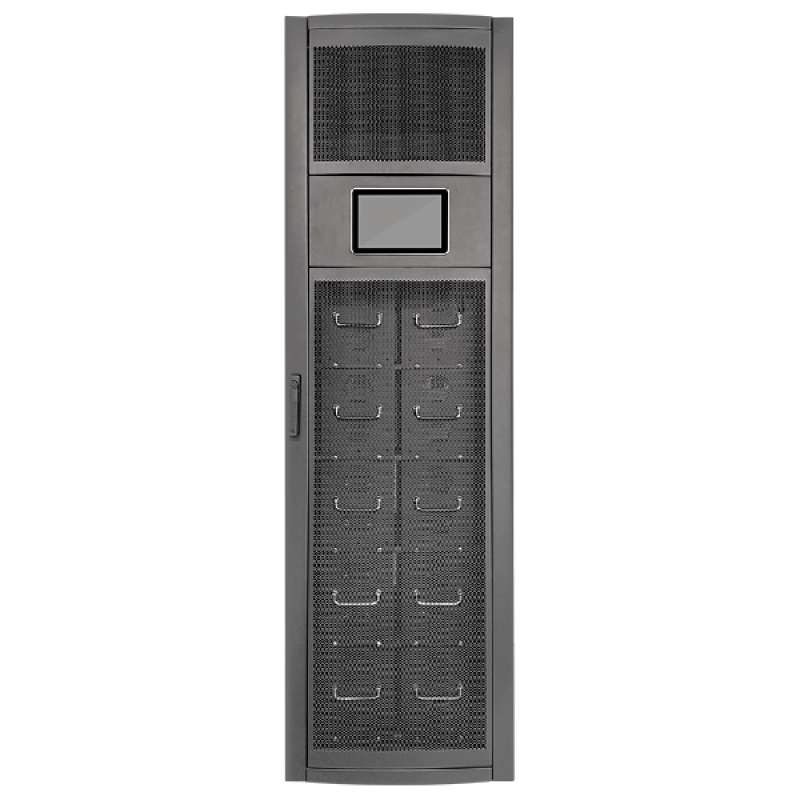

High-rate lithium battery system—max 400A+ at single cabinet

——Large current discharge，max 400A+ at single cabinet

Small footprint, long service life.
Equipped with a PACK-level fire extinguishing system.
Directly replace lead-acid batteries with the same voltage.
Utilize a two-tier/three-tier BMS architecture to comprehensively ensure system safety.

Inquiry

Specifications

Model.NO

204.8V48Ah

256V48Ah

307.2V48Ah

358.4V48Ah

409.6V48Ah

512V48Ah

Voltage	204.8V	256V	307.2V	358.4V	409.6V(±204.8V)	512V(±256V)
Max output power	82kW	102kW	122kW	143kW	164kW	205kW
Power	9.83kWh	12.29kWh	14.75kWh	17.2kWh	19.66kWh	24.58kWh
Battery Pack Series	4S	5S	6S	7S	8S	10S
Series Cell Count	64S	80S	96S	112S	128S	160S
Max charge voltage	230.4V	288V	345.6V	403.2V	460.8V	576V
Discharge cut-off voltage	160V	200V	240V	280V	320V	400V
Capacity	48Ah
Max charge current	48A
Max discharge current	400A
Backup time	>5mins
Dimension（mm） WDH	60010001600	60010001600	60010001600	60010002000	60010002000	60010002000
Dimension（mm） WDH
Weight（kg）	290Kg	325Kg	360Kg	445Kg	480Kg	520Kg
Communication	RS485、FE、Dry Contacts
Protection	Over charge/over discharge/over temperature/over current/short circuit protection
Standard Compliance	IEC62619、UN38.3、UL1973
Max parallel quantity	6
Display mode	LCD
