24V 100Ah LiFePO₄ lithium battery

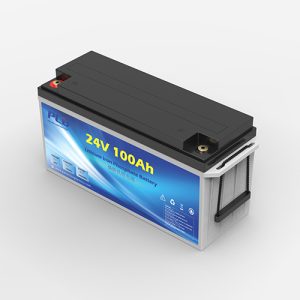

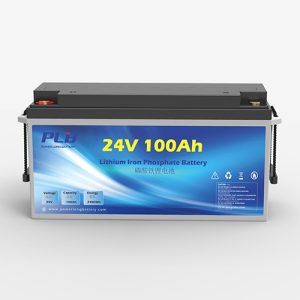

24V 100Ah LiFePO₄ Lithium Battery – Efficient, Lightweight, and Built to Last
The 24V 100Ah LiFePO₄ lithium battery delivers 2.56kWh of reliable energy storage in a compact and lightweight form. Engineered for long-lasting performance and unmatched safety, it’s ideal for solar energy systems, RVs, marine power, backup systems, and mobile equipment. Featuring advanced Lithium Iron Phosphate (LiFePO₄) technology, this battery is a modern upgrade over lead-acid systems, offering higher efficiency, zero maintenance, and a much longer lifespan.
What Is a 24V 100Ah LiFePO₄ Battery?
This battery combines deep-cycle capable LiFePO₄ cells with a smart Battery Management System (BMS) to ensure consistent, safe, and stable power delivery. It supports high-current applications while maintaining low self-discharge and superior thermal performance.
Key Features
Energy Capacity: 2.56kWh
Long Cycle Life: 6,000+ cycles @ 80% depth of discharge (DoD)
Built-in Smart BMS: Comprehensive protection against overcharge, over-discharge, overcurrent, short circuits, and overheating
High Efficiency: >98% round-trip energy efficiency
Fast Charging & Discharging Support
Maintenance-Free: No fluid checks, acid spills, or corrosion
Lightweight Design: Up to 70% lighter than lead-acid alternatives
Eco-Friendly: Non-toxic, recyclable, RoHS and CE certified
Custom Options Available: Terminal type, casing, communication protocols (RS485/CAN)
Typical Technical Specifications
| Parameter | Specification |
|---|---|
| Nominal Voltage | 25.6V |
| Rated Capacity | 100Ah |
| Total Energy | 2.56kWh |
| Charge Voltage | 29.2V |
| Cut-off Voltage | 20.0V |
| Max Charge Current | Up to 50A (adjustable) |
| Max Discharge Current | Up to 100A (adjustable) |
| Operating Temperature | -20°C to +60°C |
| Cycle Life | 6,000+ cycles @ 80% DoD |
| Protection Level | IP65 or higher (optional) |
| Approx. Weight | 18–22kg |
Common Applications
Off-Grid & Hybrid Solar Systems
Recreational Vehicles (RVs) and Campers
Electric Boats and Marine Equipment
Telecom Backup Systems
Uninterruptible Power Supply (UPS)
Portable Power Stations and Tool Batteries
Lightweight Industrial Applications
LiFePO₄ vs. Lead-Acid Battery Comparison
| Feature | LiFePO₄ 24V 100Ah | Lead-Acid Battery |
|---|---|---|
| Usable Capacity | Up to 100% | ~50% |
| Cycle Life | 6,000+ cycles | 500–1,000 cycles |
| Charging Time | 2–4 hours | 6–10 hours |
| Maintenance | None | Regular maintenance needed |
| Weight | Lightweight | Heavier |
| Safety | High thermal stability | Risk of acid spills/fire |
The 24V 100Ah LiFePO₄ lithium battery is a powerful and versatile energy solution that delivers dependable, long-lasting performance with minimal upkeep. Whether you’re powering a solar array, electric vehicle, or backup system, this battery offers unmatched efficiency, safety, and value.
Power smarter with LiFePO₄—efficient, durable, and future-ready.
