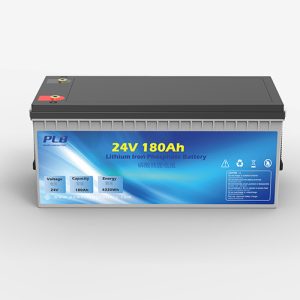

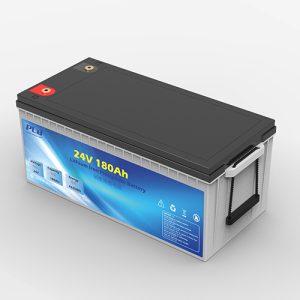

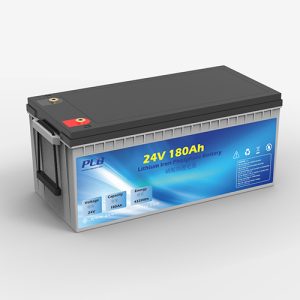

24V 180Ah LiFePO₄ lithium battery
24V 180Ah LiFePO₄ Lithium Battery – Compact Power for Demanding Applications
The 24V 180Ah LiFePO₄ lithium battery offers a reliable and efficient energy storage solution with a total capacity of 4.6kWh, making it ideal for off-grid solar systems, RVs, marine power, telecom backup, and industrial use. Built with advanced Lithium Iron Phosphate (LiFePO₄) chemistry, this battery is engineered for long service life, high safety, and zero maintenance.
What Is a 24V 180Ah LiFePO₄ Battery?
This battery features LiFePO₄ cells, known for their thermal stability, chemical safety, and deep cycle performance. With a significantly longer lifespan and higher energy efficiency compared to lead-acid batteries, the 24V 180Ah battery is a dependable upgrade for any application requiring robust and compact power.
Key Features
Total Energy: 4.6kWh
Long Cycle Life: 6,000+ cycles @ 80% DoD
High Efficiency: 98%+ charge/discharge efficiency
Smart BMS Integrated: Built-in Battery Management System for protection from overcharge, over-discharge, short circuit, and temperature extremes
Fast Charging: Supports rapid charge/discharge rates
Lightweight & Space-Saving: Much lighter and smaller than equivalent lead-acid batteries
Maintenance-Free: No acid leaks, water refills, or corrosion
Eco-Friendly: Non-toxic, recyclable, RoHS/CE certified
Customizable Options: Terminal types, communication (CAN/RS485), enclosures
Typical Specifications
| Parameter | Specification |
|---|---|
| Nominal Voltage | 25.6V |
| Nominal Capacity | 180Ah |
| Total Energy | 4.6kWh |
| Charge Voltage | 29.2V |
| Discharge Cut-off | 20.0V |
| Max Charge Current | Up to 80A (customizable) |
| Max Discharge Current | Up to 120A (customizable) |
| Operating Temperature | -20°C to +60°C |
| Cycle Life | 6,000+ cycles @ 80% DoD |
| Protection Class | IP65 or above (optional) |
| Weight | ~30–38kg (varies by design) |
Application Scenarios
Off-Grid Solar Energy Storage
RVs and Camper Vans
Electric Boats and Marine Systems
Telecom Tower Backup
Industrial Equipment Power Supply
Uninterruptible Power Systems (UPS)
Portable Power Stations and Emergency Systems
Benefits Compared to Lead-Acid Batteries
| Feature | LiFePO₄ 24V 180Ah | Lead-Acid Battery |
|---|---|---|
| Cycle Life | 6,000+ cycles | 500–1,000 cycles |
| Usable Capacity | ~100% | ~50% |
| Maintenance | None | Requires regular care |
| Charging Speed | Fast | Slow |
| Weight & Size | Compact & lightweight | Bulky & heavy |
| Safety | High | Acid leak/fire risk |
The 24V 180Ah LiFePO₄ lithium battery delivers dependable, safe, and long-lasting energy—ideal for mobile and stationary applications alike. Its lightweight form factor, smart protection features, and maintenance-free operation make it a premium choice for users seeking reliable power and long-term value.
Invest in smarter energy—choose 24V LiFePO₄ technology.
