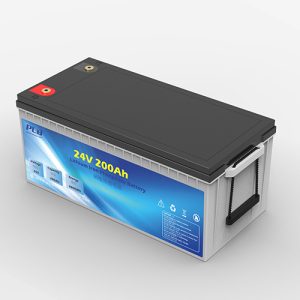

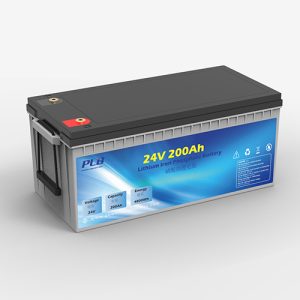

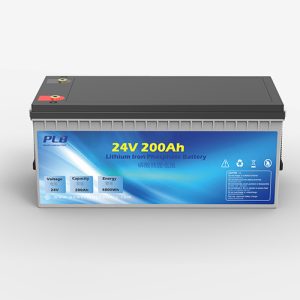

24v 200ah LiFePO₄ lithium battery
24V 200Ah LiFePO₄ Lithium Battery – Compact, Efficient, and Long-Lasting Power Solution
The 24V 200Ah LiFePO₄ lithium battery is a high-capacity, maintenance-free energy storage system designed for both residential and commercial applications. With a total energy capacity of 5.12kWh, it offers a reliable and efficient power source for solar energy systems, RVs, marine setups, backup power supplies, and more. Built with Lithium Iron Phosphate (LiFePO₄) technology, this battery provides unmatched safety, long life, and consistent performance.
What Is a 24V 200Ah LiFePO₄ Battery?
This battery is based on LiFePO₄ chemistry, widely recognized for its stability, non-toxicity, and long cycle life. With up to 6,000+ cycles, it drastically outperforms traditional lead-acid batteries while being significantly lighter and more energy-dense.
Key Features
Energy Storage: 5.12kWh
Extended Lifespan: Over 6,000 cycles at 80% depth of discharge
High Efficiency: Up to 98% round-trip efficiency
Built-in Smart BMS: Full protection against overcharge, over-discharge, overcurrent, short circuit, and temperature fluctuations
Fast Charging & Discharging: Supports high-rate applications
Zero Maintenance: No water topping, no acid leaks, no corrosion
Lightweight Design: Smaller and lighter than lead-acid equivalents
Eco-Friendly: Non-toxic, recyclable, RoHS/CE certified
Customizable Options: Terminal types, enclosures, communication interfaces (RS485, CAN, etc.)
Typical Specifications
| Parameter | Specification |
|---|---|
| Nominal Voltage | 25.6V |
| Nominal Capacity | 200Ah |
| Total Energy | 5.12kWh |
| Charge Voltage | 29.2V |
| Cut-off Voltage | 20.0V |
| Charge Current | Up to 100A (customizable) |
| Discharge Current | Up to 150A (customizable) |
| Operating Temp. Range | -20°C to +60°C |
| Cycle Life | 6,000+ cycles @ 80% DoD |
| Protection Rating | IP65 or higher (optional) |
| Approx. Weight | 35–45kg (varies by model) |
Ideal Applications
Solar Energy Storage (Off-grid & Hybrid)
RV and Camper Power Banks
Electric Boats and Marine Systems
Backup Power for Homes and Offices
Telecom Base Stations and Towers
Industrial Equipment and AGVs
Uninterruptible Power Supply (UPS)
Benefits Over Lead-Acid Batteries
| Feature | LiFePO₄ 24V 200Ah | Lead-Acid Equivalent |
|---|---|---|
| Cycle Life | 6,000+ cycles | 500–1,000 cycles |
| Usable Capacity | ~100% | ~50% |
| Maintenance | None | Regular maintenance |
| Weight | Much lighter | Heavier |
| Safety | Stable & safe | Risk of acid leaks |
| Charging Speed | Fast | Slow |
The 24V 200Ah LiFePO₄ lithium battery is an ideal energy storage choice for those seeking a compact, high-performance, and long-lasting solution. Whether for home energy storage, mobile living, or industrial systems, this battery delivers consistent power with minimal upkeep—making it a smart and sustainable investment.
