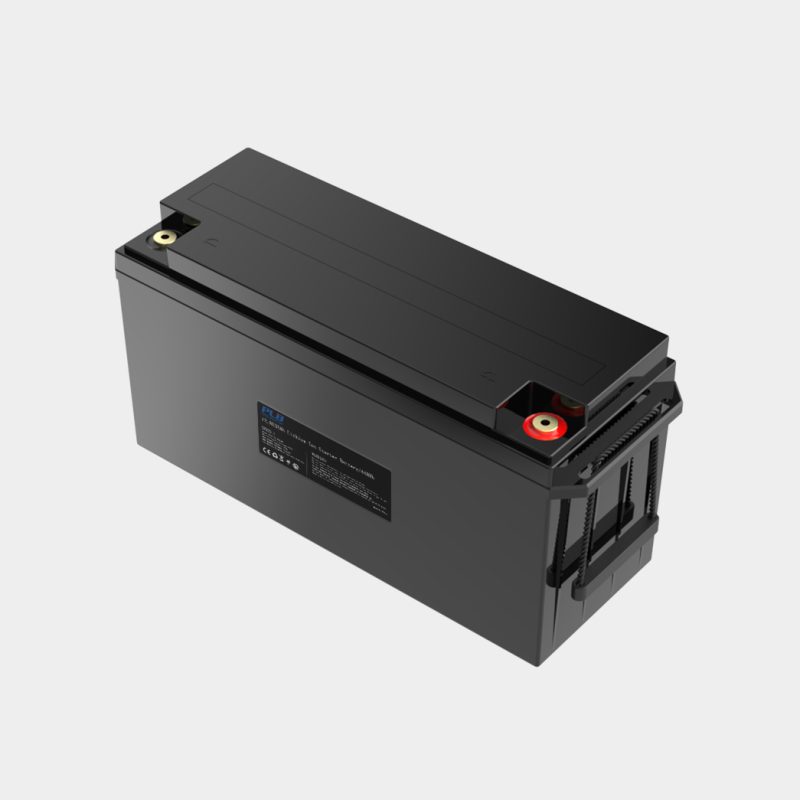

25.6V 100Ah 8S2P lithium battery
  • 25.6V 100Ah 8S2P lithium battery
  • 25.6V 100Ah 8S2P lithium battery
  • 25.6V 100Ah 8S2P lithium battery
Electrical Specifications
Nominal Voltage25.6V
Nominal Capacity100Ah
Energy2560Wh
Internal Resistance60MΩ
Self Discharge<1% Per Month
Series and ParallelSupport 2 batteries in series
Mechanical Specifications
Dimensions (L x W x H) 490*170*238mm
Weight 21.2Kg
Terminal M8 Nut
Case Material ABS+PC
IP Rating IP65
Cells LiFePO4 Prismatic
Discharge Specification
Max Continuous Discharge Current 100A
Max Instantaneous Discharge Current /
BMS Discharge Protection Current 500A
Overdischarge Protection Voltage 16.8V
Overdischarge Recovery Voltage 18.4V
Short Circuit Protection 600uS
Charge Specifications
Charge Current 20A
Max Charge Current 100A
Charge Voltage 29.2V
Overcharge Protection Voltage 30V
Overcharge Recovery Voltage 28.8V
Equalization Turn-on Voltage 28.8V
Temperature Specification
Discharge Temperature -20-60℃
Charge Temperature 0-45℃
Storage Temperature -5-45℃
BMS Over Temperature Protection 65±5℃
BMS Over Temperature Protection Recovery 55±5℃
Communication
Communication/


Compliance Specification
CertificationUN38.3

1C discharge curves at different temperatures

25.6V 100Ah 8S2P lithium battery

1C charge curves at different temperatures

25.6V 100Ah 8S2P lithium battery

Cycle curve at diferent DOD (+1C/-0.5C,@25℃)

2D Drawing

25.6V 100Ah 8S2P lithium battery
