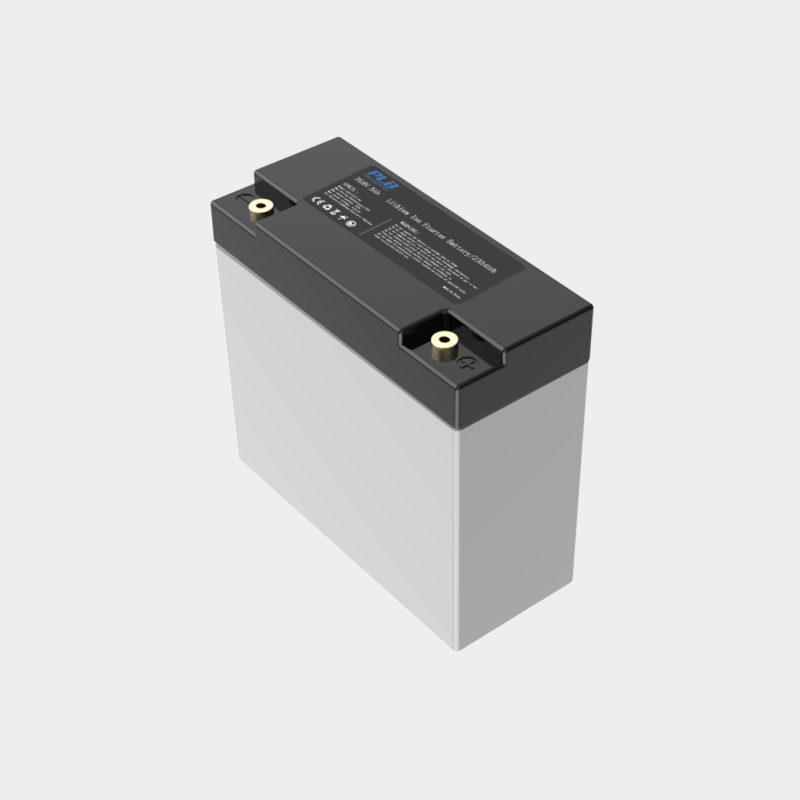

76.8V 3Ah 24S1P UPS Battery
  • 76.8V 3Ah 24S1P UPS Battery
  • 76.8V 3Ah 24S1P UPS Battery
  • 76.8V 3Ah 24S1P UPS Battery
Electrical Specifications
Nominal Voltage76.8V
Nominal Voltage3Ah
Energy230.4Wh
Internal Resistance230MΩ
Self Discharge<1% Per Month
Series and ParallelSupport multiple parallel
Mechanical Specifications
Dimensions (L x W x H)181*77*167mm
Weight2.9Kg
TerminalM5 nut
Case MaterialABS+PC
IP RatingIP45
Cells26650 – LiFePO4
Discharge Specification
Max Continuous Discharge Current21A
Max Instantaneous Discharge Current27(1s)
BMS Discharge Protection Current28A
Overdischarge Protection Voltage52.8V
Overdischarge Recovery Voltage64.8V
Short Circuit Protection600±200uS
Charge Specifications
Charge Current3A
Max Charge Current4A
Charge Voltage84V
Overcharge Protection Voltage90V
Overcharge Recovery Voltage85.2V
Equalization Turn-on Voltage82.8V
Temperature Specification
Discharge Temperature-20-60℃
Charge Temperature0-45℃
Storage Temperature-5-45℃
BMS Over Temperature Protection65±5℃
BMS Over Temperature Protection Recovery55±5℃
Communication
Communication/


Compliance Specification
CertificationUN38.3

Diagram of maximum current discharge at different temperatures

Diagram of maximum current discharge at different temperatures

Different constant power discharge curve

Different constant power discharge curve

Plot of multiplier temperature rise

Plot of multiplier temperature rise

Cycle graphs of different DOD lifetime

Cycle graphs of different DOD lifetime

2D Drawing

2D Drawing
