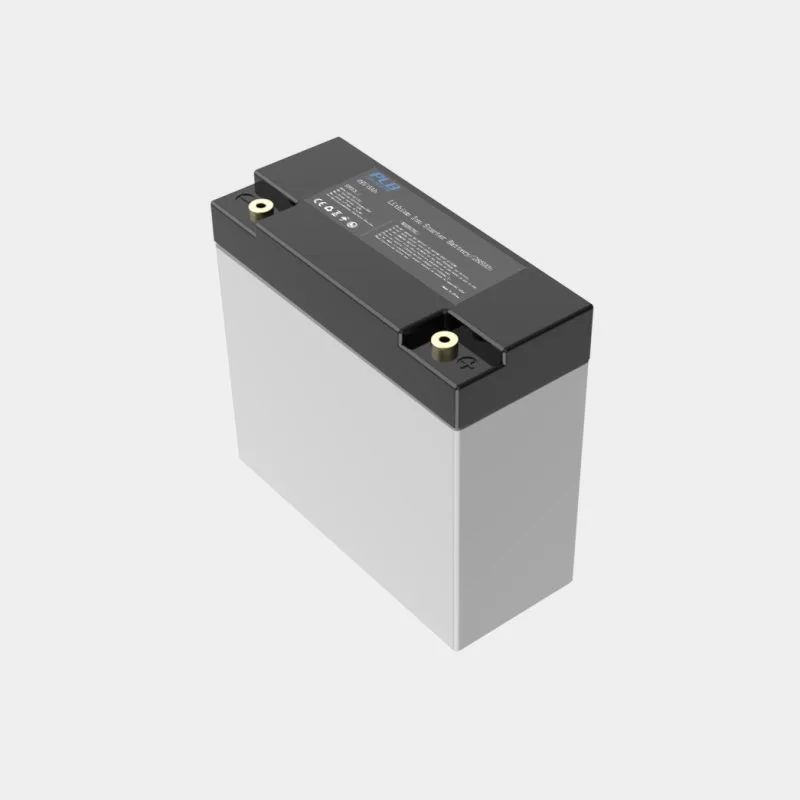

25.6V 9Ah 8S3P UPS Battery
  • 25.6V 9Ah 8S3P UPS Battery
  • 25.6V 9Ah 8S3P UPS Battery
  • 25.6V 9Ah 8S3P UPS Battery
Electrical Specifications
Nominal Voltage25.6V
Nominal Voltage9Ah
Energy230.4Wh
Internal Resistance≤35mΩ
Self Discharge<1% Per Month
Series and ParallelSupports up to 2 batteries in series
Mechanical Specifications
Dimensions (L x W x H)181*77*167mm
Weight2.9Kg
TerminalM5 Nut
Case MaterialABS+PC
IP RatingIP45
Cells26650 – LiFePO4
Discharge Specification
Max Continuous Discharge Current63A
Max Instantaneous Discharge Current87A(1s)
BMS Discharge Protection Current85A
Overdischarge Protection Voltage17.6V
Overdischarge Recovery Voltage21.6V
Short Circuit Protection500±200uS
Charge Specifications
Charge Current9A
Max Charge Current14A
Charge Voltage28V
Overcharge Protection Voltage30V
Overcharge Recovery Voltage28.4V
Equalization Turn-on Voltage27.6V
Temperature Specification
Discharge Temperature -20-60℃
Charge Temperature 0-45℃
Storage Temperature -5-45℃
BMS Over Temperature Protection 65±5℃
BMS Over Temperature Protection Recovery 55±5℃
Communication
Communication/


Compliance Specification
CertificationUN38.3

Diagram of maximum current discharge at different temperatures

Diagram of maximum current discharge at different temperatures

Different constant power discharge curve

Different constant power discharge curve

Plot of multiplier temperature rise

Plot of multiplier temperature rise

Cycle graphs of different DOD lifetime

Cycle graphs of different DOD lifetime

2D Drawing

2D Drawing
