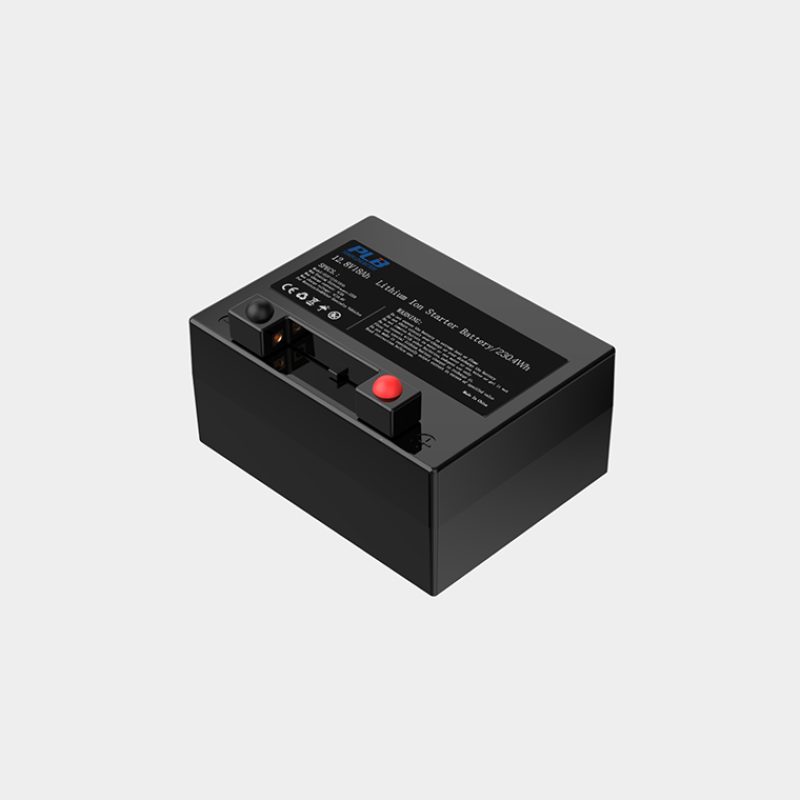

Lithium-Ion 12.8V 18Ah 4S5P Golf Cart Battery
  • Lithium-Ion 12.8V 18Ah 4S5P Golf Cart Battery
  • Lithium-Ion 12.8V 18Ah 4S5P Golf Cart Battery
  • Lithium-Ion 12.8V 18Ah 4S5P Golf Cart Battery
Electrical Specifications
Nominal Voltage12.8V
Nominal Capacity18Ah
Energy230.4Wh
Internal Resistance≤60mΩ
Self Discharge<1% Per Month
Series and Parallel4S5P
Cycle life2000
Mechanical Specifications
CellsIFR26650-3600mAh
Dimensions (L x W x H)168*127*101mm
Weight2.5Kg
TerminalRCA connector
Case MaterialABS+PC
IP RatingIP42
Discharge Specification
Discharge Current3.6A
Max Continuous Discharge Current25A
BMS Overdischarge Protection Current100A
Overdischarge Protection Voltage8.4V
Overdischarge Recovery Voltage9.2V
Short Circuit Protectionyes
Charge Specifications
Charge Current3.6A
Max Continuous charge Current5A
Charge Voltage14.6V
Overcharge Protection Voltage15V
Overcharge Recovery Voltage14.4V
Equalization Turn-on Voltage14.4V
Temperature Specification
Discharge Temperature -20-60℃
Charge Temperature 0-45℃
Storage Temperature -5-45℃
BMS Over Temperature Protection 65±5℃
BMS Over Temperature Protection Recovery 55±5℃
Communication
Communication/


Compliance Specification
CertificationUN38.3

Diagram of maximum current discharge at different temperatures

Lithium-Ion 12.8V 18Ah 4S5P Golf Cart Battery

Different constant power discharge curve

Lithium-Ion 12.8V 18Ah 4S5P Golf Cart Battery

Curve of maximum charging current

Lithium-Ion 12.8V 18Ah 4S5P Golf Cart Battery

Curve of maximum discharging current

Lithium-Ion 12.8V 18Ah 4S5P Golf Cart Battery

2D Drawing

Lithium-Ion 12.8V 18Ah 4S5P Golf Cart Battery
