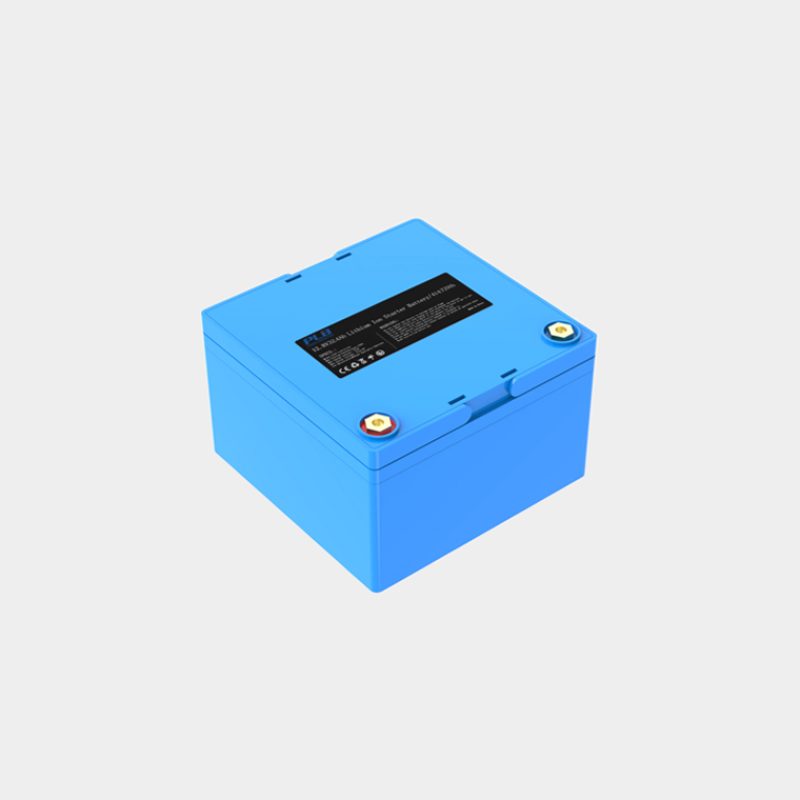

25.6V 61.2Ah 8S17P AGV Battery
  • 25.6V 61.2Ah 8S17P AGV Battery
  • 25.6V 61.2Ah 8S17P AGV Battery
  • 25.6V 61.2Ah 8S17P AGV Battery
Electrical Specifications
Nominal Voltage25.6V
Nominal Voltage61.2AH
Energy1566.72WH
Internal Resistance≤25mΩ
Self Discharge<1% Per Month
Series and Parallel/
Mechanical Specifications
Dimensions (L x W x H)320*160*210mm
Weight13.9KG
Terminal/
Case MaterialPVC
IP RatingIP42
Cells26650 – LiFePO4
Discharge Specification
Max Continuous Discharge Current80A
Max Instantaneous Discharge Current/
BMS Discharge Protection Current500A
Overdischarge Protection Voltage16.8V
Overdischarge Recovery Voltage18.4V
Short Circuit Protection≤600uS
Charge Specifications
Charge Current12A
Max Charge Current15A
Charge Voltage29.2V
Overcharge Protection Voltage30V
Overcharge Recovery Voltage28.8V
Equalization Turn-on Voltage28.8V
Temperature Specification
Discharge Temperature-20-60℃
Charge Temperature0-45℃
Storage Temperature-5-45℃
BMS Over Temperature Protection65±5℃
BMS Over Temperature Protection Recovery55±5℃
Communication
CommunicationRS485


Compliance Specification
Certification/

Charging SOC curve

25.6V 61.2Ah 8S17P AGV Battery

Discharge SOC curve

25.6V 61.2Ah 8S17P AGV Battery

30A charging current curve

25.6V 61.2Ah 8S17P AGV Battery

40A discharge current curve

25.6V 61.2Ah 8S17P AGV Battery

Different DOD cycle life diagram(+1C/-0.5C@25℃)

25.6V 61.2Ah 8S17P AGV Battery

2D Drawing

2D Drawing
