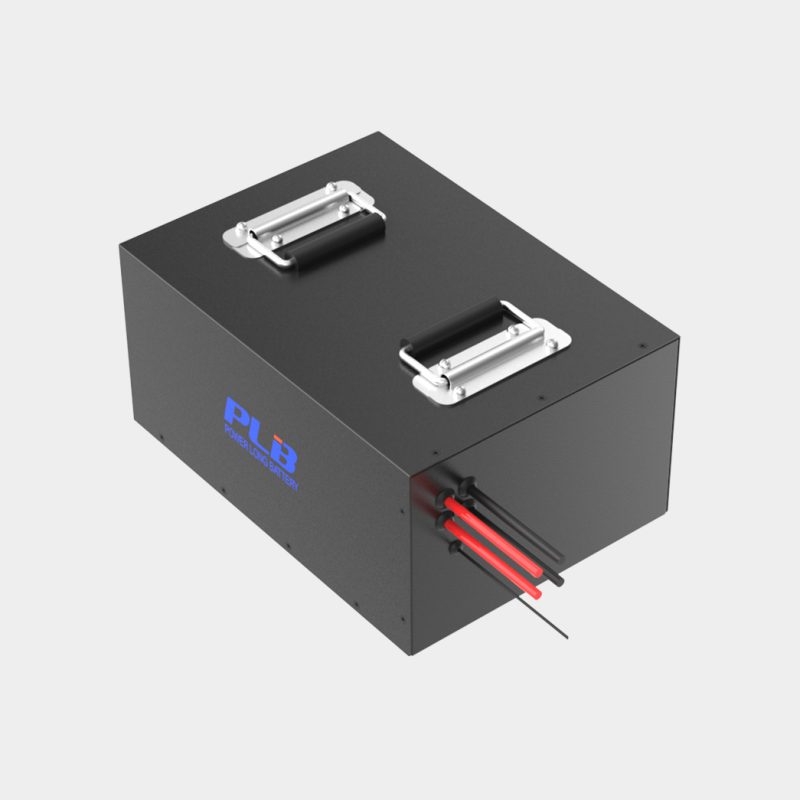

51.2V 29.7Ah 16S9P AGV Battery
  • 51.2V 29.7Ah 16S9P AGV Battery
  • 51.2V 29.7Ah 16S9P AGV Battery
  • 51.2V 29.7Ah 16S9P AGV Battery

Product Details

Electrical Specifications
standard51.2V
Nominal capacity29.7Ah
Wh1520.64Wh
Internal resistance75mΩ
self-dischargeper month <1%
Series and parallel/
Mechanical Specifications
Dimensions (L x W x H)350*245*150mm
weight16Kg
output terminallead
Outer box materialSPCC
waterproof levelIP45
Cell Type – Chemical26650 – LiFePO4
Discharge specification
Maximum continuous discharge current                                30A
Maximum instantaneous discharge current                                30A
BMS discharge protection current (overcurrent protection 1)                                50A
Bus undervoltage protection                                35.2V
bus recovery voltage                                48V
BMS over-discharge protection voltage                              35.2V
Short circuit protection                              ≤600uS
Charging Specifications

Recommended charging current

                                14.8A

Maximum charging current

                                30A

Recommended charging voltage

                                58.4V

BMS charging voltage cut-off

                                60V

Bus overvoltage protection

                                60V

bus recovery voltage

                                57.6V

Equalization turn-on voltage

                                54.4V
Temperature specification
Discharge temperature range-20-60℃
Charging temperature range0-45℃
Storage temperature-5-45℃
BMS high temperature cut off (over temperature protection)65±5℃
Reconnect temperature (overtemperature protection recovery)55±5℃
Communication method

communication method

RS485




Compliance Specification

Certification

/

Charging SCO graph

51.2V 29.7Ah 16S9P AGV Battery

Discharge SOC graph

51.2V 29.7Ah 16S9P AGV Battery

Maximum Charge Current Curve

51.2V 29.7Ah 16S9P AGV Battery

Maximum discharge current curve

51.2V 29.7Ah 16S9P AGV Battery

2D drawing of battery

51.2V 29.7Ah 16S9P AGV Battery

Different DOD cycle life diagram (1C charge, 0.5C discharge @ 25℃)

51.2V 29.7Ah 16S9P AGV Battery
