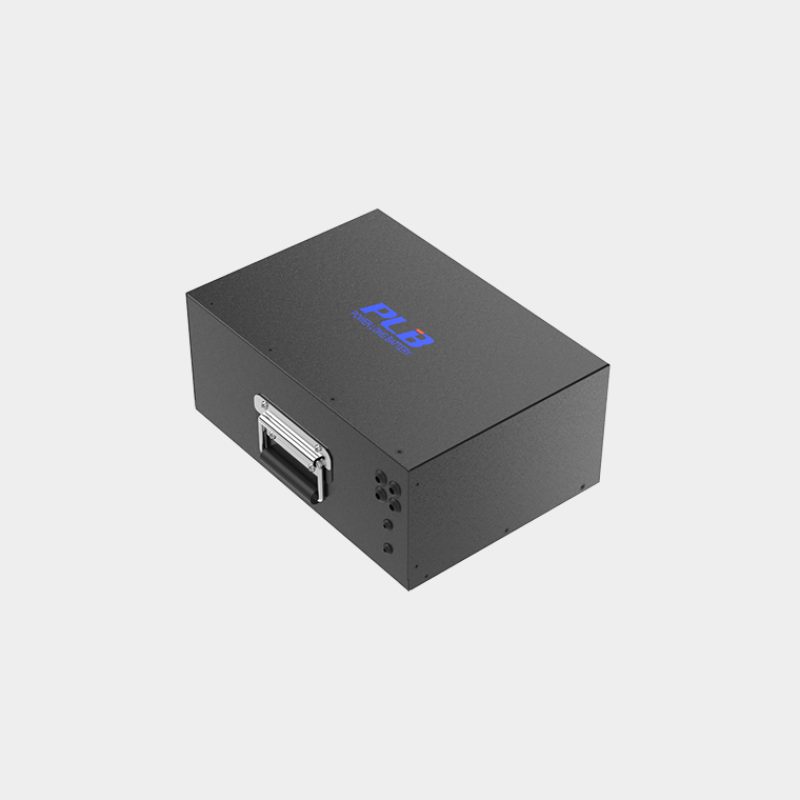

48V 36Ah 15S10P AGV Battery
  • 48V 36Ah 15S10P AGV Battery
Electrical Specifications
Nominal Voltage48V
Nominal Voltage36Ah
Energy1728Wh
Internal Resistance≤50mΩ
Self Discharge<1% Per Month
Series and Parallel/
Mechanical Specifications
Dimensions (L x W x H)350*280*150MM
Weight20.4kg
TerminalAnderson SB120
Case MaterialSPCC
IP RatingIP42
Cells26650 – LiFePO4
Discharge Specification
Max Continuous Discharge Current60A
Max Instantaneous Discharge Current90A/3S
BMS Discharge Protection Current100A
Overdischarge Protection Voltage40.5V
Overdischarge Recovery Voltage45V
Short Circuit Protection≤600uS
Charge Specifications
Charge Current18A
Max Charge Current36A
Charge Voltage54.75V
Overcharge Protection Voltage56.25V
Overcharge Recovery Voltage54V
Equalization Turn-on Voltage51V
Temperature Specification
Discharge Temperature-20-60℃
Charge Temperature0-45℃
Storage Temperature-5-45℃
BMS Over Temperature Protection65±5℃
BMS Over Temperature Protection Recovery55±5℃
Communication
CommunicationRS485


Compliance Specification
Certification/

Charging SOC curve

48V 36Ah 15S10P AGV Battery

Discharge SOC curve

48V 36Ah 15S10P AGV Battery

30A charging current curve

48V 36Ah 15S10P AGV Battery

40A discharge current curve

48V 36Ah 15S10P AGV Battery

Different DOD cycle life diagram(+1C/-0.5C@25℃)

48V 36Ah 15S10P AGV Battery

2D Drawing

2D Drawing
